Sensorio LZR -U901 User Manual

Measurement device based on laser technology

Advertisement

Quick Links

DESCRIPTION
Tilt angle
adjustments
Adjustable bracket
Cable conduit
SAFETY INSTRUCTIONS
The device contains IR and visible red laser diodes.
IR laser (CLASS 1):
Caution! Use of controls, adjustments or performance of
procedures other than those specified herein may result in
hazardous radiation exposure.
*Other use of the device is outside the permitted purpose and can not be guaranteed by the manufacturer.
MEASUREMENT DEVICE BASED ON LASER TECHNOLOGY*
Front screens
Main
connector
wavelength 905nm
max. output pulse power 75W
Do not stare into the
Do not open the sensor.
laser emitter.
Warranty is void if
opened.
®
LZR -U901
USER'S GUIDE
Laser sweep
emission
Laser sweep
reception
LED-signal
BLUE LED
ORANGE LED
POWER ON
ERROR
The sensor should only
be installed and
adjusted by authorized
and trained staff.

Advertisement

loading
Need help?

Need help?

Do you have a question about the LZR -U901 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sensorio LZR -U901

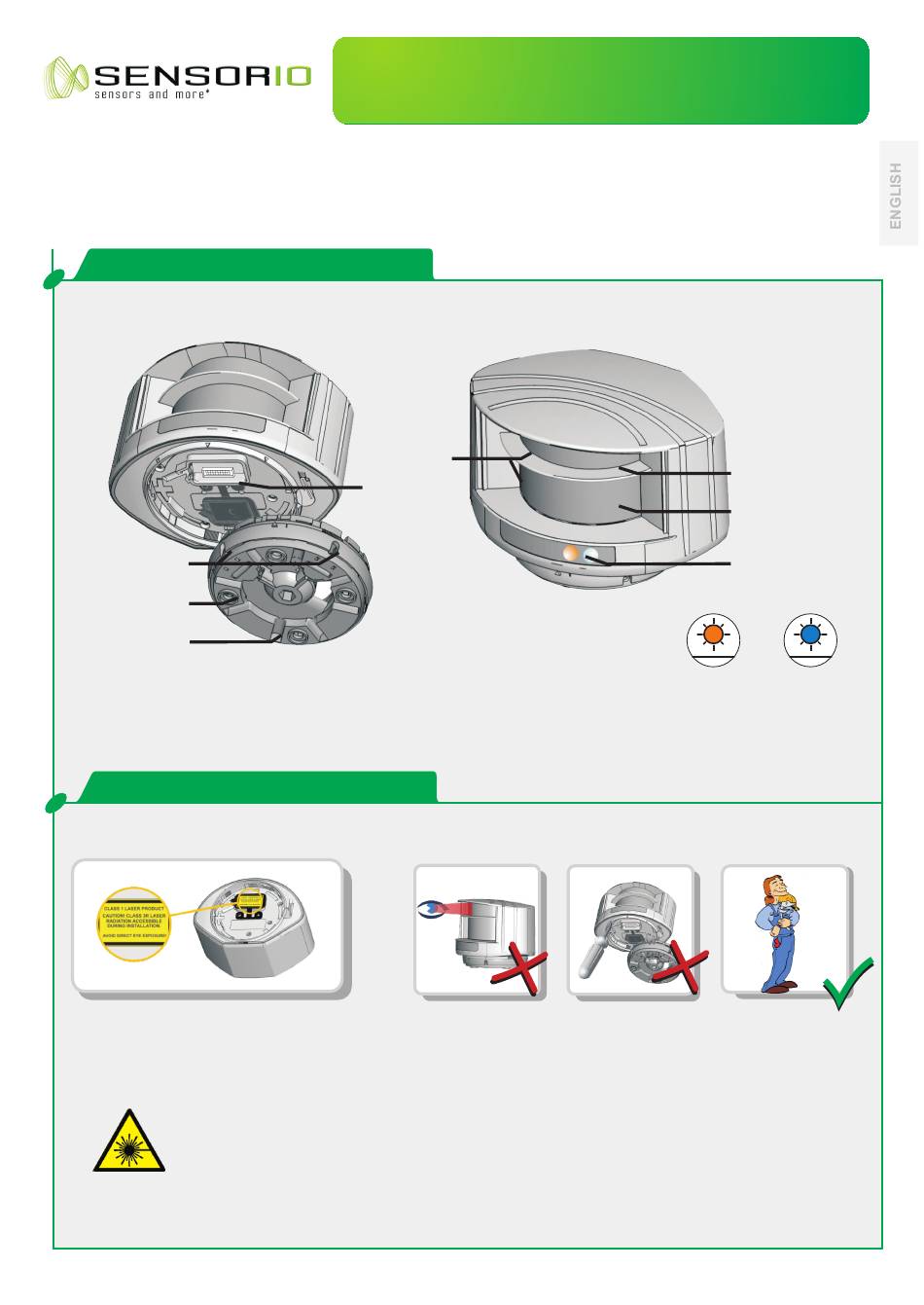

  • Page 1 ® LZR -U901 USER’S GUIDE MEASUREMENT DEVICE BASED ON LASER TECHNOLOGY* DESCRIPTION Front screens Laser sweep emission Main connector Laser sweep reception Tilt angle LED-signal adjustments Adjustable bracket Cable conduit BLUE LED ORANGE LED POWER ON ERROR SAFETY INSTRUCTIONS The device contains IR and visible red laser diodes.
  • Page 2 INSTALLATION TIPS Fasten the sensor Do not cover Do not use aggressive Wipe the front screens Avoid moving objects in the front screens. firmly to avoid vibrations. regularly with a clean and detergents or abrasive the detection field. damp cloth. cleaning agents to clean the front screens.
  • Page 3 WIRING GREEN +24 V DC BROWN GND PWR WHITE YELLOW RS485B GREY RS485A CORRECT POSITIONING Adjust the lateral position. Adjust the tilt angle of the Lock the position of the sensor. bracket to avoid malfunctioning. To unlock, use a screwdriver. TROUBLESHOOTING POSSIBLE CAUSES SYMPTOMS...
  • Page 4 * see application note LZR-U90X Protocol (request by mail, phone or download on the internet) ® BEA hereby declares that the LZR -U901 is in conformity with the basic requirements and the other relevant provisions of the standard 2004/108/EC. Jean-Pierre Valkenberg, R&D Manager (...
