Sensorio LZR-RS300 User Manual

Safety sensor for external railway doors

Advertisement

Quick Links

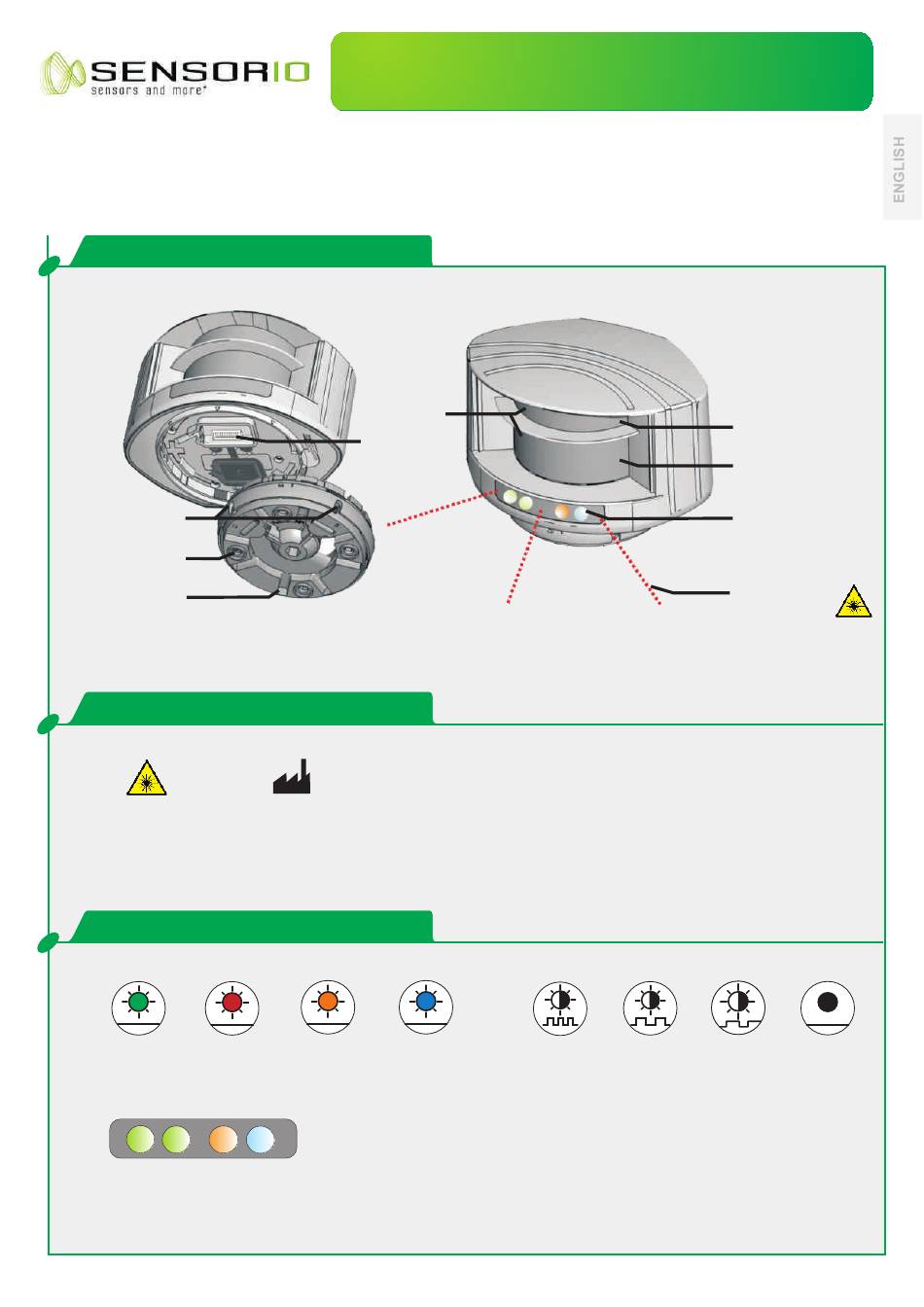

DESCRIPTION

Tilt angle
Adjustable bracket
Cable conduit

USED SYMBOLS

Caution! Exposure
to laser radiation.
LED-SIGNAL
GREEN LED
RED LED
NO
DETECTION
DETECTION
3
1
2
*Other use of the device is outside the permitted purpose and can not be guaranteed by the manufacturer.
SAFETY SENSOR FOR EXTERNAL RAILWAY DOORS*
Front screens
Main
connector
Factory values
ORANGE LED
BLUE LED
ERROR
POWER ON
1. Relay 1 - Field 1
4
2. Relay 2 - Field 2
3. Error
4. Power
LZR -RS300
USER'S GUIDE
LED
LED
FLASHES
FLASHES
QUICKLY
NORMALLY
®
Laser sweep
emission
Laser sweep
reception
LED-signal
Visible
laser beams
LED
LED
FLASHES
OFF
SLOWLY

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LZR-RS300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sensorio LZR-RS300

  • Page 1 ® LZR -RS300 USER’S GUIDE SAFETY SENSOR FOR EXTERNAL RAILWAY DOORS* DESCRIPTION Front screens Laser sweep emission Main connector Laser sweep reception Tilt angle LED-signal adjustments Adjustable bracket Cable conduit Visible laser beams USED SYMBOLS Caution! Exposure Factory values to laser radiation. LED-SIGNAL GREEN LED RED LED...
  • Page 2 SAFETY INSTRUCTIONS The device contains IR and visible red laser diodes. Caution! Use of controls, adjustments or performance of IR laser (CLASS 1): wavelength 905nm procedures other than those max. output pulse power 75W specified herein may result in Red laser (CLASS 3R): wavelength 650nm hazardous radiation exposure.
  • Page 3 MOUNTING Make a hole for the cable Use the adhesive mounting Drill 4 holes as indicated on the if possible. mounting template. template to position the sensor correctly. The grey area indicates the detection range. Position the bracket and Pass the cable at least 8-10 cm Plug the connector and fasten the 4 screws firmly in though the cable opening.
  • Page 4 REMOTE CONTROL CORRECT POSITIONING Adjust the lateral position. Adjust the tilt angle of the Lock the position of the sensor. bracket to avoid Activate the visible laser beams if malfunctioning. you need a visual aid. To unlock, use a screwdriver. The beams will stay activated for 15 minutes or can be turned off the same way.
  • Page 5 REMOTE CONTROL REMOTE CONTROL ADJUSTMENTS Field height Field width Field 1 = Field 2 No field 05-50 0.5 m - 5.0 m 05-50 0.5 m - 5.0 m Field height Field width No field 05-50 0.5 m - 5.0 m 05-50 0.5 m - 5.0 m 5.0 m...
  • Page 6 REMOTE CONTROL HOW TO USE How to enter a remote control session? Enter code 1-4 digits 30 minutes after power reset, the After unlocking the red If the red LED flashes quickly after unlocking the sensor, sensor locks the access to the LED flashes and the enter an access code.
  • Page 7 TROUBLESHOOTING SYMPTOMS POSSIBLE CAUSES CORRECTIVE ACTION No blue LED Check cable and connexion. There is no power. BLUE Only the BLUE LED is Check wiring. The monitoring input is not The RED and BLUE cable have to be connected. connected to the monitoring input. BLUE The detection field is too small.
  • Page 8 The complete declaration of conformity is available on our website: www.bea.be SENSORIO - A DIVISION OF BEA SA | LIEGE Science Park | ALLÉE DES NOISETIERS 5 - 4031 ANGLEUR [BELGIUM] T +32 4 361 65 65 | F +32 4 361 28 58 | INFO@SENSORIO.BE | WWW.SENSORIO.BE - WWW.BEA.BE...
