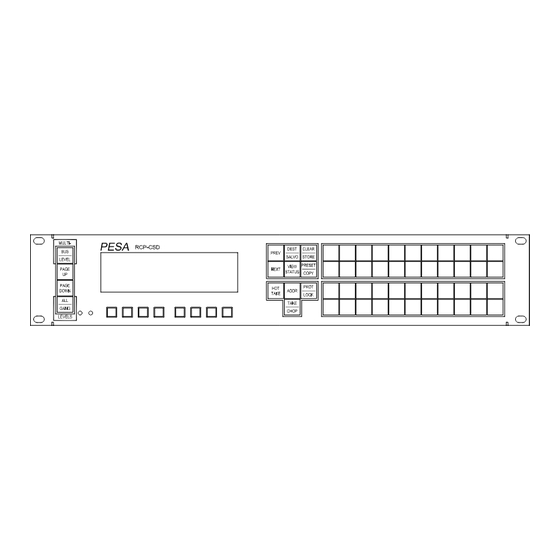

- Page 1 RCP-CSD Remote Control Panel Complete Status Display PESA Switching Systems, Inc. 103 Quality Circle, Suite 210 Huntsville, AL 35806 http://www.pesa.com (256) 726-9200 Part No. 81-9059-0436-0 Revision D...
- Page 2 PESA Switching Systems, Inc. This includes text, illustrations, tables and charts. All information, illustrations and specifications contained in this publication are based on the latest product information available at the time of publication approval.
- Page 3 RCP-CSD FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 4 RCP-CSD...
-
Page 5: Table Of Contents
RCP-CSD Table of Contents CHAPTER 1 – INTRODUCTION........................1 General ................................1 Safety Warnings ............................... 1 Product Description ............................1 Specifications ..............................2 Power Adapters ............................2 U.S.A..................................2 U.K.................................... 2 Continental Europe..............................2 Physical Characteristics ..........................2 Operational Environment..........................2 CHAPTER 2 –... - Page 6 Assign Source to Soft Source Key ........................ 30 Assign Destination to Soft Destination Key....................31 CHAPTER 4 – MAINTENANCE AND REPAIR ................... 33 Periodic Maintenance ............................. 33 PESA Customer Service ..........................33 Repair ................................33 Replacement Parts............................33 Factory Service............................33 GLOSSARY ..............................
- Page 7 RCP-CSD Level ................................43 Level Order ..............................43 Levels of Control List............................. 43 Local Modem ..............................43 Lock................................44 Lock Priority ..............................44 Logical Input..............................44 Logical Output ............................... 45 Logical Switch ............................... 45 Matrix Breakup .............................. 45 Matrix Space ..............................45 NTSC................................
- Page 8 RCP-CSD Tieline................................56 User Account..............................57 User Name ..............................57 User Password..............................57 Vertical Interval.............................. 57 Vertical Sync Signal ............................57 Vertical Trigger .............................. 57 Video Timing Field ............................58 Video Timing Frame ............................58 Working Directory............................58 Figures FIGURE 1. REAR VIEW............................. 4 FIGURE 2.
-
Page 9: Chapter 1 - Introduction
Notes add emphasis to information that is important for the correct installation, operation, or maintenance of the equipment. Product Description The PESA RCP-CSD is a rack-mounted remote control panel designed to operate with PESA routing switchers, system controllers, and control system software. Chapter 1 – Introduction... -
Page 10: Specifications
RCP-CSD Specifications Power Adapters U.S.A. Input ................120VAC, 60Hz, 17.5VA Output ....................9VDC, 1A U.K. Input ................240VAC, 50Hz, 17.5VA Output ....................9VDC, 1A Continental Europe Input ................230VAC, 50Hz, 85mA Output ....................9VDC, 1A Physical Characteristics Height................3.5 Inches, 2RU (89mm) Width................... -
Page 11: Chapter 2 - Installation
Chapter 2 – Installation Shipping Damage Inspection Immediately upon receipt, all shipping containers should be inspected for damage caused in transit. If any damage is noted, save all packing material and contact both PESA and the carrier as soon as possible. Unpacking CAUTION This equipment contains static sensitive devices. -
Page 12: Installation In Equipment Rack
RCP-CSD Installation in Equipment Rack This equipment is designed to be installed in a standard 19-inch equipment rack. Sufficient space must be provided behind the equipment racks to allow for control and power cables. All panel mounting holes should be utilized and mounting hardware tightened securely. -
Page 13: Rs-485 Serial Communication Connector (Control Port)
Protocol (Document No. 81-9062-0300-0). See Figure 2 for an orientation view showing contact locations. CONTROL PORT is connected to a PESA system controller with a cable constructed with a 3-contact connector (Part No. 81-9029-0780-0) and shielded, twisted-pair audio cable (Part No. 81-9028-0043-2, Belden 8451, or equivalent) as shown in Figure 3. -
Page 14: Power Connector
RCP-CSD Power Connector This coaxial connector provides the input power interface. See Figure 4 for an orientation view showing contact locations. POWER IN is connected to the external power adapter provided with the remote control panel. The power adapter has an integral cable assembly with a push-on coaxial connector. -
Page 15: Switch And Jumper Settings
RCP-CSD Switch and Jumper Settings Panel Address DIP Switch This 10-position DIP switch is used to set the unique panel address required by every remote control panel in a switching system. See Figure 5 for an orientation showing switch locations. - Page 16 RCP-CSD Chapter 2 – Installation...
-
Page 17: Chapter 3 - Operation
• Internal Software Release Date RS-485 Bus Connection After connecting power to the RCP-CSD, connect the RS-485 bus cable. If the system controller is active, the RCP-CSD will become operational and enter Multi-Level Mode. LCD Display Controls In the lower right corner of the panel are access holes for two recessed potentiometers. These are used to control the LCD panel display: •... -
Page 18: Front Panel Keys
RCP-CSD Front Panel Keys This remote control panel is operated by pressing keys (pushbutton switches) located on the front panel. There are two types of keys, Legend Keys and Display Panel Keys. Legend Keys Legend Keys have square caps which contain replaceable legends. Each key contains an LED with two light output levels. -
Page 19: Control Keys
RCP-CSD • Dual Function Interlocked On-Off + Momentary On – Press the key and release to enable the primary function, press and release again to disable the primary function. Press the key and hold for approximately one second to enable the secondary function. The secondary function will be disabled when the key is released. -
Page 20: Data Keys
RCP-CSD Data Keys A Data Key is a Legend Key whose function is determined by the user. The assignment of functions to Data Keys is part of the system configuration performed with the control system software (e.g. Win3500Plus). For more information, see the documentation accompanying your control system software. -
Page 21: Display Panel Keys
Display Panel Keys The RCP-CSD has one row of eight small keys, without legends, located under the LCD display. These special Data keys are assigned Data key numbers 45 through 188, and may only be configured as one of the following types: •... -
Page 22: Lcd Panel Layout
RCP-CSD LCD Panel Layout The LCD panel displays information in fields as shown in Figure 6. 1. Selection Legend Field – This field is the legend for the one to its right, and describes the type of information to be found there. It will contain one of the following: •... -
Page 23: Multi-Level Mode
RCP-CSD Multi-Level Mode In Multi-Level mode, a user works with one destination at a time. For the selected destination, status may be viewed on all system levels, and both follow and breakaway switches may be taken. Entering Multi-Level Mode This is the default mode that the panel enters when power is applied. -
Page 24: Multi-Level Destination Select Mode
RCP-CSD Multi-Level Destination Select Mode Entering Multi-Level Destination Select mode allows the user to select a destination. When in Multi-Level Destination Select mode: • The MULTI-BUS / MULTI-LEVEL key LED will be flashing. • The DEST / SALVO key LED will be on. -
Page 25: Multi-Level Mode - Follow Switch
RCP-CSD NOTE Destinations may also be selected by temporarily entering Multi-Bus mode as follows: • While in Multi-Level mode, press MULTI-BUS / MULTI-LEVEL to enter Multi-Bus mode. • Press PAGE UP and PAGE DOWN to scroll through the destinations assigned to Data Keys 45 through 188. When... -
Page 26: Multi-Level Mode - Breakaway Switch
RCP-CSD Multi-Level Mode – Breakaway Switch To perform a breakaway switch in Multi-Level mode, first a destination is selected, next the sources are selected on a level-by-level basis, finally the switch is taken on all levels at the same time. -
Page 27: Multi-Level Mode - Destination Lock / Protect
RCP-CSD Multi-Level Mode – Destination Lock / Protect To prevent inadvertent switching, destinations may be locked or protected. • Lock: A property placed on a destination that prevents all panels and ports from taking a switch on that destination, including the panel or port that locked it. -
Page 28: Multi-Bus Mode
RCP-CSD Multi-Bus Mode In basic Multi-Bus mode, a user may take follow switches on a single destination. In Multi-Bus Gang mode, follow switches may be taken on multiple destinations at the same time. Entering Multi-Bus Mode To enter Multi-Bus mode from any other mode, press the MULTI-BUS / MULTI-LEVEL key one or more times until appears in the Mode field. - Page 29 RCP-CSD Order Number than the default status level, until a source is found. The name of this source will be displayed. When a pound sign (#) is displayed to the right of the status, this indicates that something different is occurring on a level other than that shown.
-
Page 30: Multi-Bus Destination Select Mode
RCP-CSD Multi-Bus Destination Select Mode Entering Multi-Bus Destination Select mode allows the user to select a destination. When in Multi-Bus Destination Select mode: • The MULTI-BUS / MULTI-LEVEL key LED will be on. • The DEST / SALVO key LED will be on. -
Page 31: Multi-Bus Source Copy
RCP-CSD NOTE Pressing PREV and NEXT will scroll through all of the destinations in the Destination Include list, and display them in the Selection field. However, only destinations which appear in a Data field pair (those assigned to Data keys 45 through 188) may be selected. -
Page 32: Multi-Bus Mode - Follow Switch
RCP-CSD Multi-Bus Mode – Follow Switch To perform a follow switch in Multi-Bus mode, first a destination is selected, then a source is selected, then the switch is taken on all levels. When in Multi-Bus mode, the display will show in the Mode field as shown in Figure 11. -
Page 33: Multi-Bus Gang Mode - Follow Switch
RCP-CSD Multi-Bus Gang Mode – Follow Switch Multi-bus Gang mode allows follow switches to be taken on multiple destinations at the same time. To perform a follow switch in Multi-Bus Gang mode, first the destinations are selected, then a source is selected, then the switch is taken on all levels. -
Page 34: Salvo Execution
RCP-CSD Salvo Execution Salvos are executed in one of two ways: • By scrolling through the salvo list to select a salvo, and then executing it. • By pressing a Data key configured as a Salvo key. This will immediately execute the salvo. -
Page 35: Multi-Bus Mode - Destination Lock / Protect
RCP-CSD Multi-Bus Mode – Destination Lock / Protect To prevent inadvertent switching, destinations may be locked or protected. • Lock: A property placed on a destination that prevents all panels and ports from taking a switch on that destination, including the panel or port that locked it. -
Page 36: Hot Take Mode
RCP-CSD Hot Take Mode Hot Take Mode – Follow Switch In Hot Take mode, a source is selected first, then a destination is selected. The switch is taken immediately on all levels when the destination is selected. When in Hot Take mode, the display will show in the Mode field as shown in Figure 14. -
Page 37: Miscellaneous Functions
RCP-CSD Miscellaneous Functions Readback and Confidence Error Display In both Multi-Level and Multi-Bus modes, status errors will be displayed as for readback READBACK errors and for confidence errors, in the bottom field of a data field pair as shown in Figure 15. -
Page 38: Assign Source To Soft Source Key
RCP-CSD Assign Source to Soft Source Key The control system software (e.g. Win3500Plus) may be used to designate certain Data keys as Soft Source keys. A source is assigned to a Soft Source key as follows: 1. Press PRESET to enter Multi-Level Preset Select mode. -
Page 39: Assign Destination To Soft Destination Key
RCP-CSD Assign Destination to Soft Destination Key The control system software (e.g. Win3500Plus) may be used to designate certain Data keys as Soft Destination keys. A destination is assigned to a Soft Destination key as follows: 1. Press MULTI-BUS / MULTI-LEVEL until the panel is in Multi-Bus mode. - Page 40 RCP-CSD Chapter 3 – Operation...
-
Page 41: Chapter 4 - Maintenance And Repair
This equipment does not require any periodic maintenance. PESA Customer Service If this equipment is not operating properly, please contact the PESA Customer Service Department. Skilled technicians are available to assist you 24 hours per day, seven days per week. - Page 42 RCP-CSD Chapter 4 – Maintenance and Repair...
-
Page 43: Glossary
RCP-CSD Glossary (Revised: 05-02-00) All Call A diagnostic procedure that causes a single physical input to be switched to a range of physical outputs, for a specified component, with a single command. Example: Assume the existence of a component RED which spans physical inputs 1 through 8 and physical outputs 1 through 8 on a routing switcher. -
Page 44: Block
RCP-CSD Block A group of contiguous crosspoints in a routing switcher which form the smallest unit on which confidence is checked. Because of the nature of the circuits involved, individual crosspoints cannot be checked to see if they are operating correctly. Instead, the control circuitry shared by groups of crosspoints is monitored. -
Page 45: Chop Rate
RCP-CSD Chop Rate The parameter used to control the switching rate when chopping two signals. The signal switching rate is determined as follows: Video Frame Rate (Frames/Se cond) Signal Switching Rate (Switches/ Second) Chop Rate For example, a chop rate of 1 used with NTSC signals (30 Frames/Second) will cause the signals to be switched 30 times per second. -
Page 46: Confidence
RCP-CSD Confidence A property of a block, that indicates whether or not the circuitry controlling the crosspoints in the block, is functioning correctly. When block checking determines that a block is not functioning correctly, the block, and all crosspoints contained in it, are said to have confidence errors. -
Page 47: Data Key List
RCP-CSD Data Key List A named list of the functions assigned to each data key on a panel. Multiple panels may share a data key list as long as they are the same type of panel. Different panel types may not use the same data key list. -
Page 48: Diagonal
RCP-CSD Diagonal A diagnostic procedure that causes a range of physical inputs to be switched to a range of physical outputs, in a diagonal pattern starting from a specified coordinate and continuing until the either the inputs or outputs are exhausted, for a specified component, with a single command. -
Page 49: Index
RCP-CSD Index The last portion of a source, destination, or reentry name. Indices provide an easy means of differentiating similar switching system devices. Each source, destination or reentry name may use 0, 1 or 2 indices. If no index is used, “00” is the default but is not displayed. - Page 50 RCP-CSD Figure B Glossary...
-
Page 51: Level
RCP-CSD Level A group of related components that are switched together. A level is sometimes referred to as a level of control and is the basic granularity seen by a user. The components which comprise a level will always be switched together except when performing diagnostic operations. -
Page 52: Lock
RCP-CSD Lock A property placed on a destination that prevents all panels and ports from taking a switch on that destination, including the panel or port that locked it. Locks may be cleared by any panel or port that has the same requester code and lock priority as the panel that locked the destination, that has a higher lock priority, or that has a lock priority of 0 (zero). -
Page 53: Logical Output
RCP-CSD Logical Output See: Logical Input. Logical Switch The Win3500Plus command that switches a logical input to a logical output. See also: Physical Switch. Matrix Breakup The division of a single physical matrix into one or more components. Matrix breakup allows complex signal types to reside within a single physical matrix. For example, a video matrix is often broken into R, G, and B components. -
Page 54: Ntsc
RCP-CSD Figure B Strobe numbers are used to introduce a third dimension into matrix space. Every routing switcher in a switching system is assigned to a strobe. In systems using more than one strobe (and, therefore having three-dimensional matrix space), crosspoint coordinates are given in the form (input,output) on strobe x. -
Page 55: Output Offset
RCP-CSD Output Offset In matrix space, the amount by which the origin of a component on strobe x, is offset from the origin of strobe x, measured along the output axis. The coordinates of crosspoints in matrix space are determined by the strobe they reside on, and their input and output numbers. -
Page 56: Pal
RCP-CSD Figure B Phase Alternating Line, the dominant television standard in Europe. The United States uses a different standard, NTSC. Whereas NTSC delivers 525 lines of resolution at 60 half-frames per second, PAL delivers 625 lines at 50 half-frames per second. -
Page 57: Password
RCP-CSD Password Each User Account and Configuration may be protected with eight-character, upper case, alphanumeric passwords. The Personal Computer on which Win3500Plus is running. Win3500Plus is designed to operate on any IBM PC compatible personal computer running a Microsoft Windows™ operating system (3.1, 95, 98, or NT). -
Page 58: Port
The first character must be a letter. Port names are optional because a port is identified by its address. PRC Device A device designed to be compatible with the PESA Routing Control (PRC) protocol. The Ocelot, Cougar, Jaguar, and Tiger routing switcher families are PRC devices. See also: RM5 Device. -
Page 59: Reentry
The only modems tested by PESA for use as remote modems are the Practical Peripherals PM288MT II and the U.S. Robotics Sportster 28.8 using the following initialization strings: PM288MT II: AT S0=2 Q1 X4 &C1 &D0 &K3 &S1 &W0 &Y0... -
Page 60: Requester Code
RCP-CSD Requester Code A property of panels and ports which allows them to be grouped with other panels or ports for the purpose of establishing lock and protect authority. Panel requester codes not explicitly defined automatically default to the panel address. -
Page 61: Salvo Include List
RCP-CSD Salvo Include List A named list of the salvos a specific control panel is authorized to control. A salvo include list may be shared by multiple panels. Salvo include list names are one to eight characters in length and are constructed using uppercase letters, numbers, and spaces. -
Page 62: Soft Key
RCP-CSD Soft Key A special type of data key whose assigned function may be changed locally by a panel user. Win3500Plus is used to designate a data key as either a soft source key or a soft destination key. The assignment of a specific source or destination to the soft key may then be made with either Win3500Plus, or locally at the panel by using Store Mode. -
Page 63: Status Level
RCP-CSD Status Level The default level to be used when displaying the status of a destination receiving signals from multiple sources, on a panel in all levels mode (ALL LEVS). One function of the LCD display on a panel is to show which source is currently switched to a selected destination. -
Page 64: System 5 Device
RCP-CSD System 5 Device See: RM5 Device. Tieline A special type of logical switch that allows a logical input on one level to be switched to a logical output on a different level. Example 1 - Switch a signal from analog camera ANCAM into an analog-to-digital converter... -
Page 65: User Account
RCP-CSD Figure B Tieline names are one to eight characters in length and are constructed using uppercase letters, numbers, and spaces. The first character must be a letter. User Account A set of privileges and an optional user password saved as a user name. -
Page 66: Video Timing Field
RCP-CSD Video Timing Field A package of information that contains information required to complete a full scan across a video monitor. There are two types of video fields denoted as odd and even. Video Timing Frame A package of information that contains all the information required to draw an image on a video device. - Page 67 RCP-CSD Revision History Rev. Date Description 05-02-00 Initial release per ECO-3636. G. Tarlton Incorporated Declaration of Conformity per ECO-3462. 03-05-01 Deleted Printing Specification per ECO CE00113. G. Tarlton 03-16-01 Deleted bills of material, drawings, and schematics per G. Tarlton ECO CE00130.
