NOTE!!!
TIPS ON CONNECTING YOUR RADIO GEAR AND SOME
ADDITIONAL INFORMATION:

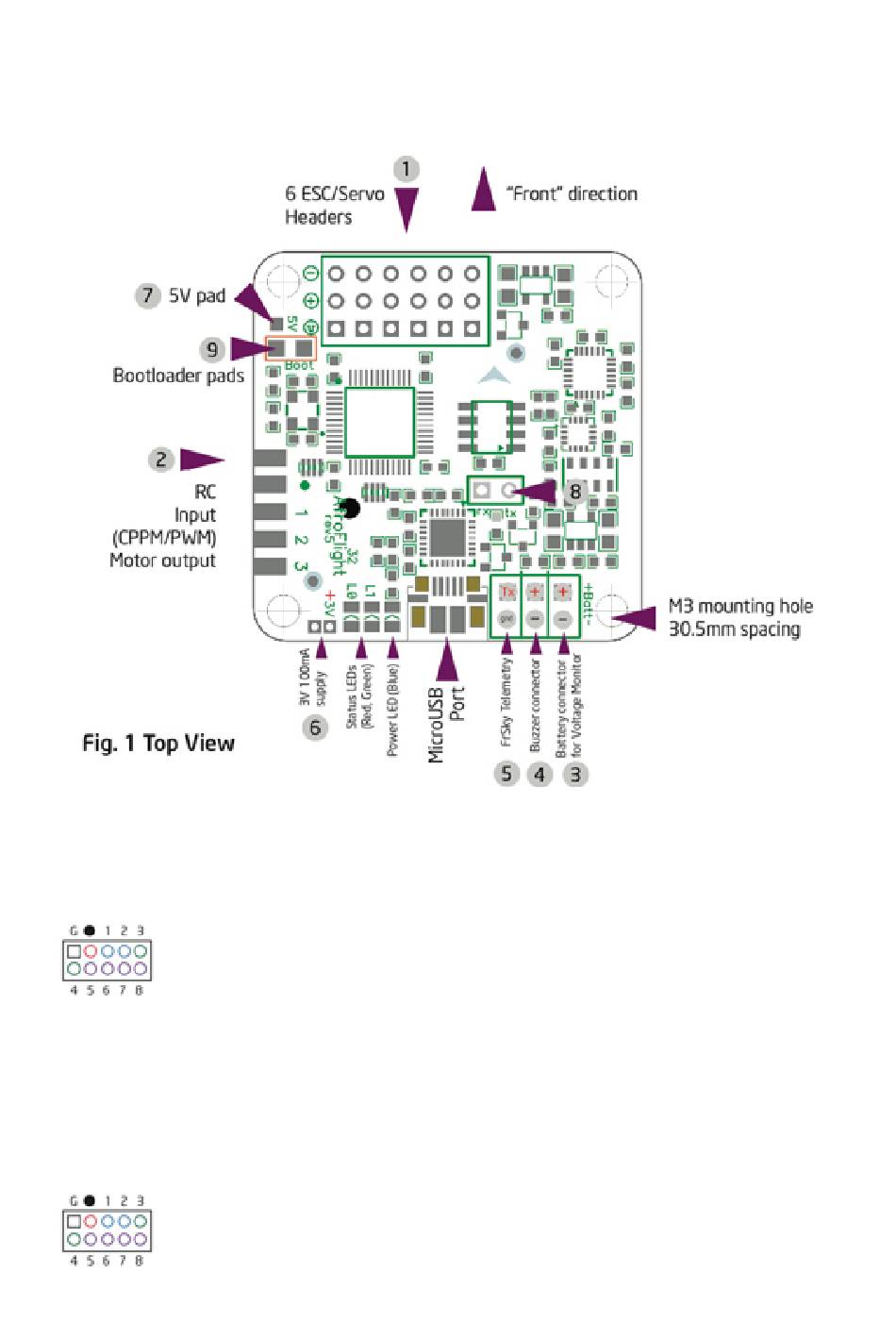

BOARD TOP VIEW
WARNING!!! ALL SETUP PROCEDURES SHOULD BE DONE
WITHOUT
PROPELLERS INSTALLED!!!
RECEIVER CONNECTIONS:
With the connector facing out, the pins are used as follows. Unmarked pin
(left-most top side) is ground, pin marked with dot is 5V supply, the rest are
RC signal pins for CPPM (channel 1) or channels 1 through 8.
Standard female to female servo cable can be used to connect a CPPM receiver. Default channel order is
AIL, ELE, THR, RUD, AUX1..AUX4. A breakout cable is provided for connection to standard receiver.
STANDARD(PCM) RECEIVER:
Connect AIL to 1, ELE to 2, THR to 5, RUD to 6, and AUX1/2 to channels 7 and 8.
FUTABA SBUS RECEIVER
Connect SIGNAL INVERTER (GROUND to G pin, +5v to pin marked «•» and SIGNAL to pin 4(bottom row)
Advertisement
Related Manuals for Abusemark NAZE32
Summary of Contents for Abusemark NAZE32
- Page 1 NOTE!!! TIPS ON CONNECTING YOUR RADIO GEAR AND SOME ADDITIONAL INFORMATION: BOARD TOP VIEW WARNING!!! ALL SETUP PROCEDURES SHOULD BE DONE WITHOUT PROPELLERS INSTALLED!!! RECEIVER CONNECTIONS: With the connector facing out, the pins are used as follows. Unmarked pin (left-most top side) is ground, pin marked with dot is 5V supply, the rest are RC signal pins for CPPM (channel 1) or channels 1 through 8.
- Page 2 • Final step is to go to CLI tab and type "set spektrum_sat_bind = 0" and then type "save". This must be done so that satellite doesn't go back to binding mode when Naze32 is repowered again. Gaupner SUMD: Simply connect SumD, wires ground to Gpin, power to +5v marked as «•»...
- Page 3 You can enable PPM in the Naze32 by entering the following in the CLI menu of baseflight app, type «feature ppm» press enter, then type «exit», go to receiver menu of the app,...
- Page 4 YOUR YAW, AIL, AND ELEV ENDPOINTS IN YOUR TX AND ALO BY INCREASING YOUR AIL/ELEV AND YAW RATE IN PID PAGE OF BASEFLIGHT SOFTWARE NAZE32 MANUAL: http://www.abusemark.com/downloads/naze32_rev3.pdf OTHER USEFUL LINKS: http://www.rcgroups.com/forums/showthread.php? t=1653753 https://github.com/multiwii/baseflight/wiki/SerialRX--like-SpekSat,-Futaba-SBUS,- Graupner-SUMD ALL OTHER ADDITIONAL INFORMATION AND MANUAL UPDATES YOU CAN...
