Elan IRS8EP Manual

STATUS Brightness
Fig. 3 also shows how an external resistor can be added to reduce the
brightness of the Status LEDs on ELAN IR sensors. In this example, a
PWR2 12VDC Power Supply is used as the voltage source to indicate
ON/OFF status of an A/V Receiver. Choose a resistor value that achieves
the brightness you desire (about 2.2k to 12k, 1/8W). Connect it in series
with the STATUS lead on each IR sensor, as shown.

Limited Warranty

ELAN HOME SYSTEMS, L.L.C (ELAN) warrants this product to be free from defects
in materials and workmanship for five (5) years from date of purchase. If within the
warranty period purchaser discovers such item was not as warranted above and
promptly notifies ELAN in writing, ELAN shall repair or replace the items at the com-
pany's option. This warranty shall not apply (a) to equipment not manufactured by
ELAN, (b) to equipment which shall have been installed by other than an authorized
ELAN installer, (c) to installed equipment which is not installed to ELAN's specifica-
tions, (d) to equipment which shall have been repaired or altered by others than
ELAN, (e) to equipment which shall have been subjected to negligence, accident, or
damage by circumstances beyond ELAN's control, including, but not limited to,
lightning, flood, ,electrical surge, tornado, earthquake, or any other catastrophic
events beyond ELAN's control, or to improper operation, maintenance or storage, or
to other than normal use of service. With respect to equipment sold by, but not
manufactured by ELAN, the warranty obligations of ELAN shall in all respects con-
form and be limited to the warranty actually extended to ELAN by its supplier. The
foregoing warranties do not cover reimbursement for labor, transportation, removal,
installation, or other expenses which may be incurred in connection with repair or
replacement.
Except as may be expressly provided and authorized in writing by ELAN, ELAN
shall not be subject to any other obligations or liabilities whatsoever with respect to
equipment manufactured by ELAN or services rendered by ELAN.
THE FORGOING WARRANTIES ARE EXCLUSIVE AND IN LIEU OF ALL OTHER
EXPRESSED AND IMPLIED WARRANTIES EXCEPT WARRANTIES OF TITLE,
INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE.
2428 Palumbo Dr.
Lexington, KY 40509
(859) 269-7760
www.elanhomesystems.com
©2005 ELAN Home Systems P/N 224379 X2
4
Introduction
The IRS8EP is designed to block the most severe Plasma, CFL, EMI, and
ESI noise sources using an exclusive intelligent circuit. In addition, the
Pick-Up Module of this 2-piece design allows mounting on flat surfaces
in very tiny spaces of furniture recesses, monitor panels, under shelves,
etc., using the adhesive strips supplied. The Main Module can either be
mounted on an exterior surface, so that the green STATUS and blue
Activity LEDs are visible, or mounted out of sight on an interior surface.
There are no IR pick-up devices in the Main Module. The IRS8EP fea-
tures bare leads to facilitate connection to terminal strips, IR distribution
blocks, etc.. The IRS7EP Extreme Plasma Surface-Mount IR Sensor
w/Plug is also available for connecting to devices requiring a Quad plug
connection such as ELAN's IRD4 Amplified Connection Block.
Note: The action of the circuit is such that an initial flicker of the blue Activity LED
will occur when CFL type lighting is first turned on. Also, occasional flickering may
occur in the presence of plasma interference during scene changes, etc. This is
normal operation and does not prevent IR commands from controlling system
components.
Placement Notes:
This IR sensor is very effective at blocking Plasma and other
types of noise from being passed through to controlled components. However,the
effective range of IR control will decrease as the intensity of such interference
increases. For best range performance, the Pick-Up Module should be oriented or
placed in such a way as to minimize the intensity of such interference. This may
mean placing the Pick-Up Module on a surface set back from the front surface of a
plasma TV panel, or keeping CFL or overhead electronically ballasted fluorescent
lights 3 feet or more distant.

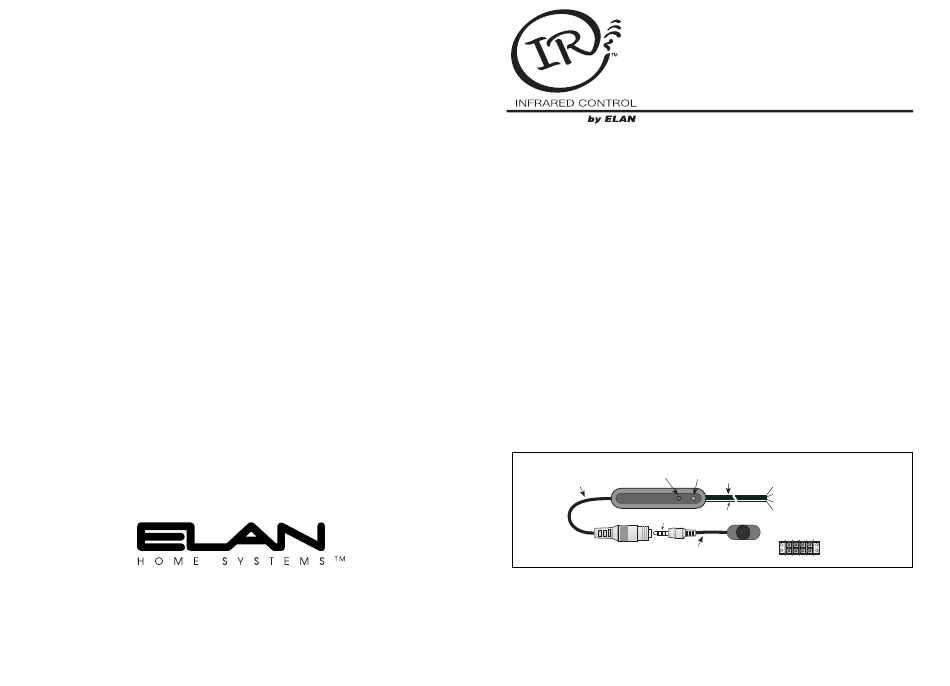

IRS8EP
Status LED Activity LED
(Green)
(Blue)
1' Lead
2.5mm Quad
Mini Connector
5' Lead
Features
• The IRS8EP comes with stripped ends plus a 4-conductor terminal strip allowing
interface connections to in-wall room-to-room wiring (refer to Fig.1).
• Plasma Blocking Circuit
• STATUS Indicator: Green LED for System On/Off indication
• ACTIVITY Indicator: Blue LED indicates IR signal activity
IRS8EP
Extreme Plasma
Surface-Mount
IR Sensor
w/Bare Leads
Fig. 1
6' Lead
+12VDC
GND
STATUS
IR OUT
Striped Side
4-Conductor
Terminal Strip
Plasma-Friendly
IR Sensor
1
