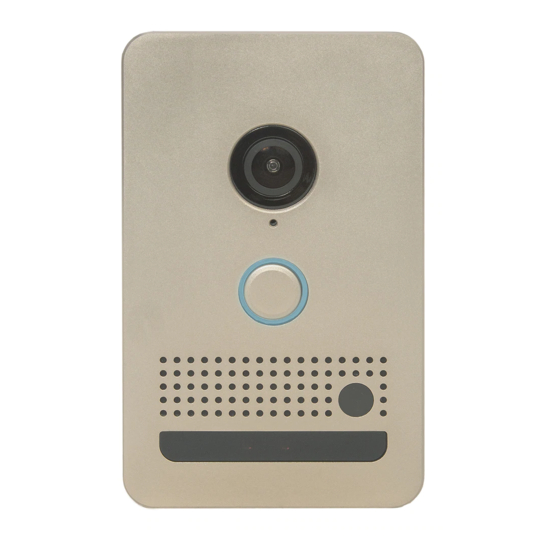

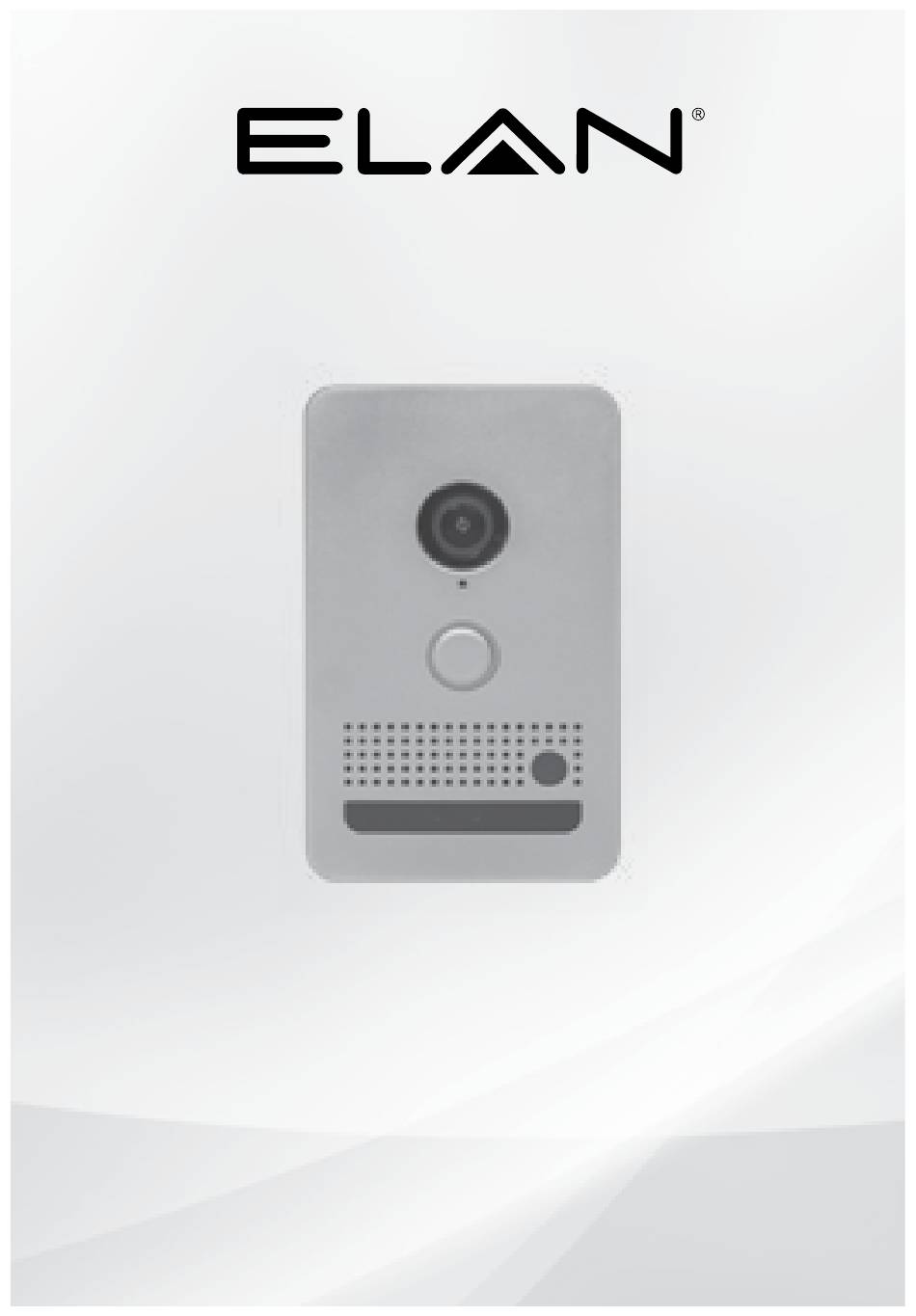

- Page 1 Intelligent Video Doorbell EL-DB-BR | EL-DB-BK | EL-DB-NI Quick Install Guide...
-
Page 2: Specifications
QUICK INSTALL GUIDE EL-DB IMPORTANT SAFETY INSTRUCTIONS Thank you for including the ELAN Video Doorbell as part of the ELAN video and interface solution for your customer. It has been designed to provide Read these instructions. years of trouble free operation when wired and installed properly. -
Page 3: Fcc And Ic Information
QUICK INSTALL GUIDE EL-DB OVERVIEW FCC AND IC INFORMATION: This Class B digital apparatus complies with Part 15 of the FCC rules and with Canadian ICES-003 FRONT Operation is subject to the following two conditions: This device may not cause interference and Camera Lens This device must accept any interference, including interference that may cause undesired operation of the device. -
Page 4: Planning The Installation
Rough-in The video doorbell mounts to the EL-DB-MB rough-in box using the included The ELAN Video Doorbell is primarily designed to be mounted in a portrait mounting bracket. If surface mounting, use the optional surface mount kit with- orientation. It can be mounted in a landscape orientation, but the image will need out the rough-in box. - Page 5 The video doorbell includes a relay to open a gate or electronic door strike that can be triggered via the ELAN system. The relay provides normally open and normally closed contacts to support fail safe or fail secure operation. Refer to your gate opener instructions for configuration information.
- Page 6 QUICK INSTALL GUIDE EL-DB d. Wiring e. Mounting – Rough-in Once the the rough-in bracket has been installed and connections are made, Wiring the video doorbell can me mounted. Fail-Secure Mounting hook holes 24V DC Access Connect the pigtail connector Fail-Safe to the network, power, relay, door sensor, or door chime as...
-
Page 7: Troubleshooting
QUICK INSTALL GUIDE EL-DB f. Mounting - Surface g. Ethernet Wiring The video doorbell can be surface mounted using the optional surface mount ELAN Video Doorbell Standard (TIA568B) box (sold separately in each color). White + Orange White + Orange... - Page 8 From here, the unit can be reset to DHCP, given a static IP address, or have firmware updated. To update firmware: 1. Locate the latest firmware file available on the ELAN Dealer Resources page and download it 2. Navigate to the Software tab a.
-
Page 9: Limited Warranty
LIMITED WARRANTY Nortek Security & Control ( ‘NSC’ ) warrants the ELAN Video Doorbell to be free from defects in materials and workmanship for the period of two years (2 years) from the date of purchase. If within the applicable warranty period above purchaser discovers that such item was not as warranted above and promptly notifies ‘NSC’...
