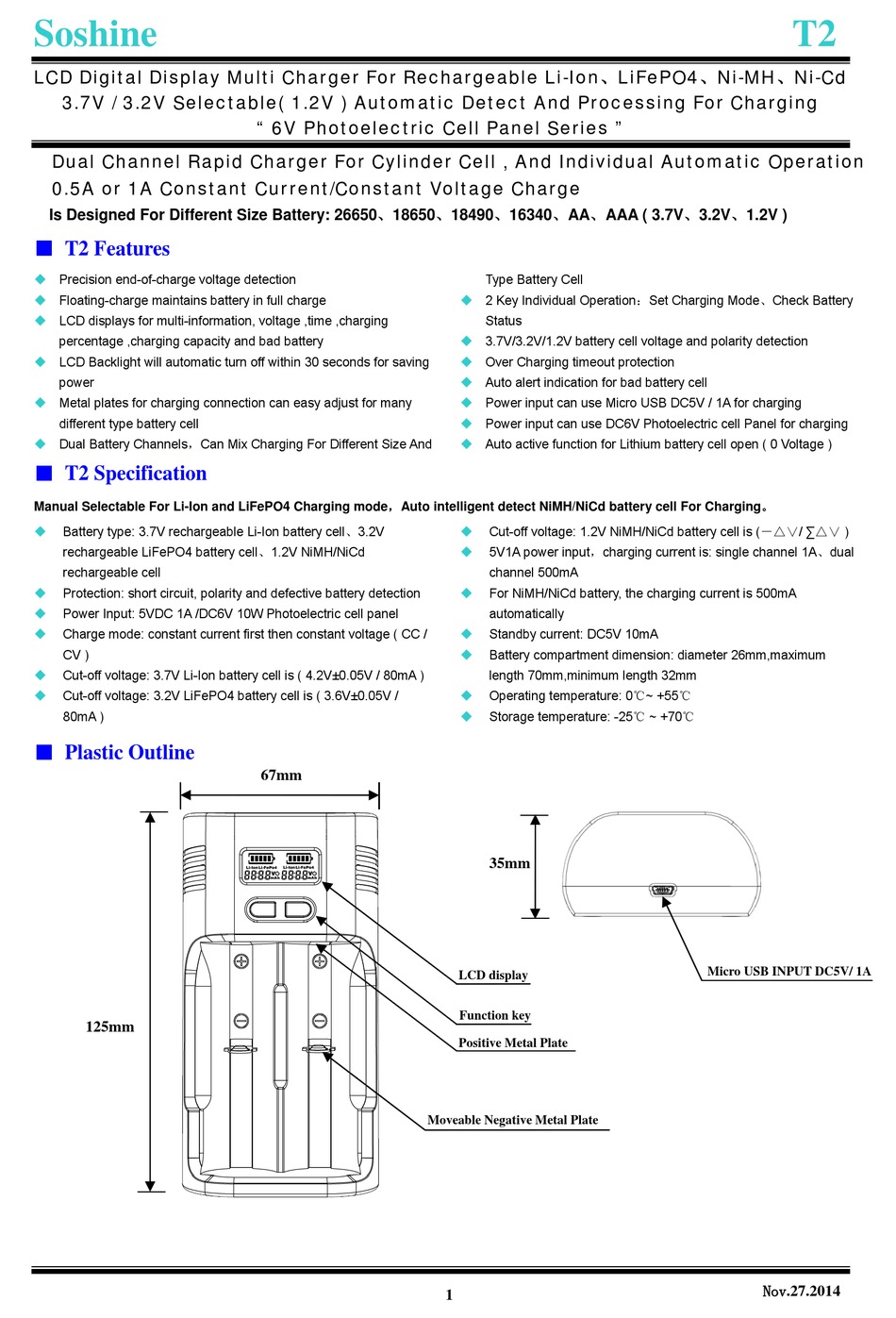

Soshine T2 Quick Start Manual

Soshine
LCD Digital Display Multi Charger For Rechargeable Li-Ion、LiFePO4、Ni-MH、Ni-Cd
3.7V / 3.2V Selectable( 1.2V ) Automatic Detect And Processing For Charging
Dual Channel Rapid Charger For Cylinder Cell , And Individual Automatic Operation
0.5A or 1A Constant Current/Constant Voltage Charge
Is Designed For Different Size Battery: 26650、18650、18490、16340、AA、AAA ( 3.7V、3.2V、1.2V )
■ T2 Features
 Precision end-of-charge voltage detection
 Floating-charge maintains battery in full charge
 LCD displays for multi-information, voltage ,time ,charging
percentage ,charging capacity and bad battery
LCD Backlight will automatic turn off within 30 seconds for saving

power
 Metal plates for charging connection can easy adjust for many
different type battery cell
Dual Battery Channels，Can Mix Charging For Different Size And

■ T2 Specification
Manual Selectable For Li-Ion and LiFePO4 Charging mode，Auto intelligent detect NiMH/NiCd battery cell For Charging。
 Battery type: 3.7V rechargeable Li-Ion battery cell、3.2V
rechargeable LiFePO4 battery cell、1.2V NiMH/NiCd
rechargeable cell
 Protection: short circuit, polarity and defective battery detection
 Power Input: 5VDC 1A /DC6V 10W Photoelectric cell panel
 Charge mode: constant current first then constant voltage ( CC /
CV )
 Cut-off voltage: 3.7V Li-Ion battery cell is ( 4.2V±0.05V / 80mA )
 Cut-off voltage: 3.2V LiFePO4 battery cell is ( 3.6V±0.05V /
80mA )
■ Plastic Outline
125mm
" 6V Photoelectric Cell Panel Series "
67mm
Type Battery Cell
 2 Key Individual Operation：Set Charging Mode、Check Battery
Status
 3.7V/3.2V/1.2V battery cell voltage and polarity detection
Over Charging timeout protection

 Auto alert indication for bad battery cell
 Power input can use Micro USB DC5V / 1A for charging
 Power input can use DC6V Photoelectric cell Panel for charging
Auto active function for Lithium battery cell open ( 0 Voltage )

 Cut-off voltage: 1.2V NiMH/NiCd battery cell is (－△∨/ ∑△∨ )
 5V1A power input，charging current is: single channel 1A、dual
channel 500mA
 For NiMH/NiCd battery, the charging current is 500mA
automatically
 Standby current: DC5V 10mA
 Battery compartment dimension: diameter 26mm,maximum
length 70mm,minimum length 32mm
 Operating temperature: 0℃~ +55℃
 Storage temperature: -25℃ ~ +70℃
35mm
LCD display
Function key
Positive Metal Plate
Moveable Negative Metal Plate
1
T2
Micro USB INPUT DC5V/ 1A
Nov.27.2014
