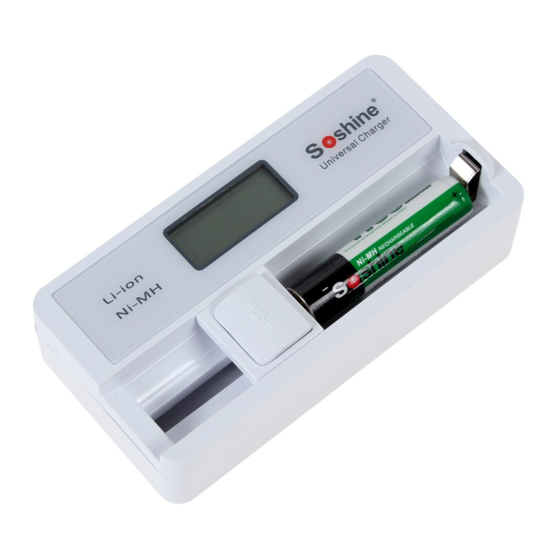

Soshine SC-S7 Quick Start Manual

LCD Digital Display Universal Charger
for Rechargeable Li-ion 3.7V or Ni-MH 1.2V battery
The Charger is designed for Li-ion 3.7V 18650 14500 16340 10440 or Ni-MH 1.2V AA AAA Battery

Features

Precision end-of-charge voltage detection
Floating-charging maintains battery in full charge
Lcd Displays for multi-information, voltage, time, charging percentage,
charging capacity, worse battery and bad battery
Automatic 3.7V/1.2V battery pack voltage and polarity detection

Specification

Intelligent auto reverse-connect protection device auto detects the polarity of the inserted battery
Battery type: Li-ion 3.7V / Ni-MH 1.2V rechargeable battery pack
Protection: short circuit, defective battery detection
Power Input: 12 VDC 600mA / USB Input: 5VDC 1000mA
Charger mode: CC/CV @Li-ion battery,
-Delta V @Ni-MH battery
Cut-off voltage: 4.2V@3.7V battery,1.4V@1.2V battery

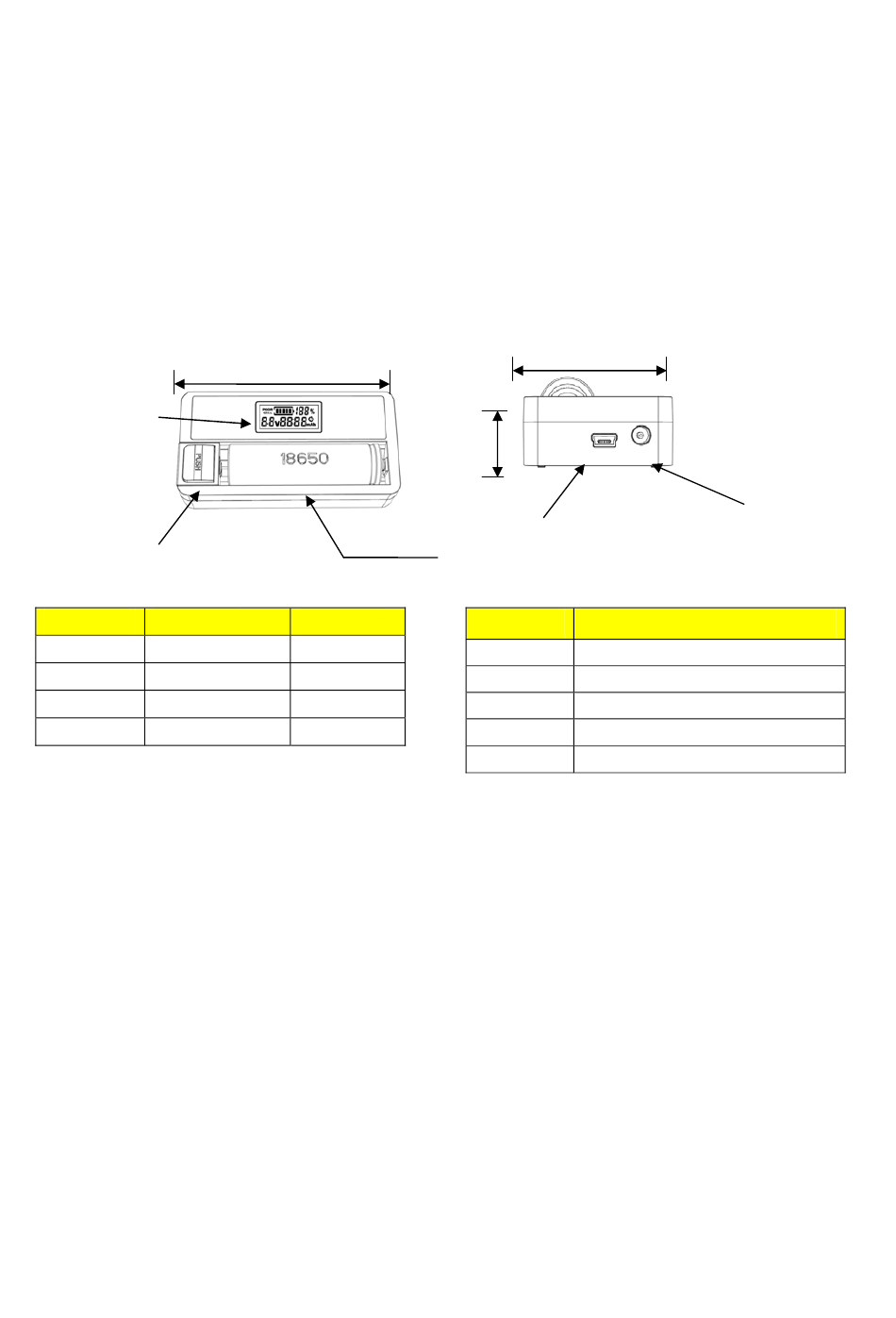

Plastic Outline

LCD Display
Moveable
clamping device

Characteristics

Battery capacity 3.7V Charging time
600 mAh ~ 55 min
1000 mAh ~ 90 min
1400 mAh ~ 120 min
1800 mAh ~ 155 min
Maximum charging time: 99 hour 59 minute
Maximum charging capacity: 9999mAh

Operating Instruction

The intelligent charger can connect the power from supplied AC power adaptor or adaptor with 5V DC USB output or DC car cigarette lighter
adaptor for charging, after power on, LCD display shows『Stby』characters, the charger is on standby mode and can insert a rechargeable battery
The charger has 1 flexible contact plates, which must be adjusted for the chosen rechargeable battery pack.
Ensure that the + and – contacts are chosen.
Slide the contact plates in such a way that they line up with the contacts of the rechargeable battery pack.
The charger will automatically detect the voltage and polarity of the rechargeable battery pack, and auto select a suitable condition for charging.
Once the connecting has been verified by the charger the battery icon and levels of the LCD display will running light up to indicate that the
charging process has started, after charging is completed, the battery icon and levels stops running and all light on
If charging after a period, LCD display shows『FAIL』characters and battery icon flash, the rechargeable battery pack may be faulty and need
replacing.
If charging after a period, the『POOR CELL』icon of LCD display blinking, the rechargeable battery pack may be a worse battery pack or using a
long time period and degraded battery pack.
The charge will turn off automatically when the battery pack is full owing to the function of the microprocessor.
If for any reason the battery pack does not exhibit the right "battery full" characteristics, the integrated safety timer or maximum charging capacity
terminates the charging procedure

Important Safety Instructions

Read all the instructions and cautions before using the charger.
Use rechargeable battery pack ONLY. Using other batteries will void the warranty and cause injury and damage.
Do not use any power adapter or damaged adapter or cord and plug from 3rd parties for charging.
Do not disassemble the charger and power adapter; this may cause electric shock or fire.
Do not use the charger when it is wet.
Do not leave the battery pack connected to the charger or plate for prolonged period. Remove the battery pack after charging is completed.
Unplug the charger when it is not in use.
Keep batteries away from fire, water, or extreme condition
95mm
Charging
contact plates
1.2V Charging time
~ 55 min
~ 90 min
~120 min
~ 155 min
Over charging timeout protection
Auto alert indication for worse battery pack and bad battery pack
Power input can use DC12V or Mini-USB DC5V for charging
Auto active function for Lithium battery pack open ( 0 Voltage )
Charging current: 1000mA
Standby current: 60mA for 5V input, 100mA for 12V input
Operating temperature: 0℃~ +55℃
Storage temperature: -25℃ ~ +70℃
Size (mm): L95x W48 x H23mm
Weight: 54g
48mm
23mm
DC5V input
Micro USB in
Conditions LCD Display
Power on LCD display shows『Stby』for standby mode
Charging battery Battery icon and levels running light up
Battery icon and levels stop running and all light on
Fully charge
LCD display shows 『 FAIL』 ,battery an 『POOR CELL』 icons
Bad battery
flash at the same time
『POOR CELL』icon blinking
Worse battery
1
SC-S7
hollow plug ×Φ2.1×5.5mm
DC12V input
