Summary of Contents for Euroscreen Thor

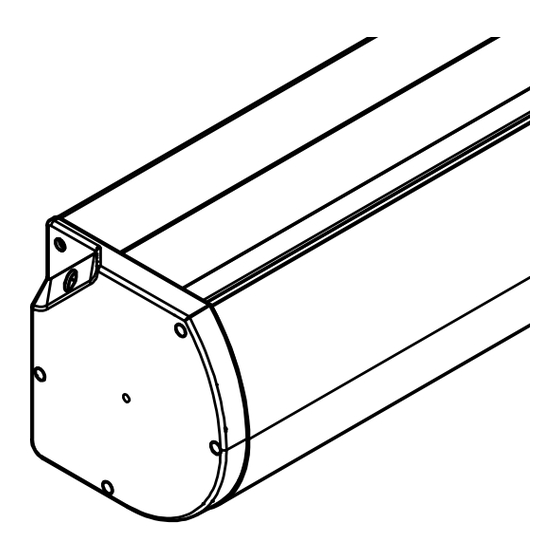

- Page 1 03 okt 2014, 17:10 Thor Made in Sweden...
- Page 3 Please read through the manual completely before installation and usage. Tack för att ni valt en Euroscreen som en del i er AV-installation. Vi ® hoppas den kan ge er många timmar av underhållning och/eller utbildning, beroende på...
- Page 4 Overview / Översikt Case / Kassett fig 1 Wall bracket / Väggkonsol 6,35 DRAWN DRAWN Niclas 2013-09-23 Niclas 2013-09-23 CHECKED CHECKED TITLE TITLE 38,10 38,10 12,70 APPROVED APPROVED SIZE DWG NO SIZE DWG NO SCALE SCALE SHEET SHEET 101,60 fig 2 Designed by Checked by Approved by...
- Page 5 Unpacking / Uppackning UK: Release the dowel from the bracket by removing the screw. Remove the bracket and its fastening plate from the case. The bracket and the plate inserted in the track of the case is needed if the screen should be mounted in the ceiling! Remove the dowel holder from the bottom dowel.
- Page 6 Assembly / Montering UK: The ”Thor” screen can be mounted on the wall or in the ceiling. Keep the screen horizontal at all times during installation. Wall mount: 1. Mount the wall brackets and make sure they are levelled. Sideways spacing isn’t crucial as they can slide sideways but recommended spacing is shown in fig 7.
- Page 7 Limit setting / Gränslägen The screens settings has been set at the factory. Changes to these settings should be done with caution AS THIS MAY CAUSE DAMAGE TO OR RUIN THE SCREEN! 1. Adjustment to the UPPER limit is shown in fig 11 (yellow screw).
- Page 8 Tensioning / Trådspänning (TabTension only) (endast TabTension) EN: To keep the surface flat you may need to adjust the fig 13 tensioning as the surface will change with time and temperature. This is done with the tensioning screw marked in fig 13. It is adjustable with 1/6 turn increments. Only adjust it in a single increment at a time! 1.
- Page 9 Height adjustment / Höjdjustering Some of the Thor screens (width dependable) has a built in height adjustment in case the ceiling for instance, doesn’t allow the installation to be level. There is approx. 5mm adjusting room up and 5mm down on each side of the screen. We recommend you to primarily adjust on the idler/spear side.
- Page 10 EXTERIOR OVERVIEW / EXTERIÖR ÖVERSIKT fig 19 [mm] INTERIOR OVERVIEW / INTERIÖR ÖVERSIKT Date Date Designed by Checked by Approved by Fuse / Säkring Niclas 2012-06-18 fig 20 Edition 210730 Pull resistance / Dragavlastning Up / Upp Stop / Stopp Down / Ner Supply terminal / Matarström Motor terminal / Inkoppling motor...
- Page 11 Basic Installation / Grundinstallation RADIO MOUNTING RECOMMENDATIONS REKOMMENDATIONER FÖR RADIO For safest radio functionality please: För bästa radiofunktion bör följande följas: a. Do not install the receiver against or a. Installera inte mottagaren bakom eller intill sheltered by a metallic part as this might affect metalldelar då...
- Page 12 Control options / Alternativa styrningar IR REMOTE IR FJÄRRKONTROLL To control the box with IR-remote, add För att styra boxen med IR-fjärr, kom- Euroscreen s remote #210704 (fig 21). plettera med Euroscreen s fjärrkontroll ® ® #210704 (fig 21). fig 21 RF REMOTE RF FJÄRRKONTROLL...
- Page 13 2,5mm Audio plug. Available passande kablage. Contol Boxen kopplas in from the Euroscreen range is the ”2,5 Audio/ med en 2,5mm Audiokontakt. Euroscreen ® open end” #210733. The Control Box can work erbjuder en ”2,5 Audio/öppna trådar-kabel”...
- Page 15 European Parliament and of the European Council concerning the Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH). All screen surfaces of Euroscreen ® projection screens are approved by the REACH regulation. ECHA European Chemicals Agency (ECHA) gathers information on the properties of manufacturers and importers chemical substances, which will allow their safe handling, and to register the information in a central database.
- Page 16 Draper Europe AB / Västervallvägen 6 / 302 50 Halmstad Tel: 035-14 42 90 / Fax: 035-14 42 91...
