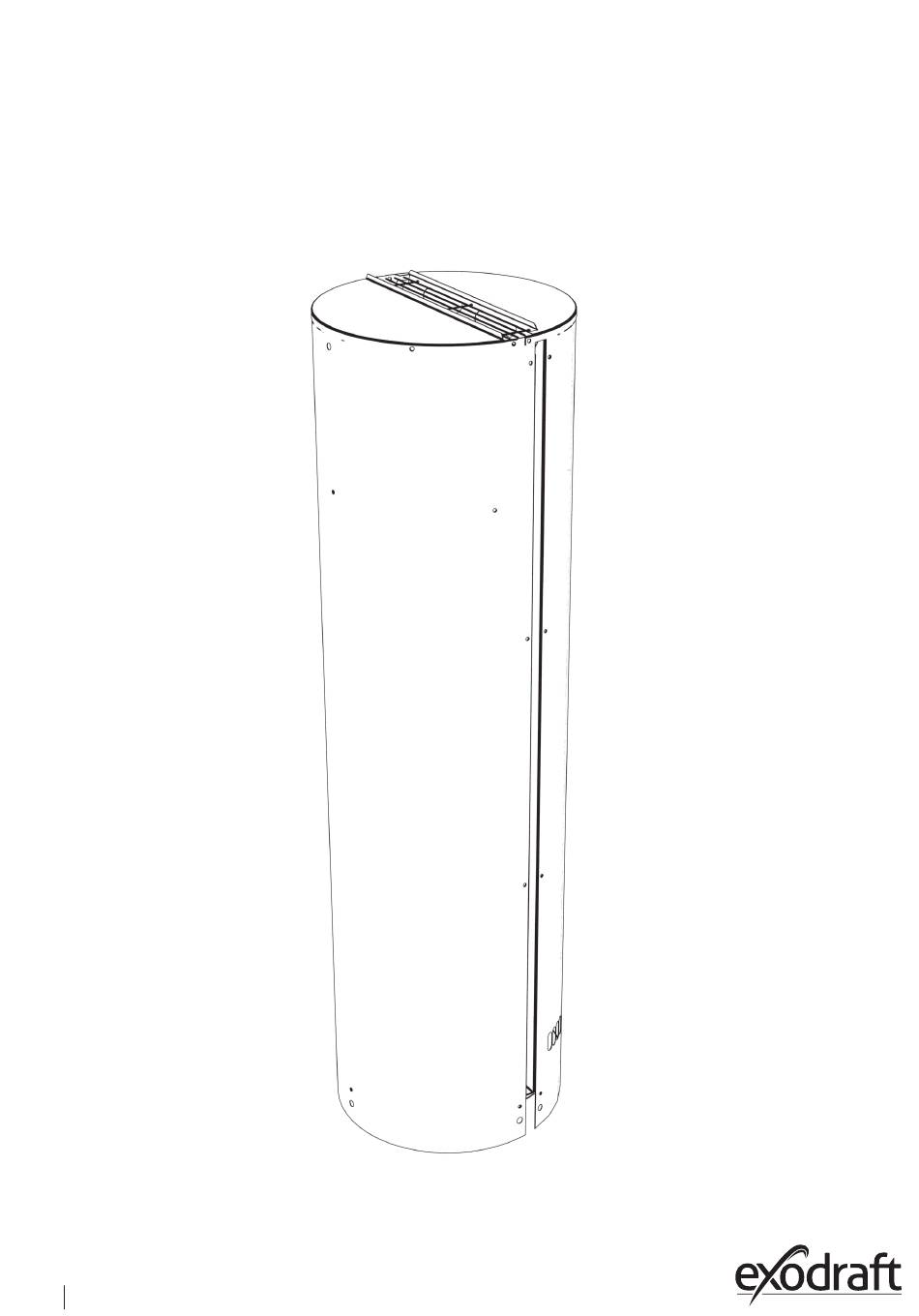

- Page 1 ESP-10 - Particle Filter (Electrostatic Precipitator) for Wood-Burning Stoves Always read and save these instructions!
-
Page 2: Table Of Contents
Functionality of the electrostatic precipitator 1.4. Automatic on/off 1.5. Self-cleaning function 1.6. Manual on/off Technical Data 2.1. exodraft ESP Filter measurements without adapter 2.2. Technical data for ESP unit Warranty User operation instructions 4.1. User operation 4.2. Indications on filter 4.3. - Page 3 Information that is of particular importance for the function and optimum use of the device /system. Attention The ESP-10 must always be connected to an outlet with a PE connection (protective earth). Safety Instructions TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY, OBSERVE THE FOLLOWING: The device should only be installed and used as specified by the manufacturer.
-
Page 4: Product Description
The filter is designed for closed wood-burning fireplaces (stoves) with a nominal effect of maximum 10 kW. The exodraft ESP comes with an integrated isolation switch and a 5-metre cable with a male schuko plug and adapter for DK plug. -
Page 5: Functionality Of The Electrostatic Precipitator
Functionality of the electrostatic precipitator The exodraft filter is an electrostatic precipitator. The filter reduces the number of fine and ultrafine particles in a flue gas flow by creating an electrostatic field between the charging electrode and the collection electrode. -
Page 6: Automatic On/Off
ATTENTION: When the fireplace and chimney are cold, it may, depending on relevant factors (stove model, chimney size, fuel type etc.), be necessary to turn the exodraft ESP filter off and then back on at the power supply (wall plug/ remote control) to get the full benefit of the ventilators mechanical draft. -
Page 7: Technical Data
Installation and operating manual Technical Data 2.1. exodraft ESP Filter measurements without adapter All measurements in mm... -
Page 8: Technical Data For Esp Unit
Installation and operating manual 2.2. Technical data for ESP unit The filter first reaches its full efficiency after 10-20 fires or burning of approx. 15-20 kg of firewood. Model exodraft ESP-10 Used for Closed wood-fired appliances Fireplace performance range 4 – 10 kW Chimney size - round ø150 –... -
Page 9: Warranty
The exodraft ESP has a 1-year warranty from the date of purchase in accordance with the law. Replacement or repair of the exodraft ESP is handled by a dealer chosen by the manufacturer – if a factory inspection detects a defect in materials or manufacturing. -
Page 10: User Operation Instructions
Installation and operating manual User operation instructions 4.1. User operation Always load the stove with dry and clean wood only and in accordance with the stove manual. NEVER USE THE STOVE WITH THE FILTER TURNED OFF OR THE POWERCABLE NOT PLUGGED IN. This will result in permanent damage to the filter. -
Page 11: Indications On Filter
Installation and operating manual 4.2. Indications on filter The LED located next to the main switch on the filter will indicate current filter status. The following diagram illustrates the various status categories, as indicated by the LED: Green ON In operation Flashing Green once per second Sleep mode/Standby mode Flashing Green 5 times per second... -
Page 12: Components
Components 5.1. Standard delivery The exodraft filter comes with a 5-metre power cable with grounded Schuko plug. A plug adapter for DK standard is included. Additional equipment and accessories (to be ordered separately): • Mounting adapter for either steel or brick chimney •... -
Page 13: Mechanical Installation On A Chimney
• The exodraft ESP is only suitable for installation on wood-fired stoves in the range 4 kW – 10 kW. As the ESP is part of a wood-fired installation, please ensure that the design meets the requirements in your country/area. -
Page 14: Installation And Installation Components
An adapter must be used for installation, fitted so that the spigot end sits inside the chimney. The adapter is fastened to the exodraft ESP with screws. Different adapters will be available for steel and brick chimneys. The adapter must be ordered separately. -
Page 15: Aligning The Electrode
Installation and operating manual 7.2. Aligning the electrode Attention: Power supply must be off. The ESP comes with the charging electrode already installed. When installing the ESP, the charging electrode should hang straight down inside the ESP. The position of the electrode can be determined by opening the lid of the ESP at the top and looking down the ESP. Should the electrode not be aligned properly, please see Chapter 9 “Maintenance and cleaning”... -
Page 16: Attach The Warning Labels
Installation and operating manual 7.4. Attach the warning labels The chimney sweep must be made aware that the chimney is equipped with an ESP Filter. A high voltage warning label must be attached to all inspection/cleaning hatches in the chimney system. -
Page 17: Start-Up And Configuration
Installation and operating manual Start-up and configuration 9.1. General To enable the user to turn off the ESP filter, it should be connected to either a remote controlled power supply or a power supply close to the wood stove. Plug in the power supply to the ESP filter and turn the main switch on the filter to position “on”. -
Page 18: Maintenance And Cleaning
10.1. Safety precautions The exodraft ESP, including the draftbooster fan, must be inspected at least once a year in connection with inspection of the chimney. Soot and other deposits must be removed from the fan rotor blades and from high voltage insulator. -
Page 19: Annual Cleaning And Service Of The Filter
10.2. Annual cleaning and service of the filter DANGER Make sure the exodraft ESP is unplugged during cleaning and service The filter is equipped with a cleaning function that automatically cleans the filter when powered up, periodically cleans it during operation and during standby. This should be enough to keep the filter compartment clean provided only dry and clean wood is being used in the stove. - Page 20 Installation and operating manual General condition of the inside of the exodraft ESP filter: • Is the collecting grid moving freely up and down? Check by moving the pin pos. 8 by hand. • Is the Draftbooster impeller moving freely? Turn the impeller by hand.
- Page 21 Installation and operating manual Cleaning/service • The Draftbooster motor housing and fan must be cleaned. Remove soot from the impeller and from the bottom of the motor housing. If necessary, change the impeller. • Cleaning the insulator pos. 4. The insulator is cleaned with a piece of cloth using brake fluid.
-
Page 22: Troubleshooting
Installation and operating manual 11. Troubleshooting The filter first reaches its full efficiency after 10-20 fires or burning of approx. 15-20 kg of firewood. 11.1. Trouble shooting when warning lights are on See also chapter 4.2 for diagram showing LED light status Observation Problem Solution... -
Page 23: Declaration Of Conformity
Erklærer på eget ansvar at følgende produkter: Dichiara con la presente che i seguenti prodotti: Niniejszym oświadcza, że następujące produkty: exodraft varenr. 5113000 Som er omfattet af denne erklæring, er i overensstemmelse med følgende Zijn vervaardigd in overeenstemming met de voorschriften uit de hieronder... - Page 24 DK: exodraft a/s NO: exodraft a/s DE: exodraft GmbH C. F. Tietgens Boulevard 41 Storgaten 88 Soonwaldstraße 6 DK-5220 Odense SØ NO-3060 Svelvik DE-55569 Monzingen Tel: +45 7010 2234 Tel: +47 3329 7062 Tel: +49 (0)6751 855 599-0 Fax: +45 7010 2235 info@exodraft.no...
