Gigaset N510 IP PRO DECT single cell
manual
A. General information
1. Introduction
Welcome!
This manual helps you to optimize the usage of the DECT telephone in combination with the PBX.
Please use this manual at initial operation.
We wish you joy in working with the telephones and this manual!
Subject to alterations
Version 1 / 07.2017 (en)
2. Used icons
Type
Icon
Notice
Hint
Action
Result of an
action
List
B. Initial Operation
1. Requirements and notes
Description
Important information and notices that you
have to pay attention to.
Useful hints that provide additional
information.
-
is marked with a dash
⇒
is marked with an arrow
•
is marked with a bullet point
1

Advertisement

Table of Contents
loading

Related Manuals for Gigaset N510 IP PRO

Summary of Contents for Gigaset N510 IP PRO

  • Page 1 Gigaset N510 IP PRO DECT single cell manual A. General information 1. Introduction Welcome! This manual helps you to optimize the usage of the DECT telephone in combination with the PBX. Please use this manual at initial operation. We wish you joy in working with the telephones and this manual! Subject to alterations Version 1 / 07.2017 (en)

  • Page 2: Installation

    2. Installation 2.1. Overview Before you begin using your new Gigaset DECT system, we would like to provide you with a brief overview of the steps required for installation. Add the DECT base station (N510 IP PRO) and DECT handsets (R650H, S650H, SL750H) to the administration portal.

  • Page 3: Telephone Overview

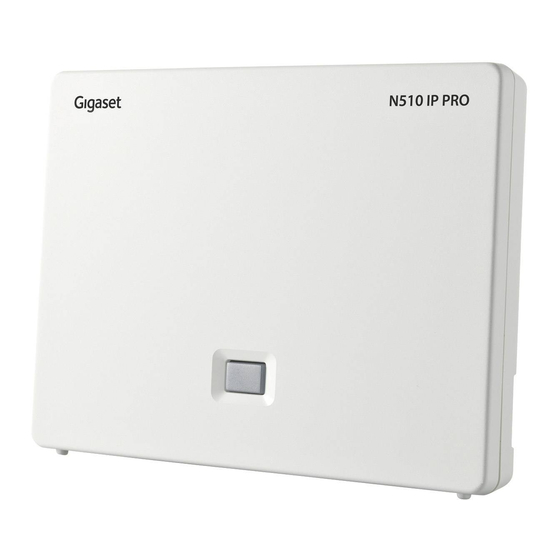

    C. Operation 1. Basic functions 1.1. Telephone overview Gigaset N510 IP PRO Key function Registration / paging key Action Functions of the registration / paging key of the base station Lights up LAN connection active (phone is connected to router)
  • Page 4 DECT handset Gigaset S650H Key function Display Status bar Volume keys Display keys End call key, on / off key Message key Profile key Hash key (keypad lock) USB connection socket Microphone Star key Headset connection Key 1, can be assigned with the voicemail function R-key (e.g.

  • Page 5: Placing Calls

    Other handsets function similarly to the DECT handset Gigaset S650H. For detailed information, please refer to the manufacturer's operating manual. 1.2. Placing calls Placing calls with the mobile handset Pick up the handset and dial the telephone number. To correct a digit, press...

  • Page 6: Incoming Calls

    Press To end the call, press or return the mobile handset to the charger. Using the hands-free feature Dial the telephone number and press To end the call, press To return to using the receiver, press Adjusting the receiver or speaking volume Press on options and select then volume and save.

  • Page 7: Missed Calls

    Adjusting the ringer volume on the mobile headset When the mobile handset rings during an incoming call: Go into the menu and click on settings. Click on tones and signals and select then ringtones. Select the volume or melodies. 1.4. Missed calls Missed calls are indicated on the mobile handset display (“Missed Calls”).

  • Page 8: Call Transfer

    Your mobile handset allows you to make a 3-way call. Call the 1st party. Press Then call the 2nd party and wait until you have reached the 2nd party. Press In order to end the conference, press A conference call with more than 3 parties can easily be set up on the administration portal: Please refer to the administration portal manual.
  • Page 9 2. Voicemail Initial set-up When accessing the voice menu of your voicemail system for the first time, you should also set up your personal answering system. Please refer to the voicemail leaflet for detailed information. Press on the mobile handset to access the voice menu of the voicemail system. Then select 0 Mailbox Options to set up your voice mailbox.
  • Page 10 If neither the manuals nor the FAQs or other contents of the support website provide a solution, you can open a support ticket by phone. Our support staff is available Monday to Friday from 8:00 am to 6:00 pm at +44 20 3740 6740 for UK and +49 800 63 66 555 for Germany.
