DRUID

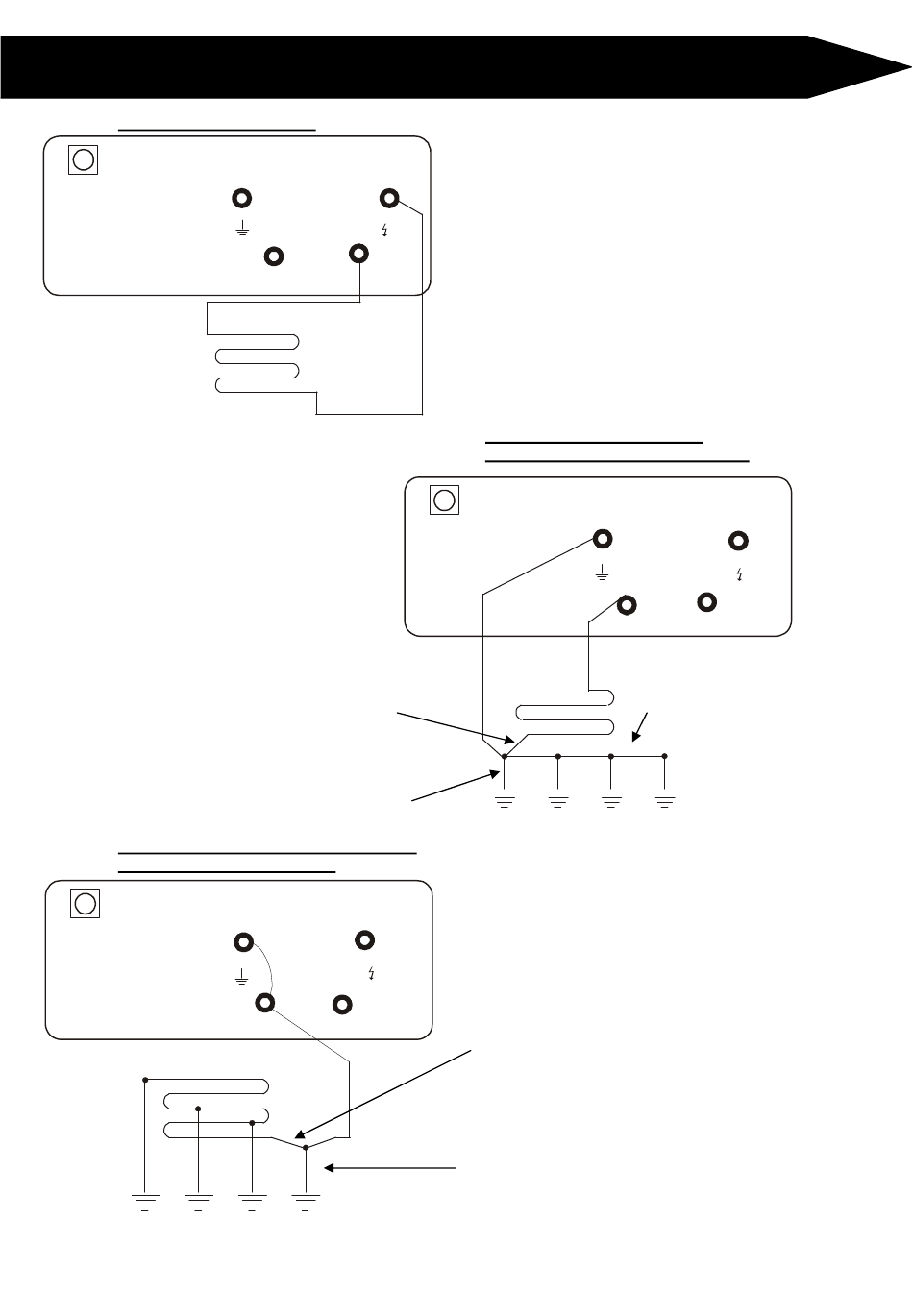

LIVE WIRE CONNECTION
Preferred connection method
EARTH WIRE CONNECTION WITHOUT
EARTH LOOP MONITORING
FENCE
OUT
EARTH
FENCE
RETURN
FENCE
Fence earth wire to
be connected from
the main earth spike,
NOT straight from
the energizer
Main earth spike –
install close to the
energizer
OUT
FENCE
EARTH
RETURN

Connection to the Fence

NOTE:
The installation and erection of the electric
fence should be done in South Africa
according to SANS 10222-3 latest edition.
In other countries according to the local
specifications.
EARTH WIRE CONNECTION
WITH EARTH LOOP MONITORING
EARTH
FENCE
Alternative connection method
Fence earth wire to be connected from the
main earth spike, NOT straight from the
energizer
Main earth spike – install close to the
energizer
OUT
FENCE
RETURN
The earth spikes are connected
to one wire of the fence and the
wire is only coupled to the other
fence earth wires at the main
earth spike
