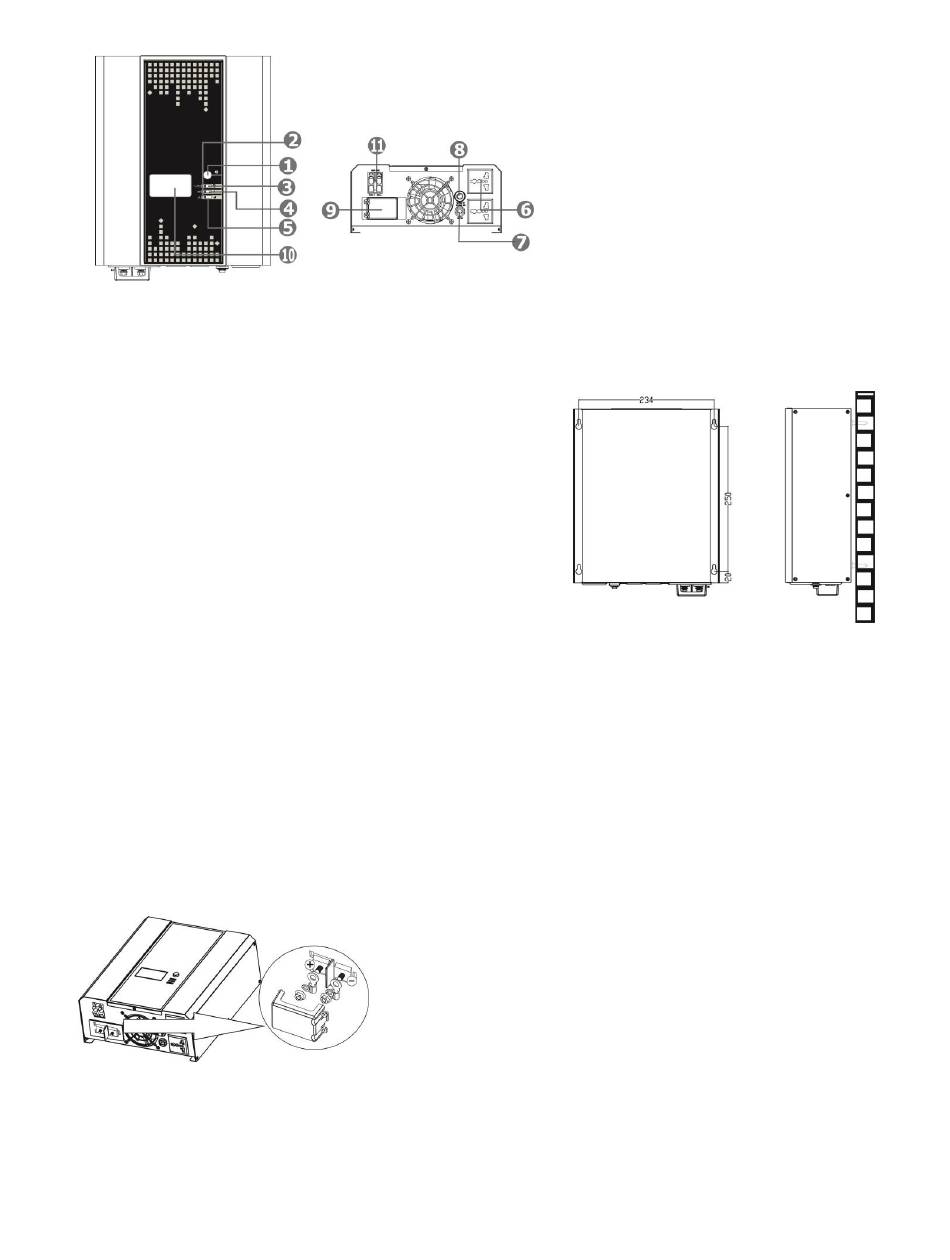

3. Product Overview

4. Installation

NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is damaged.
Mounting the unit
The unit ONLY can be mounted vertically to a wall surface.
Please follow below steps:
1. Turn off the unit before mounting.
2. Select an appropriate mounting location. Mark four mounted
ends as shown in chart.
3. Drill four marks by screws.
4. Mount the unit by positioning the key-hole slots over the
mounting screws.
Connect to Utility and Charge
Plug in the AC input cord to the wall outlet. The unit will automatically charge the connected external battery
even though the unit is off.
Connect External Battery
Step 1- Take away the cover of external battery terminal.
Step 2- Following battery polarity guide printed near the battery terminal!
Place the external battery cable ring terminal over the battery terminal.
RED cable to the positive terminal (+);
BLACK cable to the negative terminal (-).
WARNING! Please use the appropriate battery cable. Please refer to Important Safety Warnings Section
for the details.
Step 3- Tight the battery cables with the M5 nuts. Do NOT place anything between the flat part of battery
terminal and the battery cable ring terminal, or overheating may occur. (See Fig. 1)
Step 4- Install a DC Breaker in a positive battery line. The rating of the DC Breaker must be according to the
inverter's battery current (75 Amp). Keep the DC breaker off. (see Fig. 2)
Step 5- Connect battery cables to the external batteries. Note: For the user operation safety, we strongly
recommend that you should use tapes to isolate the battery terminals before you start to operate the unit.
1) Single battery connection (Refer to Fig. 2): When using a single battery, its voltage must be equal to
the Nominal DC Voltage of the unit (see below Table 1).
Fig. 1
2
1. Power switch
2. Status indicators (please see the
Operation section for the details)
3. ESC button
4. SCROLL button
5. ENTER button
(Please see the Operation section for the
details)
6. Output receptacles
7. AC input
8. Input circuit breaker
9. External battery connectors
10. LCD display
11. Solar connector
