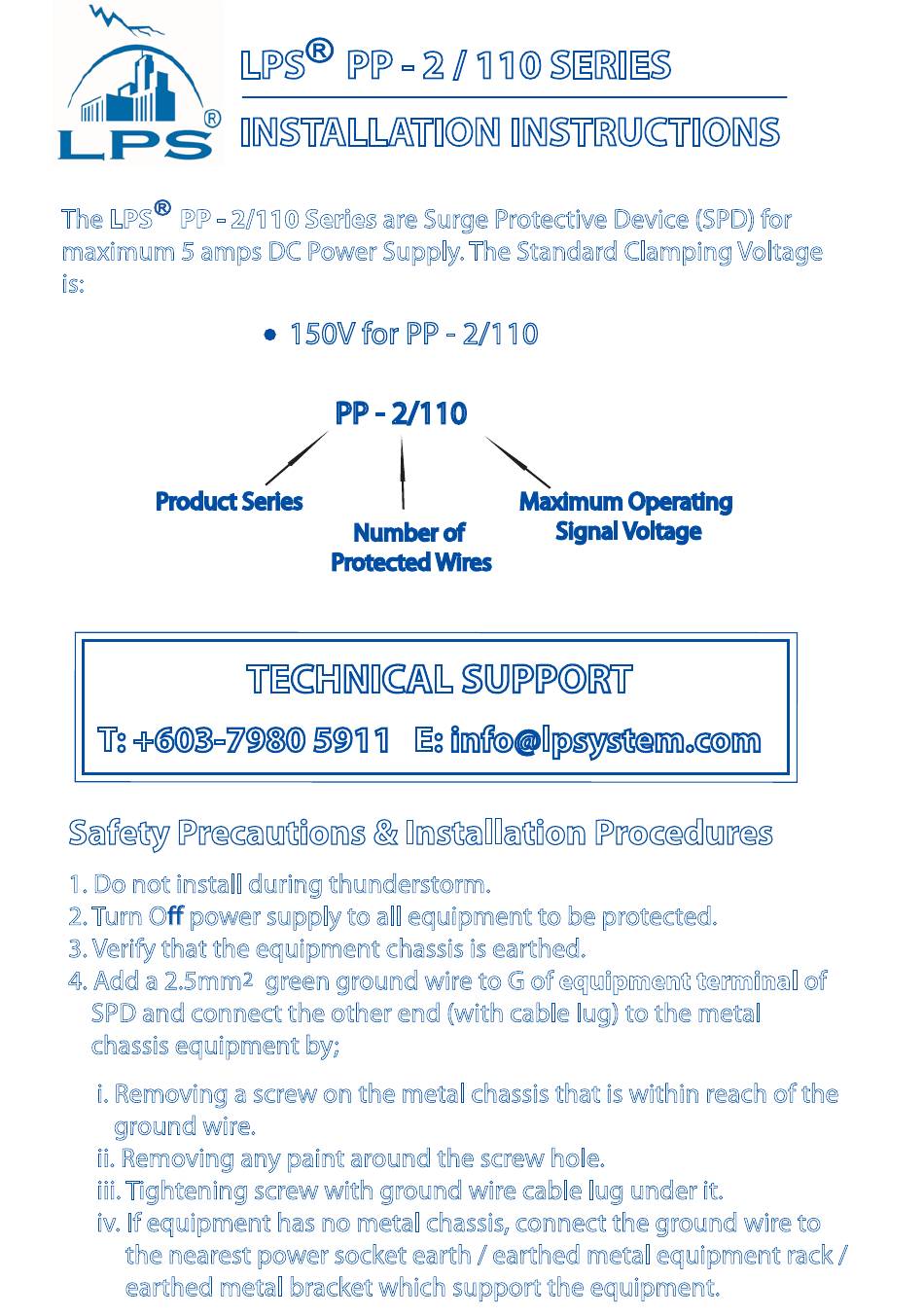

LPS PP-2/110 Series Installation Instructions

The LPS PP - 2/110 Series are Surge Protective Device (SPD) for
maximum 5 amps DC Power Supply. The Standard Clamping Voltage
is:
Product Series
T: +603-7980 5911 E: info@lpsystem.com
Safety Precautions & Installation Procedures
1. Do not install during thunderstorm.
2. Turn O power supply to all equipment to be protected.
3. Verify that the equipment chassis is earthed.
4. Add a 2.5mm green ground wire to G of equipment terminal of
SPD and connect the other end (with cable lug) to the metal
chassis equipment by;
i. Removing a screw on the metal chassis that is within reach of the
ground wire.
ii. Removing any paint around the screw hole.
iii. Tightening screw with ground wire cable lug under it.
iv. If equipment has no metal chassis, connect the ground wire to
the nearest power socket earth / earthed metal equipment rack /
earthed metal bracket which support the equipment.
LPS PP - 2 / 110 SERIES
INSTALLATION INSTRUCTIONS
150V for PP - 2/110
PP - 2/110
Number of
Protected Wires

TECHNICAL SUPPORT

2
Maximum Operating
Signal Voltage
