paasche D3000 Instructions And Parts List

paasche
D3000
Air Compressor & Tank
OILLESS - NEEDS NO LUBRICATION
1/8 HP, 110V, 60Hz, 0.35 AMP, 1.3 CFM (free air),
38 PSI, Shipping Weight: 9 kgs (20 lbs.)
OPERATION:
The compressor is maintenance free. To avoid mal-functions and
premature wear and tear, the following points should be
observed.
1. Plug the power cord into a 110V.-60 Cycle grounded outlet. Do
not use an adapter to by-pass the grounding feature. Do not
operate compressor in a wet area.
2. Place compressor on a level surface, preferably on the floor.
3. Carrying compressor while operating is not advisable.
4. Do not let the compressor run unnecessarily, i.e. the unit
should be switched off when the airbrush is not being used.
5. Always remove the power cord from the electric outlet when
making adjustment or changing parts.
6. Always provide plenty of ventilation while spraying.
7. Never smoke or eat while spraying.
8. Wear a respirator and eye protection when spraying.
9. Always release pressure in tank when finished using the
compressor.
TROUBLE-SHOOTING:
1. Low air flow
Possible causes:
-Reed valve (#33)
or air valve (#38)
damaged
-Diaphragm (#31) damaged
-6 screws (#42) are too loose
-Air hose leaking
2. Noisy operation
Possible causes:
-6 screws (#42) are too tight
-Bearing fault
3. Humming but does not work
Possible causes:
-6 screws (#42) are too tight
-Armature fault
4. Does not work
Possible causes:
-Armature fault
Paasche Airbrush Company
4311 North Normandy
Chicago, IL 60634-1395
Phone: 773-867-9191 • Fax: 773-867-9198
Website: paascheairbrush.com
E-Mail: info@paascheairbrush.com
What to do:
-Change the defective air
valve plate or air valve
-Change the diaphragm
-Tighten the screws
-Check seal, or change
What to do:
- Loosen the screws, and
then tighten them equally.
Do not over tighten.
-Return to Factory.
What to do:
-Loosen the screws, and
then tighten them equally.
Do not over tighten.
-Return to the Factory.
What to do:
-Return to the Factory.
INSTRUCTION AND PARTS LIST D3000-8/2005
Supersedes Instruction & Parts List D3000-10/2003
WARNING: When a flammable liquid is sprayed, there
may be danger of fire or explosion especially in a closed
room: keep compressor at least 20 feet away from areas
where hazardous concentrations of flammable vapors
are likely to occur. Disconnect power before servicing.
ATTENTION: Lorsqu'un liquide inflammable est
pulverise, il peut y avoir danger d'incendie ou
d'explosion, specialement dans une piece fermee;
garder le compresseur a au moins 20 pieds des
endroits ou des concentrations dangereuses de
vapeurs inflammables sont susceptibles de se
produire. Debrancher avant toute maintenance.
5. Pressure switch not
cutting out
Possible causes:
-Valve fault
NOTICE:
If you need to disassemble the compressor, take care to note the
position and orientation of the parts to assure the correct re-
assembly.

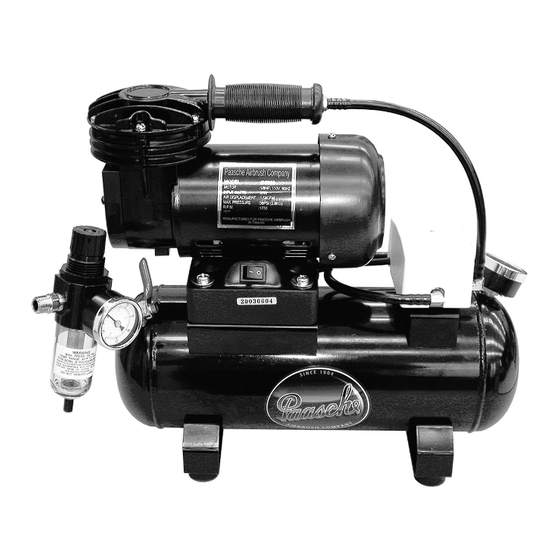

D3000 Shown with Optional RA3000 Regulator Kit
RA3000
Installation
Manufactured for Paasche in Taiwan
What to do:
-Requires adjustment of
pressure valve.
