Summary of Contents for Mitsumi ATAPI

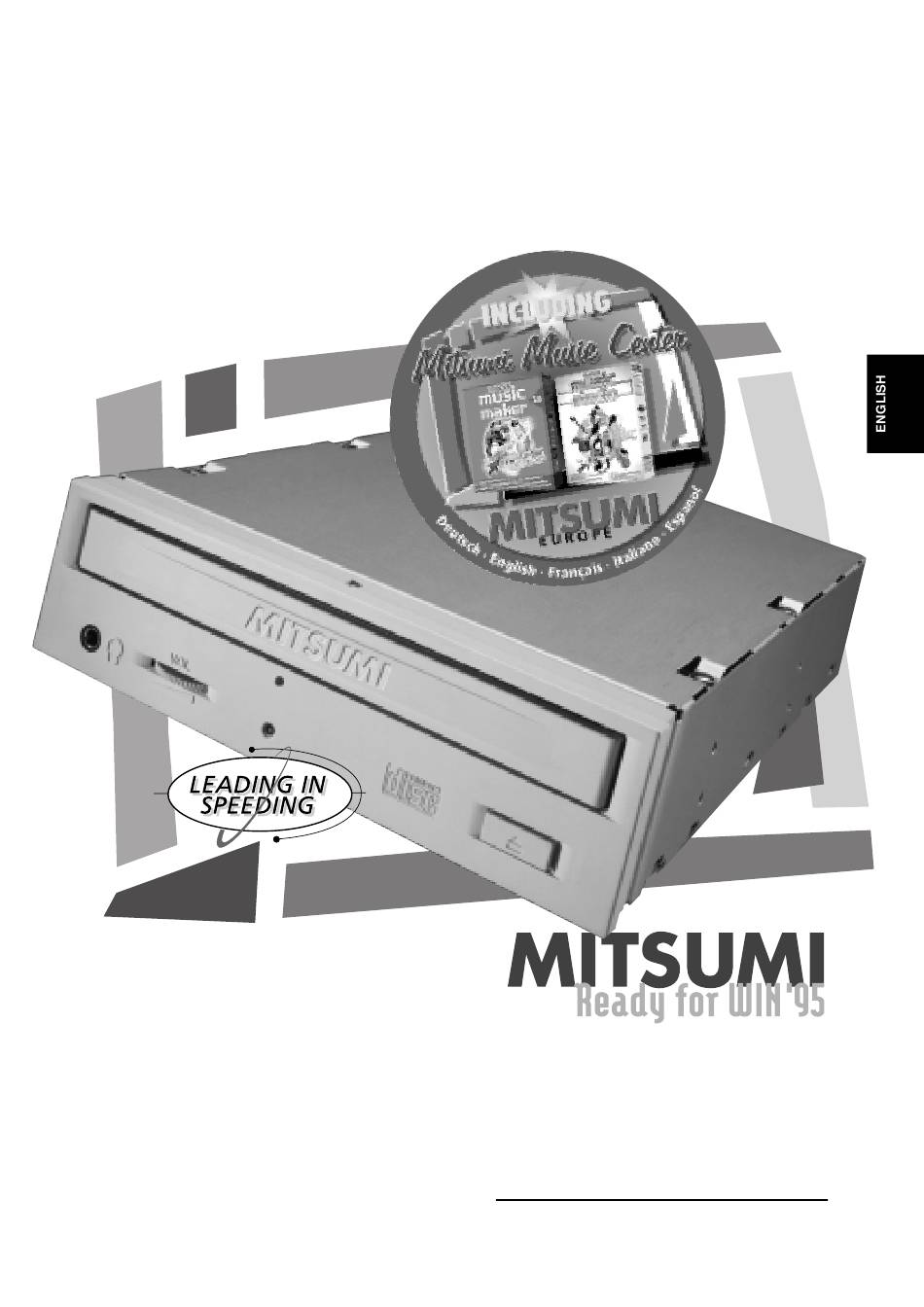

- Page 1 ATAPI IDE CD-ROM DRIVE Installation Manual Atapi CD-ROM...
-
Page 2: Table Of Contents
Safety Information Disk Usage Precautions............23 Disk Handling Precautions.............23 CD-ROM Drive Parts and Functions Front View ................24 Rear View................25 Installation..................26 CD-ROM Drive Installation ............27 Integration of the CD-ROM Into Your Operating System..28 Troubleshooting.................30 Support Hotline .................31 Glossary..................32 Appendix ...................34 ATAPI CD-ROM... -
Page 3: Introduction
Help on basic problems, such as the installation of Windows 95, the installati- on of sound cards from various manufacturers, or any software and hardware from other manufacturers, is not part of the help available from the Mitsumi hotline, since in most cases we do not have the necessary documentation. -
Page 4: Product Description
Eccitatore per DOS ® , WINDOWS 3.1. ® • Presa audio ATAPI ( è compreso nel volume di fornitura un un ´interfaccia secondaria IDE MITSUMI „MTM-2183“ (con • Eccitatore compreso in Windows NT 3.5. cavo audio ATAPI su spina standard SoundBlaster) uscita audio) •... -
Page 5: Safety Information
Always keep compact disks in their sleeves to prevent the delicate surface from being scratched or damaged. • CDs should only be cleaned with a soft, dry cloth by wiping in straight lines from the center outwards. Never use solvents, record cleaner or anti- static fluids of any kind. ATAPI CD-ROM... -
Page 6: Cd-Rom Drive Parts And Functions
4. Volume Control To control the volume output for connected headphones. 5. Eject Button Press lightly to open/close the disk tray. 6. Emergency Eject Use only to open the disk tray when the power is switched off. ATAPI CD-ROM... -
Page 7: Rear View
Port for the 40-pin interface (IDE ribbon cable). 9. Line Out (analog) Analog stereo output for right/left audio channel. 10. Device Configuration Block Setting of these jumpers is explained in the ”Installation” chapter. 11. Digital Line Out Digital stereo output for right/left audio channel. ATAPI CD-ROM... -
Page 8: Installation
Installation Before an ATAPI CD-ROM can be connected to an IDE or EIDE interface, it must be configured as „Master“ or „Slave“. This is done by setting the jumpers at the back of the unit. Warning: Please turn off all equipment and disconnect the computer power cord from the mains socket before you carry out the installation described below. -
Page 9: Cd-Rom Drive Installation
IDE controller will be needed for the IDE CD-ROM drive. This secondary IDE controller, part no. MTM2183, can be obtained at your Mitsumi dealer. You should, however, check first whether your computer does not already have an Enhanced IDE controller with a secondary IDE inter- face. -
Page 10: Integration Of The Cd-Rom Into Your Operating System
One important point is the fact that, depending on the driver or operating system used, your drive may be recognized only as Mitsumi ATAPI drive or an older Mitsumi CD-ROM drive model. Due to the hardware-independent ATAPI standard, however, this will not affect the speed of your drive. - Page 11 In Windows NT 3.5x the required configuration utility „Win-NT-Setup“ is in the ”Main” group. Start this utility and go to the Options menu item „Add/Remove SCSI adapters“, select the driver „IDE CD-ROM (ATAPI)“, confirm the selection, and reboot your computer.
-
Page 12: Troubleshooting
Please check if this involves an older cache controller (with or without its own BIOS). Unfortunately these are often not 100%-compatible with the ATAPI standard, even though this involves an EIDE controller. In such cases you should deactivate the secondary port on the cache controller card and install an additional secondary port to connect the CD-ROM. -
Page 13: Support Hotline
Support Hotline In addition to good product quality, MITSUMI also takes pride in providing excellent customer support. For this reason we are running the MITSUMI Electronics European Support Hotline to assist our customers with installation problems or questions at any time. -
Page 14: Glossary
IDE port, the so-called primary port, which can operate a maximum of two (E)IDE or ATAPI devices in a master/slave combination. EIDE can make use of a second IDE port, the secondary port, which can likewise ope- rate two devices. - Page 15 Plus). VIDEO FOR WINDOWS was developed by Microsoft. Together with Quicktime by Apple, it is the main format for the compression and playback of video data by means of a software program. The file extension is usually *.AVI. ATAPI CD-ROM...
-
Page 16: Appendix 1
Defines the port address for the drive (i.e. the memory address for the IDE port) and the IRQ (interrupt request). „xxx“ indicates the port address of the IDE port. xxx = primary port address (channel 1) secondary port address (channel 2) channel 3 channel 4 ATAPI CD-ROM... - Page 17 32 bit hard disk access activated and if your CD-ROM is connected to the same IDE port as your hard disk. This file is automatically installed with the installation program SETUPD. If manual installation is necessary, simply add the following line to the [386enh] section of Windows SYSTEM.INI: DEVICE=[Drive:][Path]MTMCDAI.386 ATAPI CD-ROM...
- Page 18 Allows the CD-ROM drive to be shared in a local network. Microsoft is a registered trademark of Microsoft Corporation. MS-DOS is a registered trademark of Microsoft Corporation. Windows is a registered trademark of Microsoft Corporation. IBM is a registered trademark of International Business Machines Corporation. ATAPI CD-ROM...
