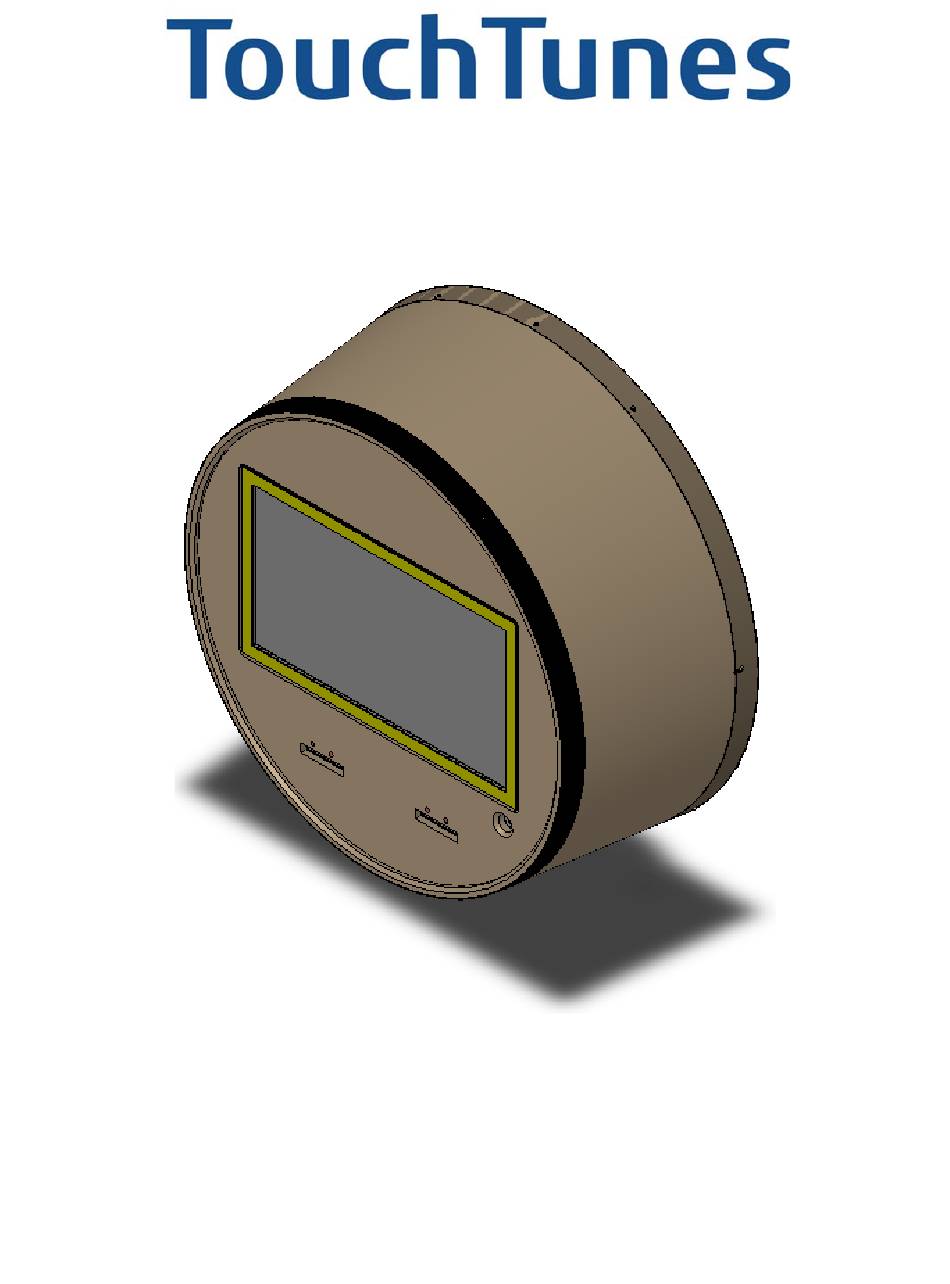

  • Page 1 Fusion Music System Barrel Facade Installation Guide...
  • Page 3 Guide. • TouchTunes will not be held liable for any damages resulting from the use of this Guide or the product(s) described in this Guide. TOUCHTUNES PROVIDES NO WARRANTY WITH REGARD TO THIS GUIDE OR ANY OTHER...
  • Page 4 TouchTunes' copyrighted material. Intellectual Property All Intellectual Property (as defined below) owned by or which is otherwise the property of TouchTunes or its respective suppliers or licensors relating to Fusion Music System, including accessories, parts or software relating thereto (the "Product"), is proprietary to TouchTunes and protected under Federal and State laws and international treaty provisions.

  • Page 5: Table Of Contents

    Installing the Fusion Music System Barrel Facade ....... . .

  • Page 7: Welcome

    Welcome This section introduces the Fusion Music System (FMS) Barrel Facade, provides important safety information, and describes how to get technical support. Topics Welcome About This Guide Disclaimer and Important Safety Information Contacting TouchTunes Fusion Music System Barrel Facade Installation Guide 901096-001 Rev 00...

  • Page 8: Welcome

    About This Guide This guide is intended for Operators of the Fusion Music System Barrel Facade and their technicians, as well as TouchTunes technical support and field service personnel. It provides important information about the installation of the Fusion Music System Barrel Facade.

  • Page 9: Contacting Touchtunes

    Welcome Contacting TouchTunes If you need help or have questions about this guide, call the TouchTunes 24/7 Service Hotline at 888-338-5853. To help us assist you more effectively with problem reports, the following information may be required when contacting TouchTunes Technical Support: •...
  • Page 10 Welcome Fusion Music System Barrel Facade Installation Guide...

  • Page 11: Introducing Fusion Music System Barrel Facade

    Introducing Fusion Music System Barrel Facade This section introduces the Fusion Music System Barrel Facade. Topics Introducing Fusion Music System Barrel Facade Fusion Music System Barrel Facade Installation Guide 901096-001 Rev 00...

  • Page 12: Introducing Fusion Music System Barrel Facade

    Introducing Fusion Music System Barrel Facade Introducing Fusion Music System Barrel Facade Introducing Fusion Music System Barrel Facade TouchTunes introduces the Fusion Music System Barrel Facade, a fun new way to attract patrons of the Fusion Music System. Fusion Music System Barrel Facade Installation Guide...

  • Page 13: Installing The Barrel Facade

    Installing the Barrel Facade This chapter explains how to install the Fusion Music System Barrel Facade. Topics Prerequisites Installing the Fusion Music System Barrel Facade Fusion Music System Barrel Facade Installation Guide 901096-001 Rev 00...

  • Page 14: Prerequisites

    Setup Guide to complete the Fusion Music System setup. Installing the Fusion Music System Barrel Facade 1. Unpack the Fusion Music System Barrel Facade. The facade is delivered with the Fusion Music System in its own packaging. 2. Ensure that the Fusion Music System door is locked.
  • Page 15 Installing the Barrel Facade Installing the Fusion Music System Barrel Facade 4. Slide the Fusion Music System screen up slightly from its bottom panel and then lift it out. Opening the Fusion Music System screen Fusion Music System Barrel Facade Installation Guide...
  • Page 16 Installing the Barrel Facade Installing the Fusion Music System Barrel Facade CAUTION: Be careful not to pinch your fingers when opening and closing the screen brackets. 5. Set the two L brackets on the FMS to the locked position to ensure the screen is secured in the upright position.
  • Page 17 Installing the Fusion Music System Barrel Facade 6. Place the barrel facade over the FMS so that the screen passes through the opening at the center of the barrel. Placing the barrel over the Fusion Music System chassis Fusion Music System Barrel Facade Installation Guide...
  • Page 18 Installing the Barrel Facade Installing the Fusion Music System Barrel Facade 7. Align the wooden struts with the metal plates located on top of the Fusion Music System chassis as you slide the barrel into place. Aligning wooden struts with metal brackets 8.
  • Page 19 Music System. The location of the for the wing bolts corresponds to the location of the metal brackets identified in step 7 (and circled in green in the following figure). Location for wing bolts (interior of the Fusion Music System) Fusion Music System Barrel Facade Installation Guide...
  • Page 20 Pulling the barrel latch release mechanism 12. Close and lock the Fusion Music System screen. 13. For first time install of the Fusion Music System, return to the Fusion Music System Installation and Setup Guide to complete the installation and setup procedures.
  • Page 23 The Octave Music Group, Inc. Technical Support 7250 Mile End, Suite 202 888-338-5853 850 Third Ave, 15th Floor Montreal, Quebec, www.touchtunes.com New York, NY 10022 Canada, H2R 3A4 Copyright © 2018 The Octave Music Group, Inc. (formerly known as TouchTunes Interactive Networks, Inc.)
  • Page 24 901096-001 Rev 00...
