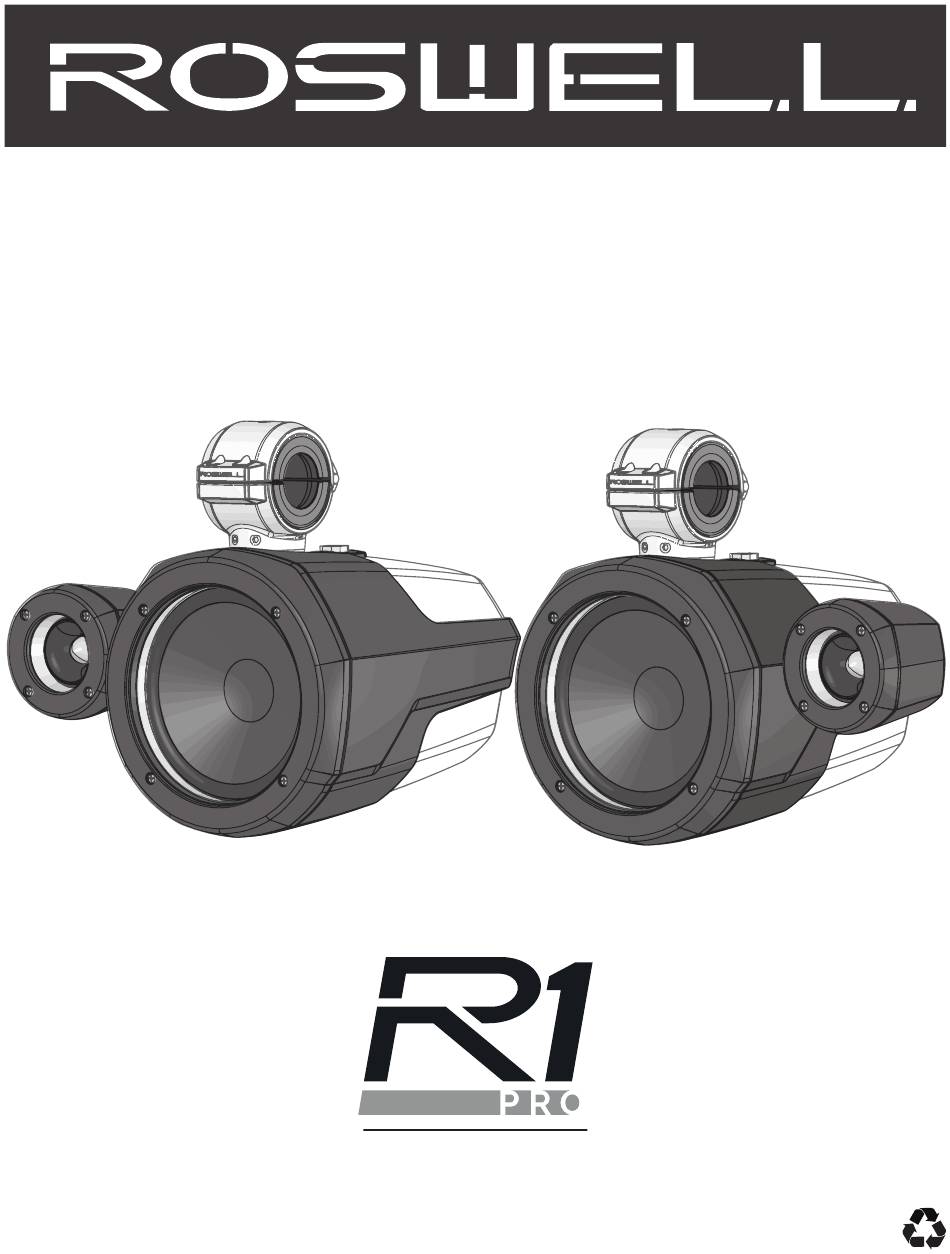

- Page 1 R1 Pro speakers # C920-1910 Information: info@roswellmarine.com Warranty: warranty@roswellmarine.com If you have any questions please call : 1-321-638-1331 www.roswellmarine.com REV. 190611...
-
Page 2: Table Of Contents
Welcome to the Family. We at Roswell started a revolution in the wakeboard industry back in 1998, and have since expanded into marine audio and other branches of the marine industry. Even now, 20 years later, we continue to push the boundaries. -
Page 3: Features
With its new and improved woofer and tweeter you can listen to your music at new levels. On top of hearing your music louder and clearer the R1 Pro has a patent pending emissive housing that allows you to customize the color of the rear housing to... -
Page 4: Warnings
Allen keys in your boat. Even with threadlock bolts can still loosen over time. NEVER USE CLEANERS ON YOUR SPEAKERS, The R1 Pro is a plastic housing and using cleaners can ruin the finish of your product. A mild soap and water combination can be used to remove traveling grime or water spots. -
Page 5: Preparation
Note: You will need to provide your own in boat and tower wiring unless your boat has already been set up to the configurations you desire. Roswell recommends using 16 gauge wire for the audio connections and 18 gauge wire for the 12-volt LED connections. -
Page 6: Wiring
Wiring www.roswellmarine.com Output Blue 12V (-) Blue Tower Wiring Speaker Wiring Harness Green 12V (-) Green 12V (-) Optional - For use with RGB Controller Blue 12V (-) Blue LED (-) Green Green Optional - For use with RGB Controller 12V (-) Yellow 12V (-) - Page 7 Wiring | Installation www.roswellmarine.com Tower Wires Heat Gun Crimps Wire Strippers Connectors Strip 1/4” off of the wires and crimp the splice connectors to the corresponding wires. Once attached use a heat gun on the heat shrink to seal the connections. Speaker Harness NOTE: The illustrated Aviator tower is not pre wired for the RGB controller.
-
Page 8: Installation
Installation www.roswellmarine.com 5/8”-11 x 1” 5/8”-11 x 0.5” Allen Key 5/16 1.90” Insert 2.375” Insert 3.0” Insert Start by unscrewing the two clamp bolts and the one set screw located at top of the clamp using a 5/16” Allen key. Next open the clamp. Once ready, select the correct size of insert and place it in the clamp. - Page 9 Roswell Limited Warranty Roswell warrants all new R1 Pro Tower Speakers against defects in material and workmanship for a period of TWO (2) YEARS from the original date of purchase. This warranty is not transferable and applies only to the original retail purchaser from an authorized Roswell retailer.
-
Page 10: Wiring Diagram
Wiring Diagram www.roswellmarine.com...
