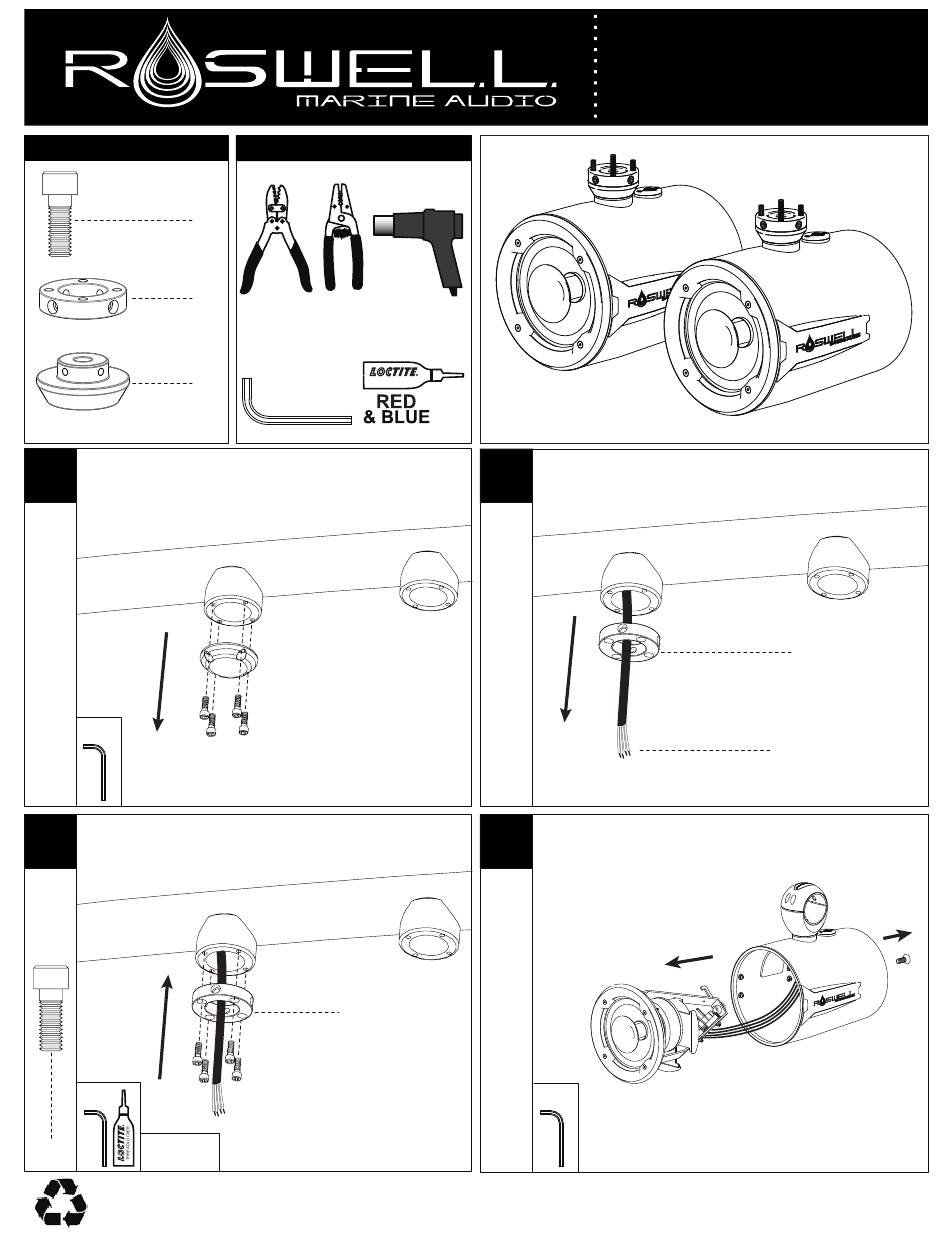

Adapter Hardware
x8
1/4-20 UNC x 0.75"
x2
ADAPTOR PLATE
x2
LOWER ADAPTOR
A
Choose the two mounting nubs on the tower you want to
use and remove the caps.
3/16"
C
Mount the adapter plate to the first nub using 4 bolts. Use
RED Loctite. Torque bolts to 15 ft-lb.
3/16"
Torque bolt
x4
to 15 ft-lb
Tools Required
WIRE
WIRE
STRIPPERS
CRIMP
HEAT GUN
THREADLOCKER
7/32" Allen Key
3/16" Allen Key
Adapter plate
MC Aquatone 6.5 HLCD
Installation Instructions
B
Pull the speaker wires out of the tower and insert them
through the hole in the adapter plate.
D
Remove the rear flathead bolt on the back of the speaker
housing and pull the speaker assembly with spine out of
the housing to access bolts beneath the clamp.
7/32"
Adapter plate
Pull wires through
Pg. 1/3
Rev. 21-Oct-13
Advertisement
Table of Contents
Related Manuals for Roswell MC Aquatone 6.5 HLCD
Summary of Contents for Roswell MC Aquatone 6.5 HLCD
- Page 1 MC Aquatone 6.5 HLCD Installation Instructions Adapter Hardware Tools Required 1/4-20 UNC x 0.75” WIRE WIRE STRIPPERS CRIMP HEAT GUN ADAPTOR PLATE THREADLOCKER 7/32" Allen Key 3/16" Allen Key LOWER ADAPTOR Choose the two mounting nubs on the tower you want to Pull the speaker wires out of the tower and insert them use and remove the caps.
- Page 2 MC Aquatone 6.5 HLCD Installation Instructions Using wire cutters, sever the wires from the Deutsch Remove the universal clamp by unbolting the 4 X 3/8” bolts inside of the housing. Keep these bolts, you will need them connector inside the speaker can.
- Page 3 Black Once the speaker wires are connected, re-insert the speaker assembly into the can. Ensure the speaker is oriented with Roswell Logo on the bottom. Using the flathead bolt from Step D, apply BLUE Loctite and re-fasten the speaker assembly to the can.
