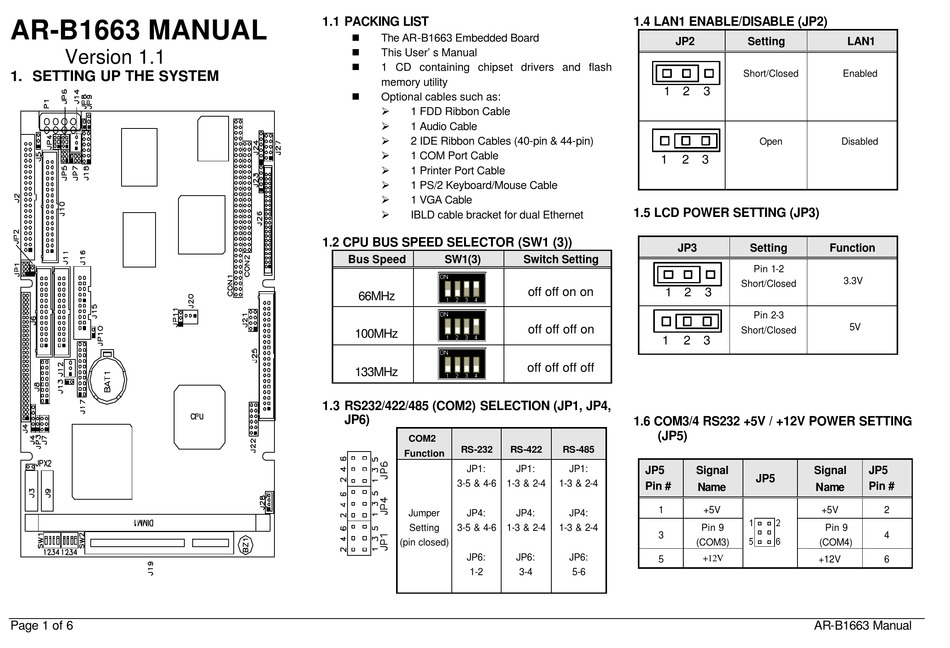

1. SETTING UP THE SYSTEM

Page 1 of 6

1.1 PACKING LIST

n
The AR-B1663 Embedded Board
n
This User's Manual
n
1 CD containing chipset drivers and flash
memory utility
n
Optional cables such as:
Ø
1 FDD Ribbon Cable
Ø
1 Audio Cable
Ø
2 IDE Ribbon Cables (40-pin & 44-pin)
Ø
1 COM Port Cable
Ø
1 Printer Port Cable
Ø
1 PS/2 Keyboard/Mouse Cable
Ø
1 VGA Cable
Ø
IBLD cable bracket for dual Ethernet

1.2 CPU BUS SPEED SELECTOR (SW1 (3))

Bus Speed SW1(3)
66MHz
100MHz
133MHz
1.3 RS232/422/485 (COM2) SELECTION (JP1, JP4,
JP6)
COM2
RS-232
Function
JP1:
3-5 & 4-6
Jumper JP4:
Setting 3-5 & 4-6
(pin closed)
JP6:
1-2

1.4 LAN1 ENABLE/DISABLE (JP2)

JP2
1 2
1 2

1.5 LCD POWER SETTING (JP3)

JP3
Switch Setting
off off on on
1 2
off off off on
1 2
off off off off
1.6 COM3/4 RS232 +5V / +12V POWER SETTING
(JP5)
RS-422 RS-485
JP1: JP1:
JP5
1-3 & 2-4 1-3 & 2-4
Pin #
1
JP4: JP4:
1-3 & 2-4 1-3 & 2-4
3
JP6: JP6:
5
3-4 5-6
Setting LAN1
Short/Closed Enabled
3
Open Disabled
3
Setting Function
Pin 1-2
3.3V
Short/Closed
3
Pin 2-3
5V
Short/Closed
3
Signal Signal JP5
JP5
Pin #
Name Name
+5V +5V
Pin 9 Pin 9
(COM3) (COM4)
+12V
+12V
