Page 1

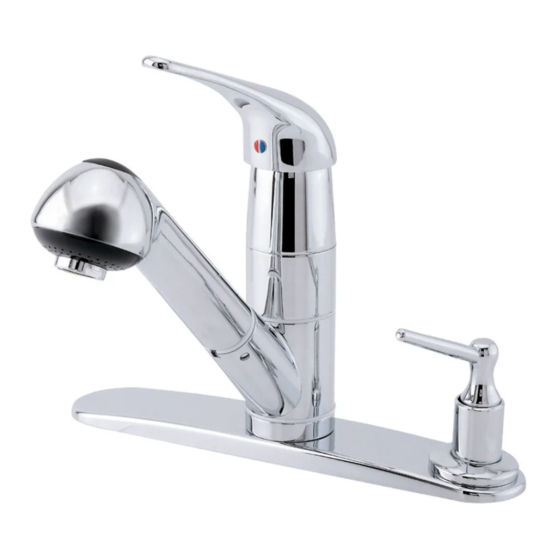

D455612 ® Pull Out Kitchen Faucet Grifo de Cocina Con Rociador Retractable Robinet D'évier À Arroseur Rétractable Before Your Installation Antes de Instalar Avant l’installation Check to make sure you have the following parts indicated below: Tools You Will Need...
Page 2
Danze always recommends that plumbing products be installed by a licensed professional. Danze aconseja siempre que sea un profesional autorizado quien instale los productos de plomería. Danze recommande que les articles de plomberie soient toujours installés par un professionnel qualifié.
Page 3
(11) (33) (10) Loosen screw on adaptor (10) at the end of spray hose (11), push Attach metal weight (33) to hose to prevent hose from adaptor with hose coupling until you hear a "click". Tighten with twisting and returns hose to proper position. screw.
Page 4
Remove the chrome pump nozzle and Install bottle shank up through left hole in sink and screw the soap dispenser connector plastic pump from soap dispenser (26) onto the shank. Attach metal washer and tighten with lock nut. assembly. Unscrew the bottle, lock nut and metal washer.
Page 5
Trouble-Shooting/Guía de Solucionar Problemas/Dépannage If you've followed the instructions carefully and your faucet still does not work properly, take these corrective steps. Si usted ha seguido las instrucciones cuidadosamente y su grifo todavía no funciona correctamente, sigue estos pasos correctivos. Si vous avez suivi attentivement les instructions et que votre robinet ne fonctionne toujours pas correctement, apporter les correctifs suivants.
Page 6
A203000 . Flange/Brida/Bride A211000 ☉ 32. Washer/Arandela/Rondelle A013011ZN 33. Weight/Pesas/Poids A504079 D455612 (V6) 34. Wrench For Aerator/Llave para aireador/ A031001NI Clé pour brise-jet 35. Allen Wrench (1/8")/Llave Allen(1/8 pulg.)/ A031000 Clé Allen(1/8 po) Need Help? Please call our toll-free Customer service line at 1-888-328-2383 for additional assistance or service.
