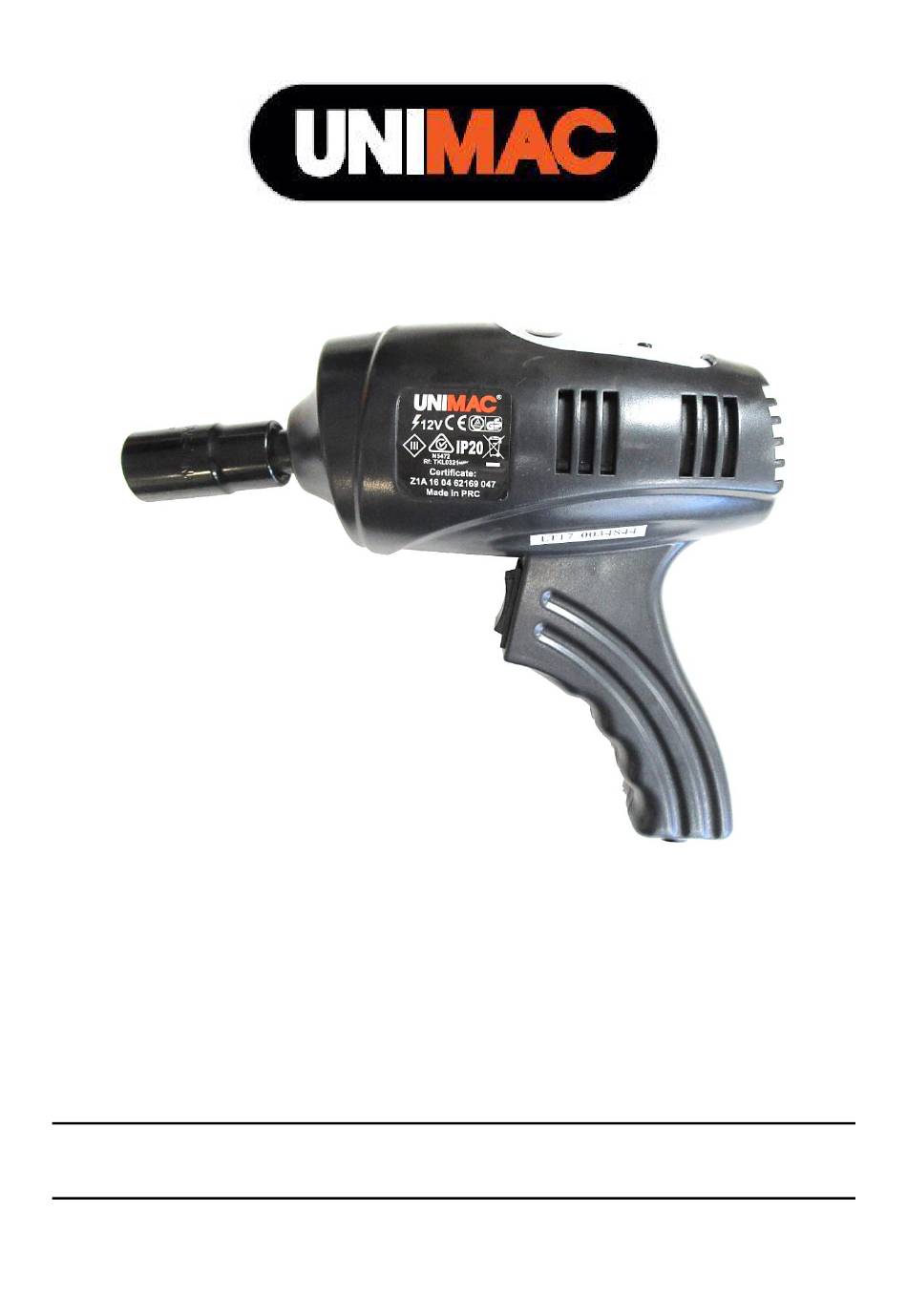

12V Adjustable Torque ½" Drive Impact
Wrench / Rattle Gun
User Manual
[Revision 1.0 December 2017]
READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY
DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by
this manual may vary in appearance, assembly, inclusions, specifications, description and packaging.
E&OE
© 2017 Unimac
Advertisement
Table of Contents
Related Manuals for Unimac ATOIMPUMCA12V
Summary of Contents for Unimac ATOIMPUMCA12V
- Page 1 READ THIS MANUAL CAREFULLY BEFORE USE – FAILURE TO DO SO MAY RESULT IN INJURY, PROPERTY DAMAGE AND MAY VOID WARRANTY. • KEEP THIS MANUAL FOR FUTURE REFERENCE. • Products covered by this manual may vary in appearance, assembly, inclusions, specifications, description and packaging. E&OE © 2017 Unimac...
-
Page 2: Safety
• Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that safety of the tool is maintained. Intended Use • Tightening / loosening fasteners (screws, bolts etc) E&OE © 2017 Unimac... -
Page 3: Table Of Contents
Direct Battery Connection ......................5 Operation ............................6 Changing Sockets ........................6 Setting Torque .......................... 6 Selecting Direction ........................6 Guidelines for Use ........................7 Maintenance and Troubleshooting ....................8 Fuse Replacement ........................8 Troubleshooting ........................8 Specifications ..........................8 E&OE © 2017 Unimac... -
Page 4: Parts Identification
Note that some drill bits / accessories may come supplied with the tool. Name Name Tool Body 12VDC Electrical Cable / Vehicle Adaptor Drive Pin Battery Connection Adaptor Trigger / Forward / Reverse Selector 17 / 19mm Socket Torque Setting Controls 21 / 23mm Socket E&OE © 2017 Unimac... -
Page 5: Electrical Connection
("+") battery terminal. 2. Attach the battery connection adaptor cable BLACK NEGATIVE ("-") battery terminal clamp to the NEGATIVE ("-") battery terminal. 3. Plug the tool 12VDC vehicle adaptor into the battery connection adaptor cable adaptor socket . E&OE © 2017 Unimac... -
Page 6: Operation
Similarly, the direction of rotation can be "reverse" (left or anti- clockwise) for screwing out / loosening. ▼ • To rotate forward, push the trigger (F) " " arrow. ▲ • To rotate in reverse, push the trigger (F) " " arrow. E&OE © 2017 Unimac... -
Page 7: Guidelines For Use
When tightening, wait for "end" to show on the display – this means that the set torque has been reached. • Always hold the tool "square" to the fastener. That is, screw straight. Do not apply sideways pressure to the tool. • Apply sufficient pressure to prevent the socket slipping from the fastener head. E&OE © 2017 Unimac... -
Page 8: Maintenance And Troubleshooting
"end" to display to ensure set torque is reached. Specifications Electrical Requirements 12VDC Drive Pin Size ½" Square Drive Torque Range 80 to 340 Nm Fuse 15A Automotive "Cartridge" Type E&OE © 2017 Unimac... - Page 9 ©2017 Unimac. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
