Summary of Contents for FERREX FSD 3.6

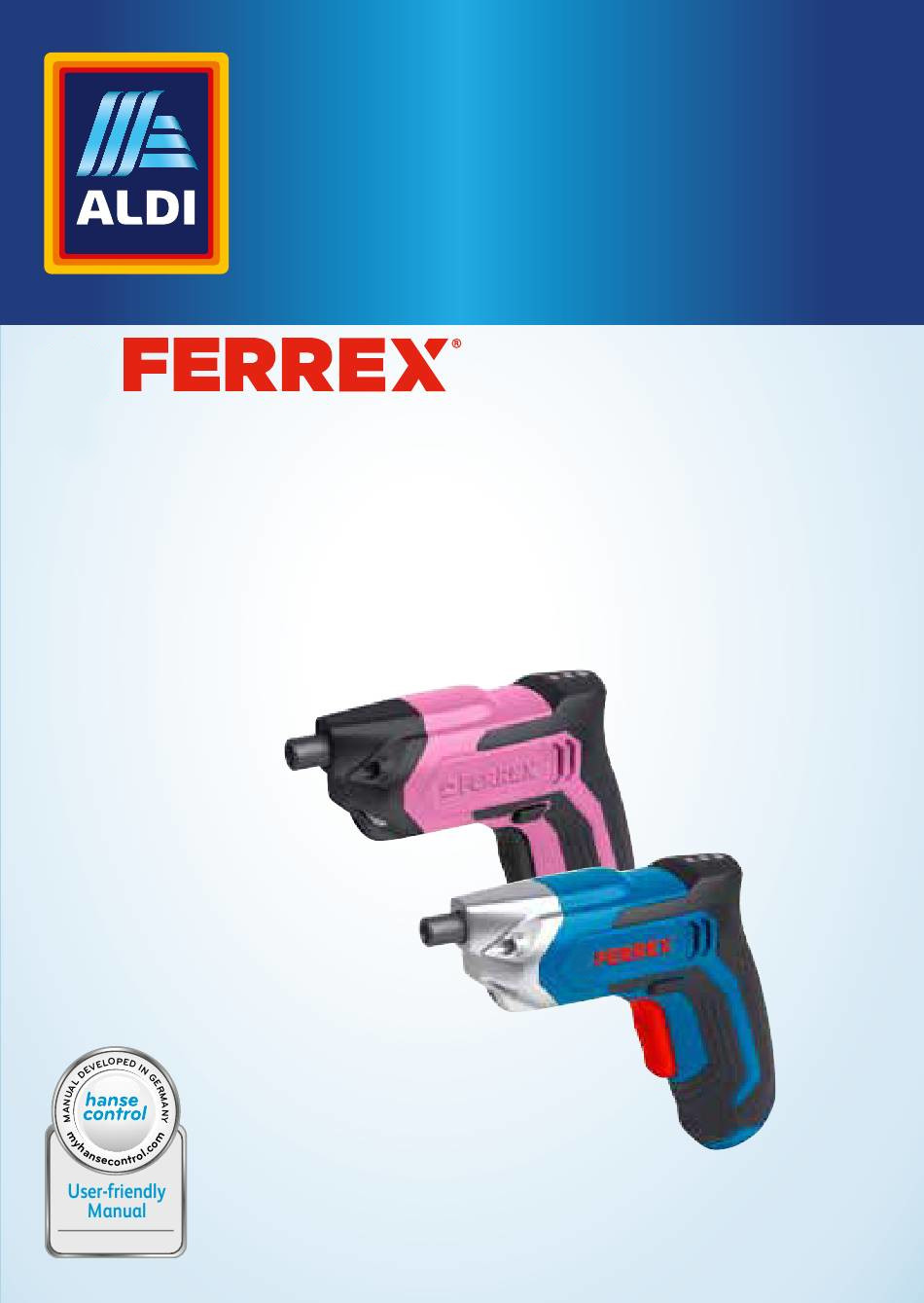

- Page 1 User Manual 3.6 V LI-ION SCREWDRIVER FSD 3.6 FSD 3.6P Original user manual ID: #05007...
-
Page 2: Table Of Contents
Contents Package contents ............3 Components ..............6 General information ............7 Reading and storing the user manual ......7 Explanation of symbols .............7 Safety ................8 Explanation of notes ............8 Proper use ................9 Residual risks ..............10 Special safety instructions for screwdrivers ....17 Safety instructions for chargers ........ -
Page 3: Package Contents
Package contents Package contents... - Page 4 Package contents PH0 PH1 PH2 PH2 PH3 PH0 PH1 PH2 PH3 PZ2 PZ2 PZ2 T20 T27...
- Page 5 Package contents...
-
Page 6: Components
Package contents Components Screwdriver Screwdriver handle Micro-USB charging port LED charge level indicator On/Off switch (with built-in light switch) Switch for right-handed/left-handed rotation Bit receptacle LED working light Storage bag Micro-USB charger Bit, 27× Magnetic bit holder... -
Page 7: General Information
General information General information Reading and storing the user manual This user manual accompanies this 3.6 V Li-Ion screwdriver (referred to below only as the “screwdriver”). It contains important information about start-up and handling. Before using the screwdriver, read the user manual carefully. This particularly applies to the safety instructions. -
Page 8: Safety
General information This symbol identifies devices that are operated with direct current. This symbol identifies double insulated electric devices. This symbol shows the polarity of the device. Products marked with this symbol may only be operated in indoor areas. Read the user manual before use. Important! Read the user manual for the charger. -
Page 9: Proper Use
Safety CAUTION! This signal symbol/word designates a hazard with low risk that, if not avoided, may result in minor or moderate injury. NOTICE! This signal word warns against potential damages to property. Proper use The screwdriver is only designed for light screw driving. The screwdriver has not been designed for commercial use, use in the trades or for industrial applications;... -
Page 10: Residual Risks
Safety Any other applications are expressly prohibited and are deemed improper use. • Using the screwdriver for other than the intended purposes; • Failure to observe the safety instructions and warnings as well as the assembly, operating, maintenance and cleaning instructions contained in this user manual; •... -
Page 11: Electrical Safety
Safety General power tool safety instructions WARNING Read all the safety notes, instructions, illustrations and technical details supplied with this power tool. Failure to follow the safety notices and instructions may result in an electric shock, fire and/or severe injury. Save all warnings and instructions for future reference. -
Page 12: Personal Safety
Safety b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. c) Do not expose power tools to rain or wet conditions. - Page 13 Safety b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries. c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool.
- Page 14 Safety h) Do not be lulled into a false sense of security and ignore the safety rules for power tools, even if you are well acquainted with power tools, having used them frequently. Using power tools without due care and attention can cause serious injuries in a split second.
- Page 15 Safety e) Maintain power tools and insertion tools with care. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If any parts of the power tool are damaged, have them repaired before use.
- Page 16 Safety b) Only use the rechargeable batteries designated for use in power tools. Using other rechargeable batteries may result in injury and a risk of fire. c) Keep the unused rechargeable battery away from paper clips, coins, keys, nails, screws or other small metallic objects that could bridge the contacts.
-
Page 17: Special Safety Instructions For Screwdrivers
Safety Service a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never perform maintenance on damaged rechargeable batteries. Only the manufacturer or authorised service companies may perform maintenance on rechargeable batteries. - Page 18 Safety Proper use of the charger Improper use of the charger could result in risks and damages. Therefore, carefully read through the following notes. a) Before using the charger, read through all instructions and all precautionary measures for the charger and rechargeable battery. You can find notes in these instructions and on the device itself amongst others.
- Page 19 Safety g) Only use the charger for private use in connection with a normal household socket. Never attempt to connect the charger with a mains socket with a different voltage rating. h) Always make sure there is adequate ventilation when recharging the rechargeable battery. Gases may be produced.
-
Page 20: Further Safety Instructions
Safety o) Always lay the mains cord so that no one can trip over it, step on it or otherwise damage it. Otherwise there is a risk of damage to property and injury. p) Always disconnect the charger from the power supply after use. -
Page 21: First Use
First use First use Checking the screwdriver and package contents WARNING! Danger of suffocation! Children could swallow small parts and choke. − Keep children away from the small parts. 1. Take the screwdriver out of the packaging. 2. Check to make sure that all parts are included (see fig. A–D). 3. - Page 22 First use NOTICE! Risk of damage! Failure to properly charge the rechargeable battery may damage the rechargeable battery, the charger and the screwdriver. − Charge the rechargeable battery at an ambient temperature between 0 °C and 45 °C. The ideal temperature for charging the rechargeable battery is approx.
- Page 23 First use Rechargeable batteries based on Lithium-Ion technology (Li-Ion) offer clear advantages when compared to conventional Ni-Cd rechargeable batteries: • No memory effect. The rechargeable battery can be recharged at any time regardless of the charge level and without any loss of capacitance.
-
Page 24: Operation And Functioning
Operation and functioning 5. Let the screwdriver cool down to room temperature if it was heating up during the charging process etc. The screwdriver is now operational. Operation and functioning Inserting tools Bits with a length of 50 mm or more can be inserted directly in the bit receptacle . -
Page 25: Using The Led Working Light
Operation and functioning − Drive in a few test screws to get a feeling for operating the screwdriver. • Switching the device on: Push and hold the On/Off switch The screwdriver will now begin to operate. Hold the On/Off switch while driving in screws. •... -
Page 26: Determining The Direction Of Rotation
Troubleshooting Determining the direction of rotation You can use the screwdriver to drive screws in and remove them. Proceed as follows to set the direction of rotation: Driving in screws: 1. Push the switch for right-handed/left-handed rotation on the right side of the screwdriver handle into the housing. - Page 27 Troubleshooting Problem Possible cause Solution The rechargeable − Charge the screwdriver battery does not rechargeable battery cannot be have enough (see chapter „Charging started. power. the rechargeable battery“). The switch for right- − Depending on the handed/left-handed desired direction of rotation, push rotation is in the the switch for right-...
-
Page 28: Repairs
Repairs Repairs WARNING! Risk of electric shock! Repairs performed by the user or the use of unsuitable spare parts to repair the device poses an increased risk of electric shock. − Do not open the housing. Liability and warranty claims are waived in the event of repairs performed by the user, improper connection of the device or incorrect operation. -
Page 29: Cleaning And Storage
Cleaning and storage Cleaning and storage NOTICE! Risk of damage! − Improper handling of the screwdriver may result in damage. − Do not use any aggressive cleaners, brushes with metal or nylon bristles, sharp or metallic cleaning utensils such as knives, hard scrapers and the like. - Page 30 Cleaning and storage − Storing discharged or partially discharged rechargeable batteries can cause deep discharge. This will destroy the cells of the rechargeable batteries and render the rechargeable battery useless. 1. Before cleaning, remove the mains plug of the micro-USB charger from the mains socket.
-
Page 31: Technical Data
Technical data Technical data 3.6 V Li-Ion screwdriver Article number: 98770 Model: FSD 3.6/ FSD 3.6P Model number: WU5902373/WU5902374 Idle speed: 220 rpm Bit receptacle: 6.35 mm (1/4") Rechargeable battery Voltage: 3.6 V Capacity: 2 Ah Type: Lithium ion rechargeable... -
Page 32: Noise/Vibration Information
Noise/vibration information Noise/vibration information WARNING! Health hazard! Working without ear protection and suitable protective clothing poses a health hazard. − Wear ear protection and suitable protective clothing when working with the device. The specified total vibration value and noise emission values have been measured according to a standardised test method (DIN EN 62841-2-2) and can be used to compare power tools with one another. - Page 33 Noise/vibration information Try to keep the noise and vibration emissions as low as possible. The following are examples of measures you can take to reduce vibration emissions: • wearing gloves when using the tool • limiting the working hours • using accessories that are in good condition •...
- Page 34 Noise/vibration information ATTENTION! The aforementioned vibration emission level (vibration value) has been measured in accordance with a test method standardised in DIN EN 62841-2-2 and can be used to compare one power tool to another. It is also suited for preliminary estimation of exposure to vibration.
-
Page 35: Disposal
Disposal Disposal Disposing of the packaging Dispose of the packaging separated into single type materials. Dispose of paperboard and cardboard with wastepaper and plastics with recyclable waste. Disposing of the screwdriver Old devices must not be disposed of with household waste! If the screwdriver can no longer be used, please ensure that you dispose of it separately to your... - Page 36 Disposal Batteries and rechargeable batteries do not belong in the household waste! As the end user you should dispose of all batteries and rechargeable batteries, regardless of whether they contain harmful substances* or not, via a collection point run by your Local Authority, or to a participating retailer, so that they can be disposed of in an environmentally friendly manner.
-
Page 37: Declaration Of Conformity
42349 Wuppertal Germany EC Declaration of Conformity We declare with sole responsibility, 3.6 V LI-ION CORDLESS SCREWDRIVER FSD 3.6 / FSD 3.6P that the product listed below … + Charger FSD 3.6/2b WU5902373/5902374 • 98770 • 11/2019 … meets all of the requirements... - Page 38 ALDI STORES LTD. PO BOX 26, ATHERSTONE WARWICKSHIRE, CV9 2SH ALDI STORES (IRELAND) LTD. PO BOX 726, NAAS, CO. KILDARE. Visit us at www.aldi.com AFTER SALES SUPPORT 98770 00800 34 99 67 53 meister-service@conmetallmeister.de YEAR MODEL: FSD 3.6 / FSD 3.6P / WU5902373/ WARRANTY WU5902374 11/2019...
