This is a factory replacement kit. The blowers are aftermarket
models with LIMITED INSTRUCTIONS!

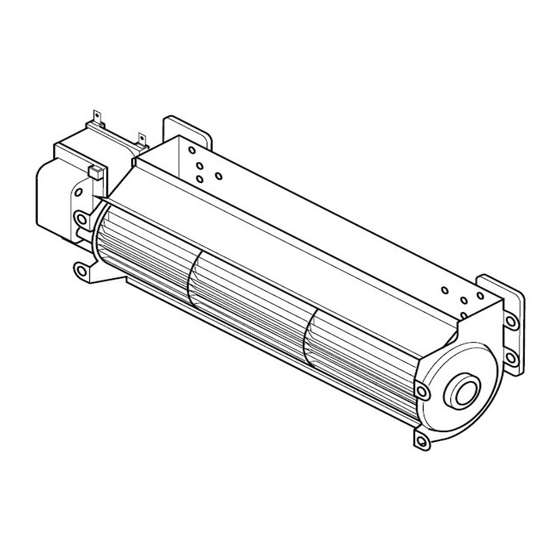

MODEL BK
MANUALLY CONTROLLED
BLOWER
(Both blower fits are for Desa, FMI, Vanguard, Vexar, Comfort, Flame Glow, Rotom brands fireplace.)
GA3650 GA3650B
GA3700 GA3700A
GA3750 GA3750A
WARNING: ELECTRICAL GROUNDING INSTRUCTIONS
This appliance is equipped with a three-prong (grounding) plug for your protection against shock hazard and
should be plugged directly into a properly grounded three-prong receptacle.
Installation Precautions
The BK & BKT Blower Kit is tested and safe when installed in accordance with this installation manual.
It is your responsibility to read all instructions before starting installation and to follow these instructions
carefully during installation to ensure maximum benefit from, and safe operation of the fan.
WARNING
Shock Risk / Explosion Risk
- DO NOT wire 110-120 VAC to gas control valve
- DO NOT wire 110-120 VAC to wall switch
•
Incorrect wiring will damage millivolt values
•
Incorrect wiring will override IPI safety lockout and
may cause explosion
Tools required
•
Pliers
•
Phillips Screwdriver
•
Flat Blade Screwdriver

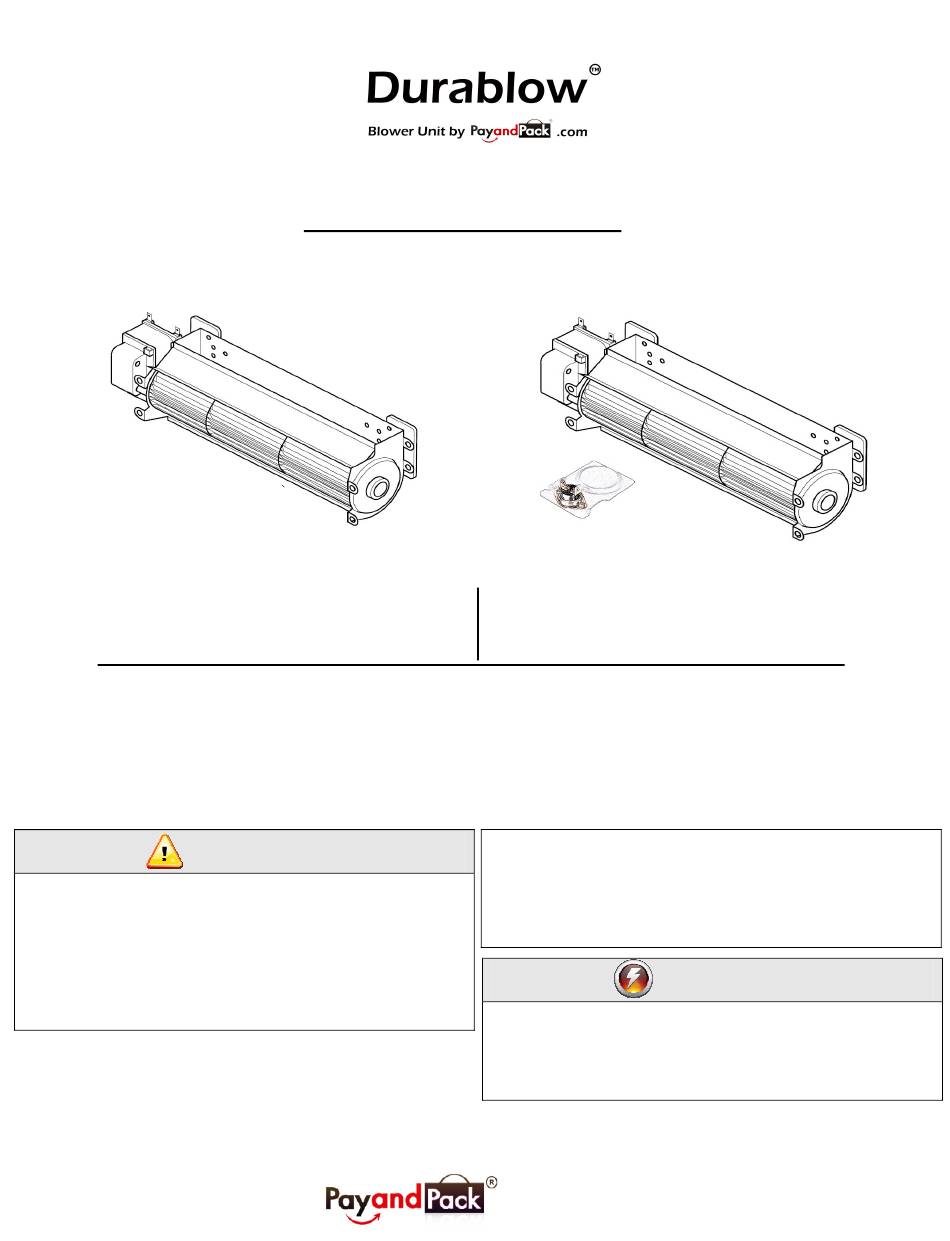

INSTALLATION INSTRUCTIONS
info@payandpack.com
Model BK, BKT Blower Fan Kit
Intended to be installed by a qualified technician.
If any of these pieces are missing or damaged, or if the installation instructions for your fire-
place or stove are not included in this manual, contact the dealer where you purchased this
kit or email us on PayandPack.com for referral information.
PayandPack.com
NOT original parts.
NOTE:
This appliance must be electronically wired and
grounded in accordance with local codes, or in the absence of
local codes, with National Electric Code ANSI/NFPA 70-
latest edition or the Canadian Electric Code CSA C22.1
Sharp Edges
•
Wear protective gloves and safety glasses during
installation
Page 1
MODEL BKT
THERMOSTATICALLY
CONTROLLED BLOWER
GA3650T GA3650TB
GA3700T GA3700TA
CAUTION
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for PayandPack Durablow BK
Summary of Contents for PayandPack Durablow BK
- Page 1 If any of these pieces are missing or damaged, or if the installation instructions for your fire- • Phillips Screwdriver place or stove are not included in this manual, contact the dealer where you purchased this kit or email us on PayandPack.com for referral information. • Flat Blade Screwdriver Page 1...
- Page 2 The BK and BKT blowers utilize the same rotary squirrell cage type blower with velcro WARNING: If there is a duplex attachment and variable speed control. The electrical outlet installed in the BKT also includes an additional thermostati- right side of the bottom of the cally controlled feature for use on some direct- fireplace base area (see Figure vent models only.
- Page 3 REMOVING LOUVER PANEL ( ) ( ) f or SOME MODELSe e e e e WOOD, B-VENT AND VENT-FREE DIRECT-VENT MODELS MODELS There are two different types of direct vent For models other than direct-vent, remove louvers: spring latch and bullet-style clip. panel or stamped face louver by snapping Spring Latch: Remove louver with spring out the front with a flat blade screwdriver (see...
- Page 4 MODEL BK WIRE MODEL BKT WIRE ASSEMBLY ASSEMBLY Note: Speed control switches can not be Note: The BKT blower is for application into installed into filigree panels. Installing a wall direct-vent models only. When installing the switch or thermostat in the wall outside of BKT thermostatically-controlled blower, you fireplace will eliminate removing bottom louver must first secure the thermal switch bracket...
-
Page 5: Operating Blower
MODEL BKT WIRE ASSEMBLY Continued BKT Model: The blower will only run Place the blower against the lower rear when the speed control knob is in the ON wall of the firebox outer wrapper with position and the Thermal switch senses the exhaust port directed upward and temperature after the fireplace begins the thermodisc position up near the... - Page 6 *The diagrams shown below are for your reference only, please refer to original installation instructions. *VERY IMPORTANT: REMOVE this protective black foam from blowers BEFORE use. PayandPack.com info@payandpack.com ATTENTION! Before installation, please refer to your owners manual. The thermodisc is set to turn on at approximately 120°...
