Kohler JULY 45352T-C9 Installation Instructions

SERVICE PARTS

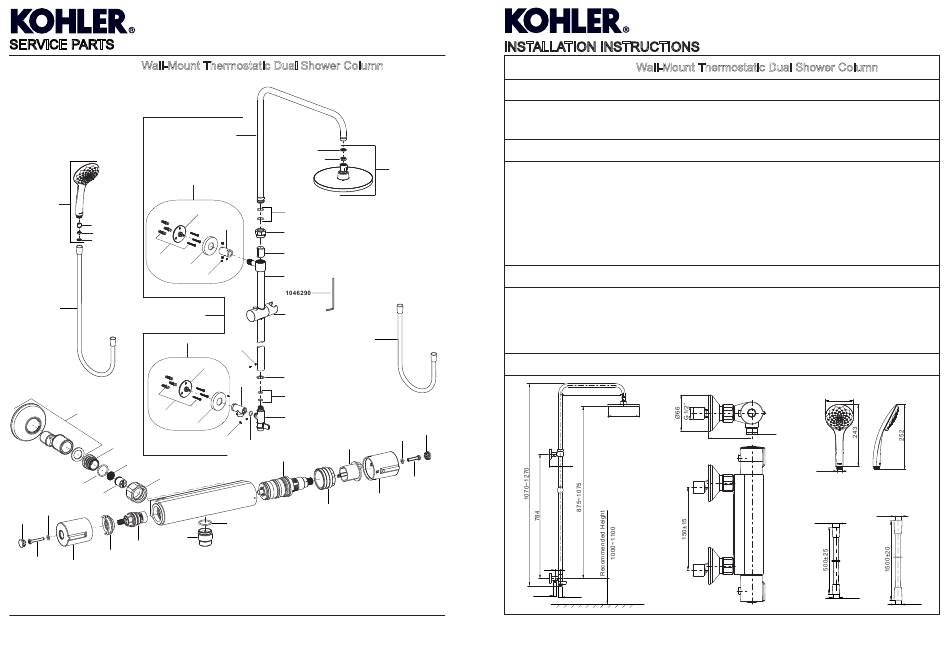

45352T-C9 Wall-Mount Thermostatic Dual Shower Column
1256397**
1236561**
1196610
1240266
1030624
77420
1061576
1196621**
1248781**
1196627**
1256401**
1219595** 1061576
1196621**
1148888
836586
1172859**
1066125
831752
832940
834401**
864922**
833405
1112782
837192
1151321**
**Color code must be specified when ordering
1265599-2A-A
1121294**
77420
1030624
870992
1196622**
1196609**
1121285
1268608**
832751
1109471**
1154793**
832751
1196610
1196628
1196607**
870921
1183267**
832751
870921
1149332
835239
1151320**
1151048**
870721
JULY
INSTALLATION INSTRUCTIONS
45352T-C9
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves the right
to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
OPERATION CONDITION
1260904** 1. Minimum supply pressures: 0.05MPa(0.5bar).
2. Recommended supply static pressures: 0.3MPa(3bar) on hot and cold water.
3. Supply pressure greater than 0.5MPa(5bar): install a pressure reducer.
4. Hot water temperatures, minimum: 50ºC, maximum: 80ºC.
5. Recommended hot water temperature: 65ºC(energy-saving).
6. Setting range, approximately: 20ºC to 50ºC.
7. Safety stop at: 40ºC.
8. Maximum mixed water ttmperature: 50ºC.
9. The highest water and environment temperature is 60ºC. Please keep handspray, showerhead and the shower arm
away from heater, or it may become damaged and cause injury to the user.
OPERATION INSTRUCTIONS
Turn the diverter handle right to close the wall, water will flow from the handspray; turn it vertically to the wall, the
showerhead will work.
The temperature is set by slowly turning the temperature selector(right-hand handle). For safety reasons, there is a stop
that limits temperature to 40°C. To get a higher temperature, push the button and continue turning the temperature
selector.
Water flow is set by turning the left-hand handle.
ROUGH-IN DIMENSIONS
834401**
832940
68
834554
34
G1/2˝
G1/2˝
4 1265599-2A-A
Wall-Mount Thermostatic Dual Shower Column
400
Ø203
G1/2˝
78.6
Finished Floor
JULY
Ø110
G1/2˝
G1/2˝
G1/2˝
G1/2˝
G1/2˝
1
