Thank you for choosing the Double Apex Mute Button. Please review this manual before beginning instal-
lation. If you have any questions please do not hesitate to email us at support@dblapex.com

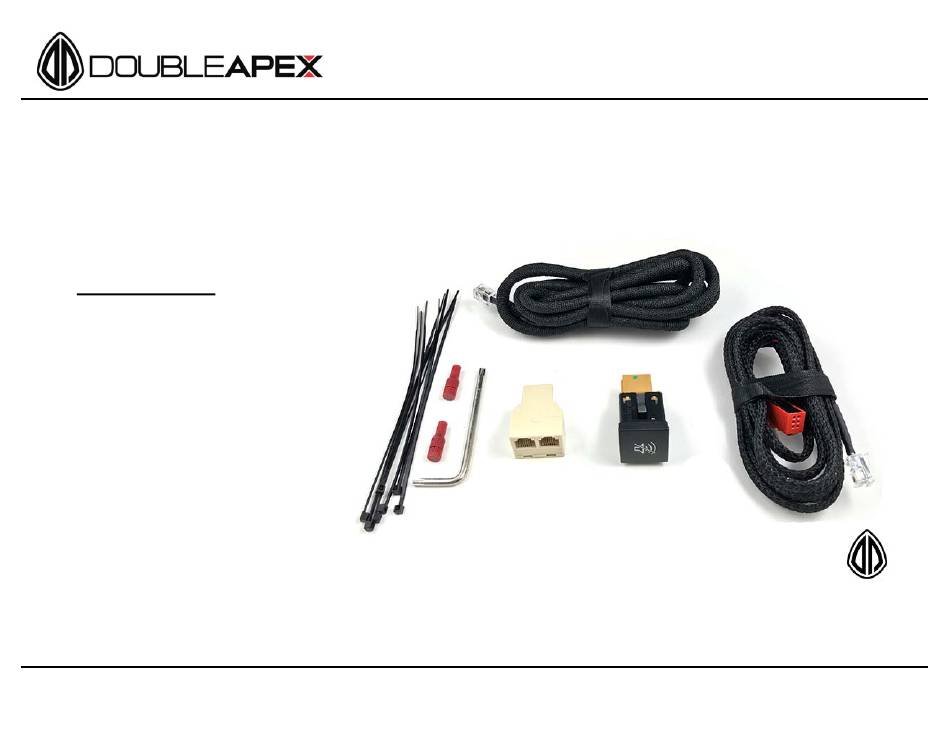

Parts Included:
1. Mute button
2. Button harness
3. Detector Harness
4. RJ11 splitter
5. Posi-Tap wire tap (x2)
6. T20 torx key
7. Zip ties
© 2017 Double Apex LLC
- Escort Mute Button Kit -
Installation Instructions
www.dblapex.com | support@dblapex.com
1
Advertisement
Table of Contents
Related Manuals for Double Apex Escort Mute Button
Summary of Contents for Double Apex Escort Mute Button
- Page 1 - Escort Mute Button Kit - Installation Instructions Thank you for choosing the Double Apex Mute Button. Please review this manual before beginning instal- lation. If you have any questions please do not hesitate to email us at support@dblapex.com Parts Included: 1.
- Page 2 - Escort Mute Button Kit - Installation Instructions Install Overview: www.dblapex.com | support@dblapex.com © 2017 Double Apex LLC ...
- Page 3 - Escort Mute Button Kit - Installation Instructions Step 1: 1. Move the shift lever to the rearmost position. 2. Use a plastic trim removal tool to detach the trim surrounding the shifter. 3. It may also be possible to grasp the edges of the trim surround- ing the shifter, where it meets the shift boot, and pull straight up to detach.
- Page 4 - Escort Mute Button Kit - Installation Instructions Step 2: Lift up the front of the button cluster enough to expose the Vehicles with 12V socket on right side connectors below. Make sure the key is in the off position. 1. Disconnect the ESP and any other button harnesses by depressing the tab on the left side of the connector and pulling downward.
- Page 5 - Escort Mute Button Kit - Installation Instructions Step 3: The wiring connections will be as follows: 1. Orange connector on the included Button Harness → Button 2. RJ11 connector on Button Harness → Splitter, side with two sockets 3.
- Page 6 If your vehicle does not have other buttons that can be used Figure B for lighting power, a power extension is available. Contact Double Apex for more information. 3. Remove the blank from the desired location in the center tray by pushing it out from the back side.
- Page 7 7. Complete the reinstallation of the center console and any other vehicle trim. Thank You! Thank you again for choosing the Double Apex Mute Button. We believe in continuous improvement so until our products install themselves and respond to telepathic commands there’s probably something we could do better.
- Page 8 Installation Instructions Limited Warranty Double Apex LLC warrants this product, Mute Button, to be free from defects in materials and workman- ship for one year from date of purchase to the original retail Purchaser. Double Apex LLC reserves the right to repair or replace the defective product at their discretion, without charge.
