Signature Hardware RYLE 934424 Installation Instructions

Pressure balance shower valve

RYLE PRESSURE BALANCE SHOWER VALVE

INSTALLATION INSTRUCTIONS

Before you begin, read the installation instructions below. Observe all local building and safety codes.

Unpack and inspect the product for any shipping damages. If you find damages, do not install. Contact Customer

Service at 1.866.855.2284. If you need assistance or have questions while installing your shower valve, contact

Customer Service.

We recommend consulting a professional if you are unfamiliar with installing bathroom fixtures, and plumbing.

Signature Hardware accepts no liability for any damage to the plumbing or wall, or for personal injury during

TOOLS AND MATERIALS:

Screwdriver

INSTALLATION

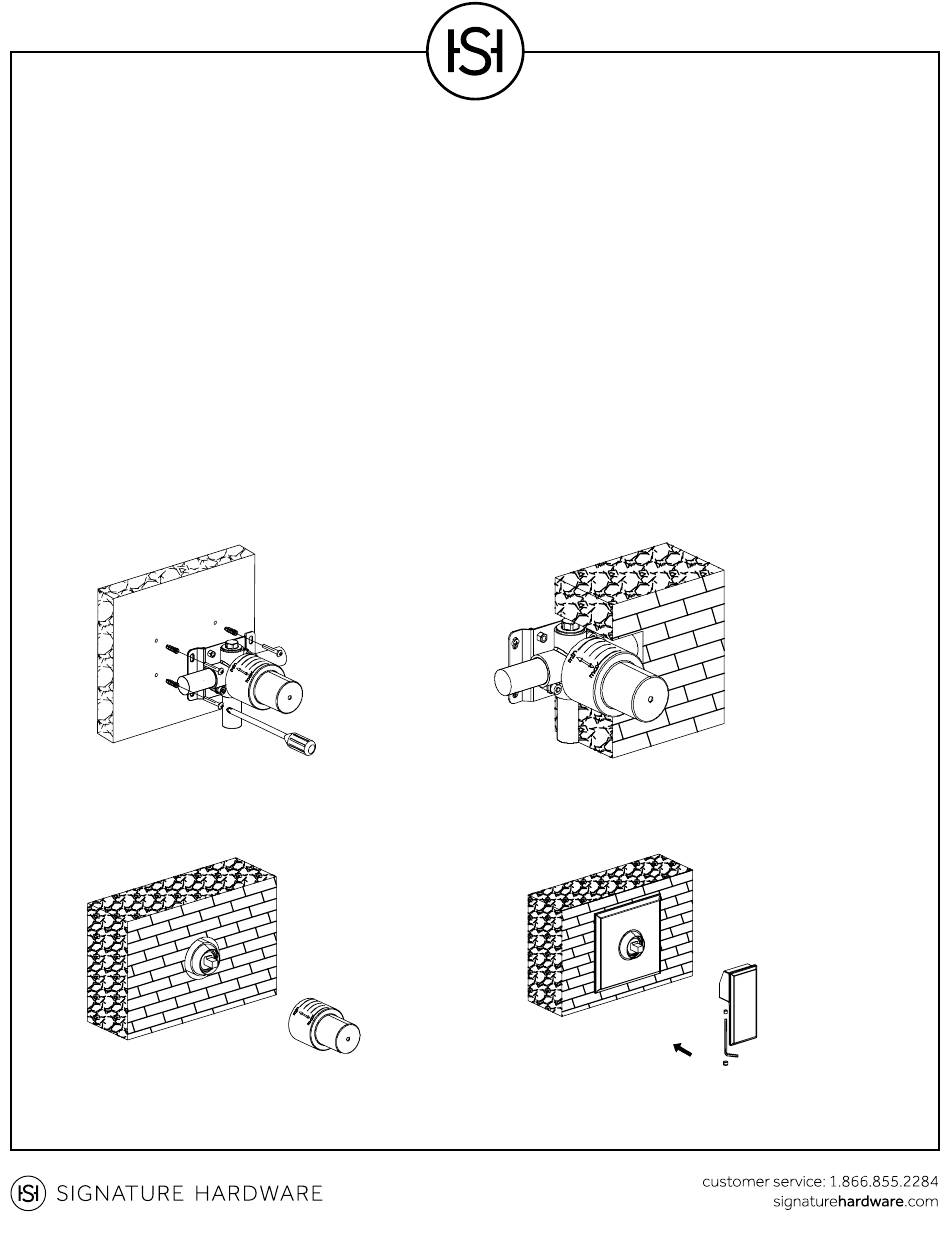

1. Install the valve body. Wrap the threaded portion

of the joints in Teflon tape and connect the water

inlet and outlet.

3. When the finished wall is complete, remove

the protective cover.

2. Put the protective cover on the valve body and

finish the shower wall.

4. Install the escutcheon, and handle. Tighten the set

screw with an Allen wrench to secure.

Ryle Pressure Balance Shower Valve Installation Instructions
