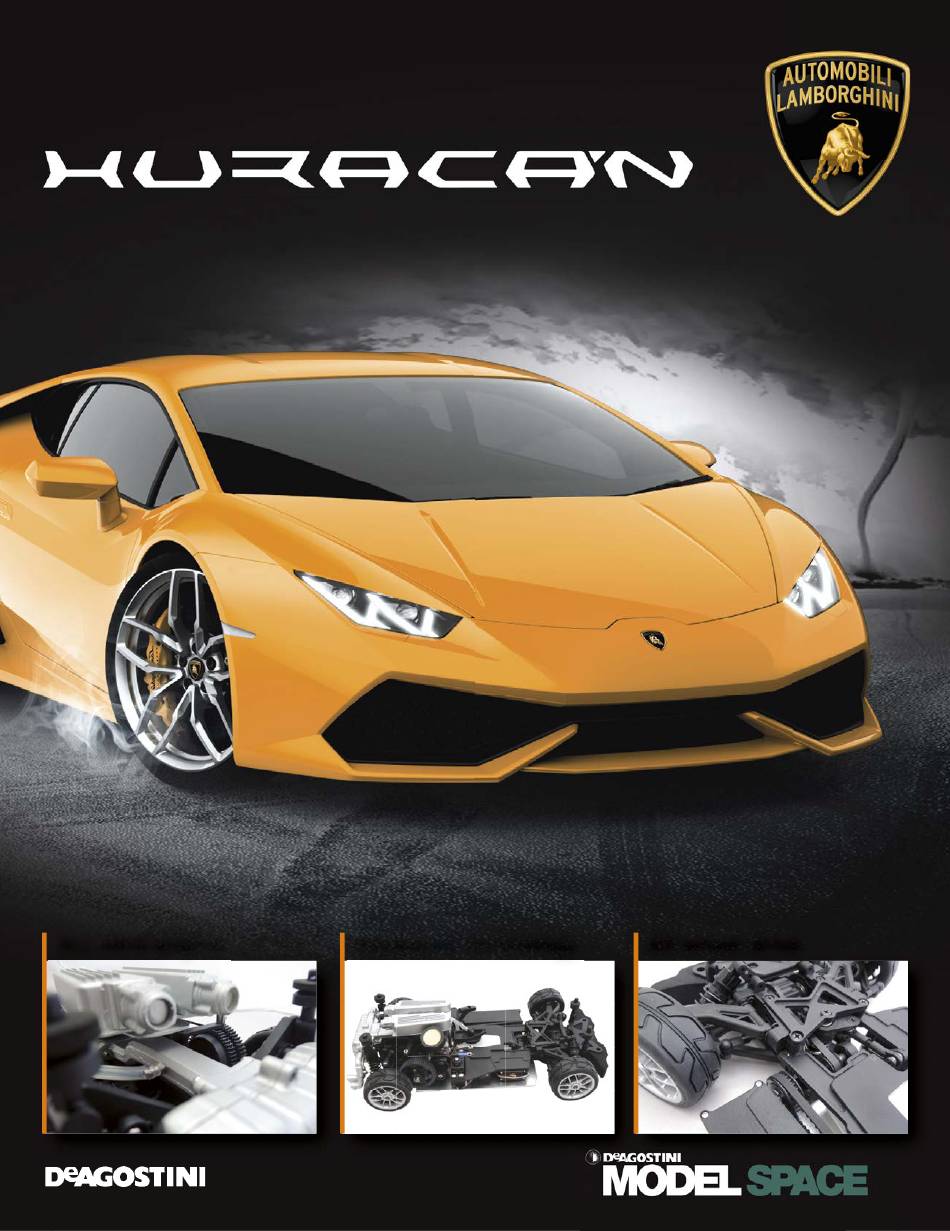

- Page 1 Lamborghini Build and Drive the R A D I O - C O N T R O L L E D C A R W I T H N I T R O E N G I N E Pack 3cc nitro engine Advanced technology All-wheel drive...
- Page 2 Published in the UK by De Agostini UK Ltd, Battersea Studios 2, 82 Silverthorne Road, London SW8 3HE www.model-space.com Published in the USA by De Agostini Publishing USA Inc., 915 Broadway, Suite 609, New York, NY 10010 English adaptation by Continuo Creative, 39-41 North Road, London N7 9DP NOT SUITABLE FOR CHILDREN UNDER THE AGE OF 14.
- Page 3 ASSEMBLY GUIDE – STAGE 42 Steering and rear suspension tie rods Parts supplied: Ball ends Ball-headed screws Steering tie rods Rear suspension tie rod The two longer rods, the steering tie rods, make up part of the steering system, and they will later be connected to the steering servo saver. The shorter rod is one of two tie rods that, with a ball end screwed onto each end, you will fit to the rear suspension.
- Page 4 Wrap some tissue paper Both steering tie rods must be Screw the two ball ends onto around the middle of one of the the same length – about 66mm – the rod. steering tie rods. Hold the rod when assembled. Measure the with pliers, as shown, and screw a length using a caliper gauge.
- Page 5 ASSEMBLY GUIDE – STAGE 43 Servo and servo horn Parts supplied: Servo Servo horn The parts supplied with this stage are one of your model’s two servos, and a servo horn. Both servos are the same. When fixed to the chassis plate, one will operate both the throttle and the brake, and the other one the steering.
- Page 6 Right: The three sections that make up the casing of a servo are held together by four Phillips screws. By removing the screws, you can take off the casing’s base to reveal the circuit board. Above: The bottom of a The internal structure of the servo expose the gears, which transmit the motion servo, with the casing...
- Page 7 ASSEMBLY GUIDE – STAGE 44 Front upper arm Parts supplied: Front upper arm Ball-headed screw Pins Bearing (large) Bearing (small) Locknut The parts supplied with this stage are components for the front suspension. The front upper arm, ball-headed screw and locknut are identical to those provided in Stage 4, and the bearings are the same as those supplied with Stage 8.
- Page 8 Recover the main model assembly, along with the parts from Stages 4 and 21, as shown. Insert the ball-headed screw into the bottom hole of the hub carrier. Insert the locknut into the same hole as the screw, with the flat side facing out.
- Page 9 ASSEMBLY GUIDE – STAGE 44 Partially tighten the screw into the hole, leaving about three threads showing. This will allow you to adjust the screw, if necessary, when the model is finally complete. Insert the stub axle into the larger bearing. Insert one end of the driveshaft into the stub axle and the other into...
- Page 10 Insert the drive pin (from Stage 21) through the hole in the stub axle. Make sure that it is centred. Place the hexagonal drive washer over the stub axle and pin. Now tighten the flanged nut onto the end of the axle to hold the parts in place.
- Page 11 ASSEMBLY GUIDE – STAGE 45 Steering servo saver Parts supplied: Servo saver A Servo saver B E-rings Spring Outer shaft Inner shaft 3 x 10mm screw With this stage, you receive the servo saver, which is a key part of your model’s steering mechanism.
- Page 12 Clip an E-ring into the groove Push the servo saver down, Use pliers to clip the E-ring at the end of the outer shaft. compressing the spring. You may into the groove, securing find this easier if you use water all the parts of the servo saver.
- Page 13 ASSEMBLY GUIDE – STAGE 46 Air fi lter Parts supplied: Air fi lter element Air fi lter oil Air fi lter The parts supplied with this stage are the air filter, its element, which is made of sponge, and a bottle of air filter oil with which to moisten the sponge. The filter, an important part of your model, will be fitted to the intake duct of the carburettor.
- Page 14 Apply a few drops of oil to the Dab away any excess oil with a Here’s how the air filter will side of the fi lter as well. paper towel. look with the sponge in place. The air filter can now be fitted Squeeze the sponge to make Insert the sponge into the to the carburettor.
- Page 15 ASSEMBLY GUIDE – STAGE 47 Brake discs Parts supplied: Front brake discs Rear brake discs 2 x 5mm screws The parts provided with this stage are your model’s front and rear brake discs, which are fi tted just to make the model look more like the real Huracán –...
- Page 16 Rear Front Rear disc Front disc To identify the front and rear Insert the posts on the inside Now fit the second front brake discs, compare the distances of the front disc into the matching disc to the right front hub carrier. between the mounting posts.
-
Page 17: Assembly Guide
Coming in your next pack Lamborghini Design Lamborghini Murciélago: The Diablo’s successor Build and Drive the RC Manual R A D I O - C O N T R O L L E D C A R W I T H N I T R O E N G I N E The Huracán RC’s differentials Assembly Guide ™...
