Summary of Contents for mychway WL-7008CB

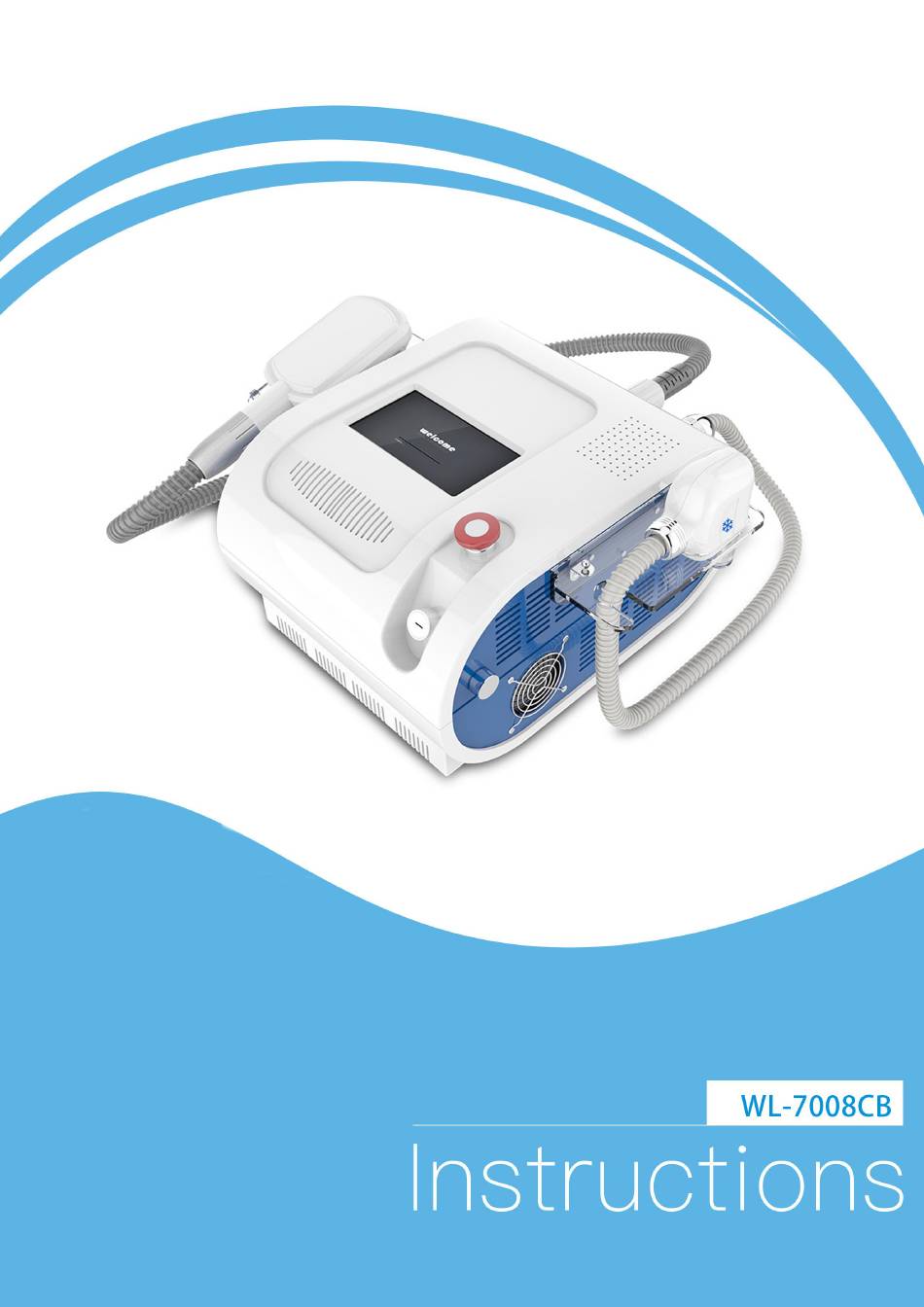

- Page 1 - 1 -...
- Page 2 If the machine is over warranty, please also do not hesitate to contact us. we will assure you of our best service all the time. ◆How to contact us? Phone:(+86) 189 -487-55929 Tel: 0755-86368500 Email: sales@mychway.com This product does not belong to medical,please don’t use for disease treatment! - 1 -...
- Page 3 Please read the NOTES carefully before use Machine. 1. Please make sure the tank is filled with water before start machine . 2. Please put at least two pieces membranes on treat area before start treatment . 3. Please clear the filter in time .otherwise it will cause residual liquid to be poured into the machine and burned out parts .
-
Page 4: Safety Notice
Safety Notice 1. Please don’t disassemble the equipment or try to do some other operation, which haven’t been indicated in our instruction. All the repairing work should be done by our admitted professional personnel 2. Please don’t assemble or operate this equipment while you are near the water or your hands are wet. - Page 5 8. Never use the device if you suffer from epilepsy. The device must not be used by any person suffering from mental illness. 9. In the case of long-term treatment with drugs such as anti-inflammation, anticoagulants, antibiotics or if your skin bruises at the slightest shock, ask advice of your doctor/physician before using.
- Page 6 - 5 -...
-
Page 7: Packing List
Parameter Rated input voltage: AC220V-240V 50HZ / AC110V-120V 60Hz Rated input power: 350VA Cool cold slimming Vacuum Power: Up to 200W Cooling device output temperature: 5~ -5°C Cooling device output: 0-5Kpa Cooling liquid: purified/ distilled water Packing list 1* Fat freezing main machine 1* Body Cooling handle 1* Chin Cooling handle 2* Handles holder... - Page 8 Machine Back View How to add water (only purified / distilled water) ? 1. Put the funnel in the INLET hole 2. Take out the rubber from the middle hole (Overflow) Input water with pipe Input water until water go out from the overflow hole, that means the machine already full of water Put the rubber back and take out the funnel 6.
-
Page 9: Operation
Operation After full of distilled/ purified water, put in the power line, then turn around the key switch to turn on the machine, and screen will show you “Welcome” and loading page Main operate page Auto Temperature Alarm System the machine will automatically stop working to protect the person during treatment if the temperature up to 40°C With intelligent indication system the water icon will be dark once the water circulation system i error, you can easily to... - Page 10 set up the operate time ( 0 ~ 30 mins ), according to the customers need. set up the temperature ( -5 ~ 5 °C ), Please analyzer the fat part status, then according it, to adjust the temperature Start / pause treatment Reset the parameter Back to home page Fat freezing treatment operation...
-
Page 11: Treatment Settings
2. According the client’s fat part status, adjust the Intensity and the Vacuum mode and Working time. 3. Turn on the Cryolipolysis system. Working on the body. At the same time, you can adjust the intensity of the system by the button on machine. 4. - Page 12 AFTER-SALE SERVICE AND MAINTENANCE The term of maintaining guarantee is main device 1 year and spare part 3 months from the date of purchasing according to the receipt. (Expendable is not included in it.) Others not included in maintaining guarantee or over the time, we also supply to maintain and renew but need charges. Please contact with the dealer if need change of purchasing the parts and easily expendable products.
Need help?
Do you have a question about the WL-7008CB and is the answer not in the manual?
Questions and answers
Please can you tell me what the part is called for the inlet to add water, the funnel tube and connector we need a replacement
