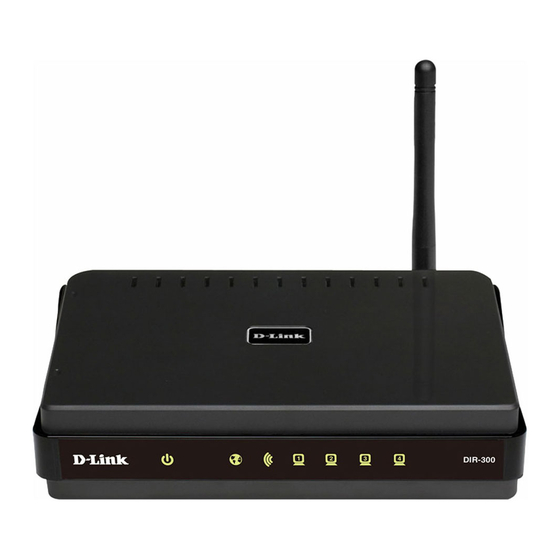

D-Link DIR-300 Manual

Hide thumbs Also See for DIR-300:
1
2
3
4
5
Table of Contents

Advertisement

Quick Links

Download this manual
English • Deutsch • Español • Français • Italiano • ??? • Polski • Português • ??????? • Svenska •
???(????)? • ???(??)? •
= D-Link DIR-300 Rev.A = Airlink101 AR430W = Airlink101 AR335W
Contents
•

1 Initial flashing instruction

♦
♦
♦
1.3 Recovery and
Upgrade
♦
1.4 Redboot access
script for Windows
♦
1.5 Redboot access
script for Linux
•
♦
•
Initial flashing instruction
Warning: Procedure below is valid only for DIR-300 Revision A. Please check carefully the revision
level of your D-Link before flashing
Don't use Builds 21676 - 23503 as it has a restart loop.
See Where do I download firmware? for links.
Windows flashing instruction for the D-Link DIR-300 to DD-WRT (by Brainslayer, modified by Sash,
v24_SP1 specific added by Deepak)
Install RedBoot
configure your local ip to 192.168.20.80 connect your lan cable to the WAN port of the router. plugoff the
power cord and replug it. You must press the RESET key for 5 sec. now enter the redboot using telnet and ip
192.168.20.81 and port 9000. connect your lan cable to the dir300 wan port. you might need several tries
since its only available for 1 second after aprox. 5 sec. of booting (below is a Windows & Linux access script
for an easy way to connect to redboot)
When you succeed you will be rewarded with a RedBoot> prompt.
DIR-300 Info:
IP: 192.168.20.81/255.255.255.0, Gateway: 0.0.0.0
Initial flashing instruction
D-Link_DIR-300_rev_A
◊
◊
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DIR-300 and is the answer not in the manual?

Questions and answers

Related Manuals for D-Link DIR-300

Summary of Contents for D-Link DIR-300

  • Page 1 3 Overclocking • Initial flashing instruction Warning: Procedure below is valid only for DIR-300 Revision A. Please check carefully the revision level of your D-Link before flashing Don't use Builds 21676 - 23503 as it has a restart loop. See Where do I download firmware? for links.
  • Page 2 D-Link_DIR-300_rev_A Default server: 192.168.20.80 now start a local tftp server on your computer and place ap61.ram as well as ap61.rom in the root dir of this server back to the redboot enter: load ap61.ram now a new temporarily bootloader should start. (on serial console it will display some warning. but you dont need to care about).
  • Page 3 D-Link_DIR-300_rev_A fis init ip_address -h 192.168.1.2 load -r -b 0x80041000 linux.bin fis create linux fconfig boot_script true fconfig boot_script_timeout 5 now type fconfig again and configure the bootscript to: fis load -l linux exec and press enter for every other option to confirm the defaults. Now type reset again.
  • Page 4 D-Link_DIR-300_rev_A rem putty rem ------------------------------------------------ break putty.exe telnet://192.168.20.81:9000 -m redboot.txt exit start the bat file and power on the router..here comes redboot Redboot access script for Linux Putty download putty.exe to c:\ create a file called redboot.txt, with the following content: create a file called redboot in the same folder with the following content: #!/bin/bash echo...

  • Page 5: Serial Port

    D-Link_DIR-300_rev_A Hardware Serial port 3.3V TTL 8,n,1,9600 Overclocking To overclock your router, see http://www.dd-wrt.com/phpBB2/viewtopic.php?t=30305 Overclocking...
