UNDERSINK / SULLAGE
CHAMBER ALARMS
FPC-12660 - WITH DISHWASHER INTERLOCK
FUNCTIONAL OVERVIEW
In addition to both audible and visual alarms being activated when a high level occurs, the controller is
designed to provide dishwasher interlock, which immediately isolates power to the Dishwasher, ensuring that
no further 'inflow' to the chamber from the Dishwasher occurs, until the level has subsided.
OPERATION
In the event of 'high level', the high level light will
commence flashing, the audible buzzer will
commence sounding and the power outlet, into
which the dishwasher is plugged, will automatically
be switched off.
NOTE: DO NOT PLUG PUMP INTO THIS POWER
OUTLET
The high level indicator light will remain flashing
until the water level in the chamber has subsided.
The audible buzzer can be muted by way of the
mute button located on the front of the panel.
The power outlet will remain off until the 'high level'
has subsided.

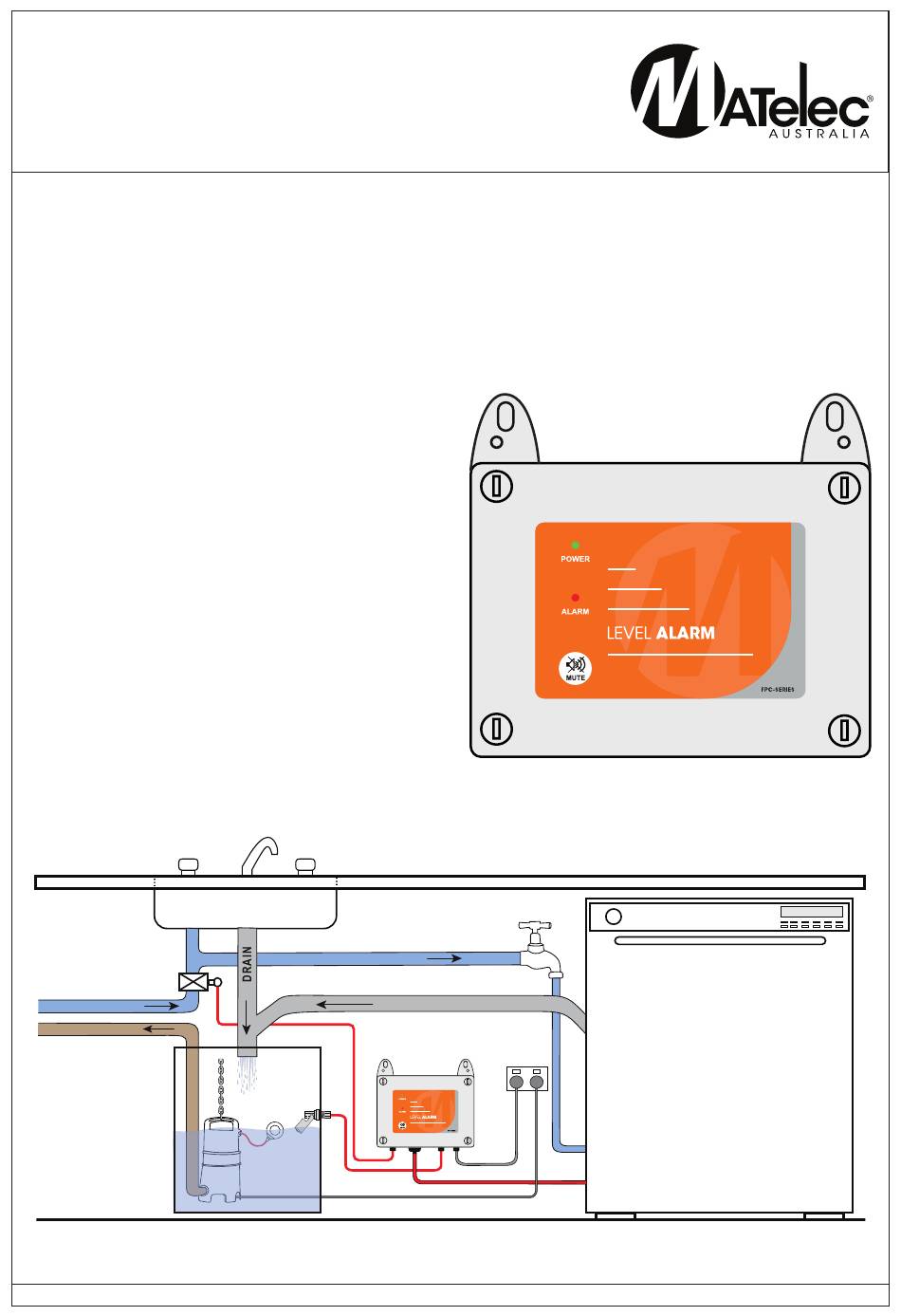

SCHEMATIC
M A IN S WATER
TO SEWER
DOC: FPC-12660
M A IN S WATER
D RA IN
POWER SUPPLY
TO DISHWASHER
VER 2.2
Advertisement
Table of Contents
Related Manuals for Matelec FPC-12660
Summary of Contents for Matelec FPC-12660
-
Page 1: Functional Overview
UNDERSINK / SULLAGE CHAMBER ALARMS FPC-12660 - WITH DISHWASHER INTERLOCK FUNCTIONAL OVERVIEW In addition to both audible and visual alarms being activated when a high level occurs, the controller is designed to provide dishwasher interlock, which immediately isolates power to the Dishwasher, ensuring that no further 'inflow' to the chamber from the Dishwasher occurs, until the level has subsided. -
Page 2: Operating Instructions
5 MIN TIMEOUT SELF RESET OUTPUT BUZZER DISHWASHER POWER OUTLET 10 Amps Resistive Load Max NOTE: DO NOT PLUG FLOAT SWITCH PUMP INTO THIS CABLE POWER OUTLET POWER LEAD MATelec reserves the right to alter any technical data without notice.
