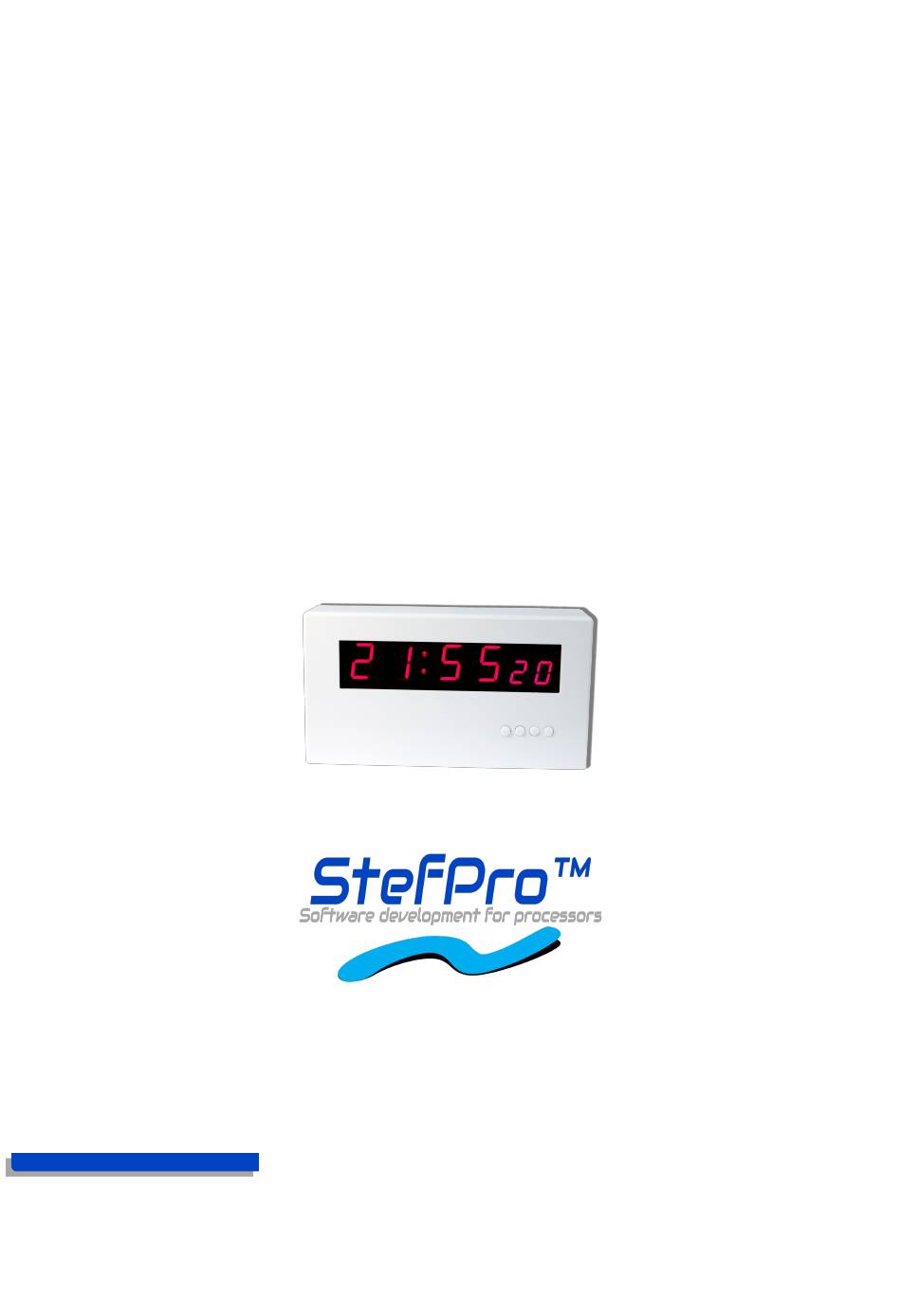

SPDv2133.01
Six digit dcf clock
with 4x20mm + 2x14mm red 7 segment LED displays
and temperature
Handbook
Version: Firmware 1.72-131
StefPro UG (haftungsbeschränkt) & Co. KG
Theilenmoorstr. 11
26345 Bockhorn, Germany
Phone: +49-4452-709175
Web: https://www.stefpro.biz/
E-mail: info@stefpro.biz
Handbook Version 1.0.0 - Valid from 10.01.2018.
Advertisement
Chapters
Table of Contents
Related Manuals for StefPro SPDv2133.01
Summary of Contents for StefPro SPDv2133.01
- Page 1 SPDv2133.01 Six digit dcf clock with 4x20mm + 2x14mm red 7 segment LED displays and temperature Handbook Version: Firmware 1.72-131 StefPro UG (haftungsbeschränkt) & Co. KG Theilenmoorstr. 11 26345 Bockhorn, Germany Phone: +49-4452-709175 Web: https://www.stefpro.biz/ E-mail: info@stefpro.biz Handbook Version 1.0.0 - Valid from 10.01.2018.
-
Page 2: Table Of Contents
StefPro - www.stefpro.biz - info@stefpro.biz - SPDv2133.01 13.01.2018 Table of Contents Table of Contents Safety Application and function description Function description Technical data Construction description Installation of the device (Dimensions) Connectors X-DC : DC Power input : DC plug 2,1mm, 2 pins... - Page 3 StefPro - www.stefpro.biz - info@stefpro.biz - SPDv2133.01 13.01.2018 Liability, warranty and copyright notice Definitions Liability Safety Notes Intended operation Warranty Copyright notice Disposal information Impress Table of Contents - Page 3 of 24...
-
Page 4: Safety
StefPro - www.stefpro.biz - info@stefpro.biz - SPDv2133.01 13.01.2018 Safety Follow the manual The device is only safe in operation if all instructions are read in this handbook. General understanding of safety By the device there are no hazard under normal use. -
Page 5: Application And Function Description
StefPro - www.stefpro.biz - info@stefpro.biz - SPDv2133.01 13.01.2018 Application and function description Application and function description Function description This IC can analyze the DCF77 signal, which is received by a receiver and demodulated. Thereceived time and date can output directly to a 7-segment displays. -
Page 6: Technical Data
StefPro - www.stefpro.biz - info@stefpro.biz - SPDv2133.01 13.01.2018 Technical data Operating voltage: 9 - 12 volts DC Current: 200mA Power: approximately 1.8 W (at 9 volts) Volume level of the buzzer: approx. 85 to 90 DB Construction description Construction description Installation of the device (Dimensions) Figure 1:Installation (Dimensions) description for device SPH2305.0... -
Page 7: X-Dc : Dc Power Input : Dc Plug 2,1Mm, 2 Pins
StefPro - www.stefpro.biz - info@stefpro.biz - SPDv2133.01 13.01.2018 DANGER Make sure that you have connected all signals correctly. There is no overload and polarity protection! X-DC : DC Power input : DC plug 2,1mm, 2 pins Name Direction Function Maximum... -
Page 8: Installation The Dcf Clock
StefPro - www.stefpro.biz - info@stefpro.biz - SPDv2133.01 13.01.2018 Installation the DCF clock Installation the DCF clock Figure 1: Align the DCF antenna The external antenna receives the DCF77 signal and should be directed to Frankfurt, as shown in Figure 1. - Page 9 StefPro - www.stefpro.biz - info@stefpro.biz - SPDv2133.01 13.01.2018 "SEArCH" Search the fifty-ninth second. "rEAdxx" read the dcf time. Installation the DCF clock - Synchronize with active display Page 9 of 24...
-
Page 10: Button Description
StefPro - www.stefpro.biz - info@stefpro.biz - SPDv2133.01 13.01.2018 Button description Button description Overview of buttons Menu Menu Level 1 Level 2 ⇓ ⇓ Normal Display mode of ⇓ ⇓ clock Show ⇓ ⇓ Temperature ➟ ➟ ➟ ➟ ➟ Alarm enable... -
Page 11: Normal
StefPro - www.stefpro.biz - info@stefpro.biz - SPDv2133.01 13.01.2018 Normal Normal mode, outside of the menu. Here the + button has the function of the alarm temporary switch on or off. The - button Switches the display to 100% (flashlight). Display mode of clock Sets the mode how to display time and date. -
Page 12: Alarm Enable
StefPro - www.stefpro.biz - info@stefpro.biz - SPDv2133.01 13.01.2018 Alarm enable Enables the alarm. ALARM ON ALARM OFF Alarm time hour Sets the hour for alarm.The number can be 0-23 Alarm time minute Sets the minutes for alarm.The number can be 0-59 Alarm snooze time Sets the minutes for the snooze function.The number can be 1-30... -
Page 13: Alarm Exit
StefPro - www.stefpro.biz - info@stefpro.biz - SPDv2133.01 13.01.2018 Alarm exit With + you exit the sub-menu alarm. Brightness With + you enter the sub-menu brightness. Brightness Brightness menu Sets the brightness of the menu.The number can be 10-25 Brightness Brightness max In this menu item, the maximum brightness of the display can be adjusted. -
Page 14: Brightness Speed
StefPro - www.stefpro.biz - info@stefpro.biz - SPDv2133.01 13.01.2018 Brightness speed This sets the speed of auto brightness. The number can be 0-10 Brightness speed Brightness factor This sets the calculation factor for auto brightness. The number can be 1-99 Brightness factor Brightness offset This sets the calculation offset for auto brightness. -
Page 15: Receive State Display
StefPro - www.stefpro.biz - info@stefpro.biz - SPDv2133.01 13.01.2018 Receive state display Sets the mode for the receive LED, which shows the received signal.The number can be 0-2. 0: Only until the clock has been synchronized. 1: Shows the received signal when the clock is not synchronized with the DCF77 signal. -
Page 16: Dcf Sensitivity
StefPro - www.stefpro.biz - info@stefpro.biz - SPDv2133.01 13.01.2018 DCF sensitivity Sets the DCF Sensitivity. 1 has a very low tolerance and 6 has the highest tolerance for reception. The Sensitivity should be set as small as possible to avoid incorrect receiving.The number can be 1-6... -
Page 17: Set Day
StefPro - www.stefpro.biz - info@stefpro.biz - SPDv2133.01 13.01.2018 Set day Set the day, limit by month. The number can be 1- 28, 29, 30, 31. MISSING: MENU_CODE_L2_DATECLOCK_GET_WDATE Set time Sets the time, while looking for DCF time, otherwise the time will be provided directly. -
Page 18: Menu End
StefPro - www.stefpro.biz - info@stefpro.biz - SPDv2133.01 13.01.2018 Menu end End of the menu, hide automatically after 2 seconds. Button description - Menu end Page 18 of 24... -
Page 19: Attachment
StefPro - www.stefpro.biz - info@stefpro.biz - SPDv2133.01 13.01.2018 Attachment Attachment Bootloader handling Start the IC/module/device in bootloader mode 1. Switch off the IC/module/device. 2. Connect the UART adapter (USB → 3.3 volts or 5 volts UART or RS232 → 3.3 volts or 5 volts UART). -
Page 20: Segment Characters
StefPro - www.stefpro.biz - info@stefpro.biz - SPDv2133.01 13.01.2018 7 segment characters The symbolism of each character: Change log Change log Safety 20.03.2017 - 1.0.3 - ADD Add ESD note Change log - 7 segment characters Page 20 of 24... -
Page 21: Dcf Module Properties
StefPro - www.stefpro.biz - info@stefpro.biz - SPDv2133.01 13.01.2018 DCF module properties 21.11.2016 - 1.0.1 - ADD Add list of tested modules 20.03.2017 - 1.0.3 - ADD Update list of tested modules, add standard pin assingment Set day 23.04.2017 - 1.0.4 - ERROR Bugfix wrong title, this sets the day not the month. -
Page 22: Liability, Warranty And Copyright Notice
The manufacturer is not responsible for all personal injury and property damage caused by improper operation. Warranty StefPro only warrants the device and its firmware. The warranty is limited to the exchange of the device within the warranty period in case of obviousdefects of the hardware, as well as faulty programming. -
Page 23: Copyright Notice
Copyright notice The circuitry and firmware on the device from StefPro is protected by copyright. Unauthorized reproduction or distribution of Modules with this program or any portion of it. This is pursued bothcriminal and civil law, and may result in severe penalties and compensation for damages. -
Page 24: Table Of Contents
This modules or devices comply with the EU directive on electronic and electrical equipment (WEEE regulation)and therefore may not be disposed of with household waste. Dispose of the device over your local collection center for electronic equipment! WEEE-Reg.-Nr.: DE 58929072 ( StefPro UG (haftungsbeschränkt) & Co. KG ) DE 78089358 ( StefPro Einzellunternehmen bis zum 01.01.2015 ) Impress Impress StefPro™...
