Williams-Sonoma PRESIDIO Assembly Instructions

ASSEMBLY INSTRUCTIONS FOR PRESIDIO BED

Place the platform section of the bed flat
on the floor.
Remove the nuts and washers from the
four bolts.

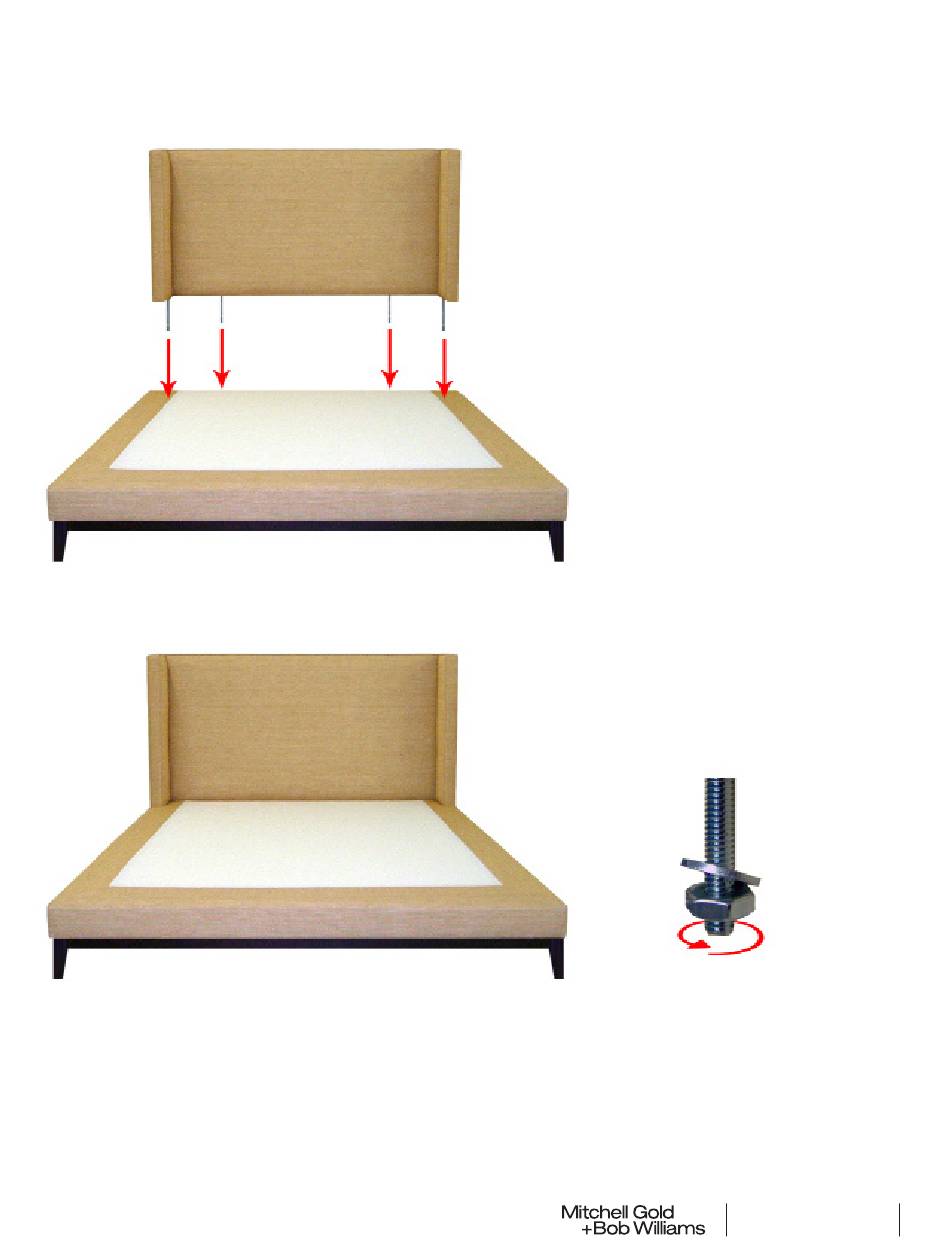

With the help of an additional person,
Lift The Headboard Over The Platform and
align the four bolts in the headboard
with the pre-drilled holes in the platform.
Bolts are intentionally engineered to
move from to back and side to side
to allow for easier alignment. They will
provide adequate support once all
hardware is in place.
With one person steadying the head-
board, slide the washer on the bolt first,
and then tighten the nut to the bolt with
a rachet (as illustrated).
7
WS FALL 2015 COLLECTION
