Manufacturer: Weeemake Co., Ltd.
Address: C210-212 Shiwai Taoyuan Originality Park, Pingshan 1st Rd, Nanshan
District, Shenzhen, Guangdong, China, 518055
Product Standard: GB/T 2423.8-1995
Q/WMZX 001-2018
Hotline: +86 400-9923-520 or +86 755 8653 2012
Email: support@weeemake.com
Website: www.weeemake.com
2

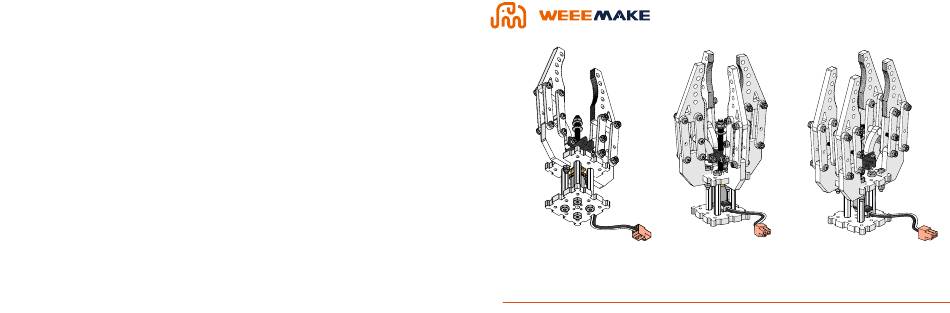

3 in 1 Robot Gripper
Assembly Guide
3
Advertisement
Related Manuals for WEEEMAKE 3 in 1 Robot Gripper
Summary of Contents for WEEEMAKE 3 in 1 Robot Gripper
- Page 1 Address: C210-212 Shiwai Taoyuan Originality Park, Pingshan 1st Rd, Nanshan District, Shenzhen, Guangdong, China, 518055 Product Standard: GB/T 2423.8-1995 Q/WMZX 001-2018 Hotline: +86 400-9923-520 or +86 755 8653 2012 3 in 1 Robot Gripper Email: support@weeemake.com Website: www.weeemake.com Assembly Guide...
-
Page 2: Parts List
「 Parts List 」 2xN30 Motor Bracket 28xNylon Locknut M3 4xFixed Arm 1xNylon Locknut M4 4xTraction Arm 4xAluminum Column 4*6*6 16xHind Arm 2xFlat Gasket 4*9*0.8 4xForearm 1xSpring 0.5*5*5 1xN30 DC Screw Motor 4xNylon Stud M4*35 1xCross Slider 1xMotor Cord-35cm 2xScrew M1.6*8 1xPH1 Screw Drive 4xScrew M3*14 1xPH000 Screw Drive... - Page 3 「 3 in 1 Robot Gripper—Four Cross Finger Gripper 」 「 3 in 1 Robot Gripper—Four Cross Finger Gripper」 Note: 1. Please remove the protective paper on acrylic ▶ 01：Assemble the Gripper Finger before assemble. 2. Assemble the tow arm and pay attention to the 5xNylon Locknut M3 direction as shown.
- Page 4 「 3 in 1 Robot Gripper—Four Cross Finger Gripper 」 「 3 in 1 Robot Gripper—Four Cross Finger Gripper 」 Screw the nylon locknut M4 to the motor's threaded Note: ▶ 03：Install Cross Slider ▶ 05：Fix Traction Arm 1. Please assemble in order.
- Page 5 「 3 in 1 Robot Gripper—Four Cross Finger Gripper 」 「 3 in 1 Robot Gripper—Four Cross Finger Gripper 」 ▶ 07：Assemble the Bottom N30 Motor Bracket 4xScrew M4*10 → 1xN30 Motor Bracket Note: If you need a robot gripper with only two fingers, install it to this step.
- Page 6 「 3 in 1 Robot Gripper—Parallel Four Finger Gripper 」 「 3 in 1 Robot Gripper—Parallel Four Finger Gripper 」 ▶ 01：Assemble the Gripper Finger 4xNylon Locknut M → 4xScrew M3*16 Note: 1xForearm 1. Please remove the protective paper on acrylic before 4xHind Arm assemble.
- Page 7 「 3 in 1 Robot Gripper—Parallel Four Finger Gripper 」 「 3 in 1 Robot Gripper—Parallel Four Finger Gripper 」 ▶ 02：Install N30 Motor ▶ 04：Fix Gripper Fingers → 2xScrew M1.6*8 4xNylon Locknut M3 → 1xN30 Motor Bracket 4xScrew M3*20...
- Page 8 「 3 in 1 Robot Gripper—Parallel Four Finger Gripper 」 「 3 in 1 Robot Gripper—Parallel Four Finger Gripper 」 ▶ 06：Install Nylon Stud 4xScrew M4*10 → 4xNylon Stud M4*35 Note: For the robot of the handling type, after installing this step, it can be fixed to the robot with screws.
