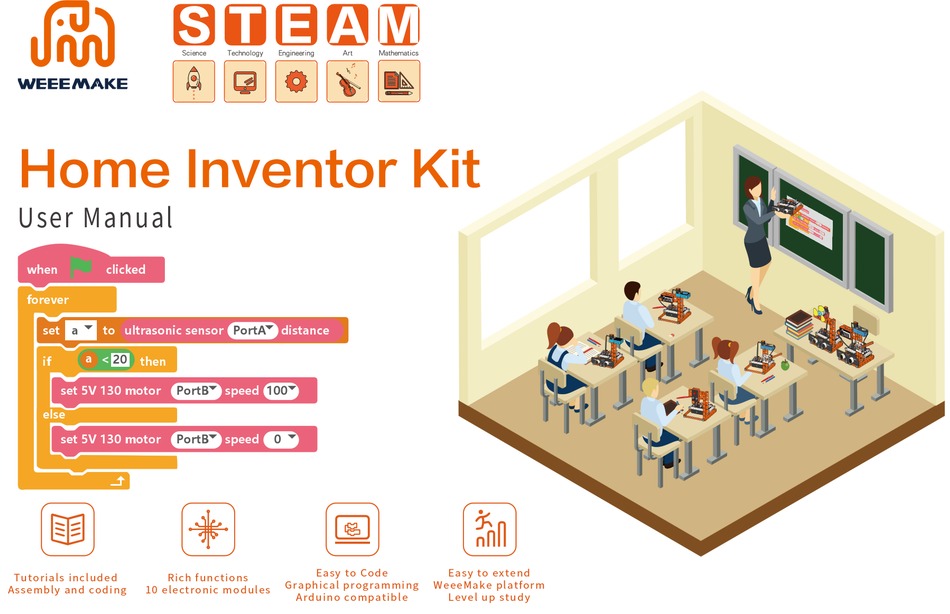

WEEEMAKE Home Inventor Kit User Manual

Stem education robot platform

Hide thumbs

Table Of Contents

Home Inventor Kit

User Manual

when

clicked

forever

set

ultrasonic sensor

a <

then

set 5V 130 motor

PortB

else

set 5V 130 motor

PortB

Tut or ials include d

R ic h f unc tio ns

As sembly and co din g

10 e l ec t roni c module s

PortA

distance

speed

100

speed

Easy t o Code

Gr aphical pro gr ammi n g

Ar duino compati ble

Eas y to ex t en d

WeeeMak e pl at f o rm

Level u p st u dy

Table of Contents

Need help?

Do you have a question about the Home Inventor Kit and is the answer not in the manual?

Questions and answers

Summary of Contents for WEEEMAKE Home Inventor Kit

Page 1 Home Inventor Kit User Manual when clicked forever ultrasonic sensor PortA distance a < then set 5V 130 motor PortB speed else set 5V 130 motor PortB speed Easy t o Code Eas y to ex t en d Tut or ials include d...
Page 3: Table Of Contents
Assembly Guide - Smart Fan Assembly Guide - Magical Musician Assembly Guide - Corridor Lamp Assembly Guide - Obedient Gate Assembly Guide - Weather Station Assembly Guide - Parking Lot System Software Sensors and Electronic Modules Guide Home Inventor Kit-Warranty...
Page 4: Introduction
Introduction Home Inventor Kit is a DIY kit that consist of 10 electronic modules and compact designed mechanical parts. By simulating the life scene of automatic home, building 7 interesting projects of smart home appliance, children will observe home appliances in their daily life and get to know how them work.
Page 5: Part List
Part list...
Page 6: Battery Instruction
Battery Instruction Battery information:...
Page 7: Tool Instruction
Tool Instruction Screw M2*10 Screw M4*6 Screw M4*8 Screw M2 Screw M2 Screw M4 Screw M3 Screw M4*20 Brass Stud M4*10 Tapping Screw M2*6 PH1 Screwdriver H2.5 Screwdriver M1.6-M4 Multifunction Wrench Tapping Screw M2*8 Plastic Rivet 2064 Nut M2 Nut M4...
Page 8: Assembly Guide - Basic Structure
Assembly Guide - Basic Structure 3x Plastic Rivet 2064 1x ELF mini V2.0 1x ELF mini Bracket 1x ELF mini V2.0 3x Plastic Rivet 2064 Note: Pay attention to the hole position and direction when installing mainboard. 1x ELF mini Bracket 1x 4 AA Battery Holder 4x AA Battery （No included）...
Page 9 Assembly Guide - Basic Structure 1x 3.7V Li-polymer Battery 1x Velcro 1x 3.7V Li-polymer Battery（No included） 1xVelcro 1x 3.7V Li-polymer Battery Interface...
Page 10 Assembly Guide - Basic Structure 8x Screw M4*6 2x Linkage 0208-88 2x Linkage 0208-88 4x Brass Stud M4*10 2x Beam 1010-100 2x Beam 1010-100 4x Brass Stud M4*10 8x Screw M4*6 4x Screw M4*6 4x Screw M4*6 1x ELF mini V2.0 Mainboard...
Page 11: Assembly Guide - Rainbow Color Lamp
Assembly Guide - Rainbow Color Lamp Use touch sensor to control the RGB LED. Touch the touch sensor, it will turn on the RGB LED, and change color when touch the sensor every time.
Page 12 Assembly Guide - Rainbow Color Lamp 1x Beam 1030-100 1x Beam 1030-100 2x Screw M4*6 2x Screw M4*6 2x Screw M4*20 1x Touch Sensor 1x Touch Sensor 1x RGB Ultrasonic Sensor V1.0 2x Screw M4*20 2x Screw M4*8 2x Nut M4 2x Nut M4 1x RGB Ultrasonic Sensor V1.0 2x Screw M4*8...
Page 13 Assembly Guide - Rainbow Color Lamp 2x RJ11 Cable - 20cm Wiring Instruction: RGB Ultrasonic Sensor V1.0 - Port A Touch Sensor - Port C Touch Sensor→ RJ11 Cable-20cm→Port C 2x RJ11 Cable - 20cm RGB Ultrasonic Sensor V1.0→ RJ11 Cable-20cm→Port A...
Page 14 How to play 1. Touch the power switch to turn on ELF mini V2.0. 2. Press number button 1 on IR remote control. 3. Use touch sensor to control the RGB LED. Touch the touch sensor, it will turn on the RGB LED, and change color when touch the sensor every time.
Page 15: Assembly Guide - Smart Fan
Assembly Guide - Smart Fan Use ultrasonic sensor to detect if anyone is in front of the fan; if yes, turn on the fan automat- ically. Energy saver!
Page 16 Assembly Guide - Smart Fan 1x Beam 1030-68 1x Beam 1030-100 1x Beam 1030-68 4x Screw M4*6 1x Beam 1030-100 4x Screw M4*6 2x Screw M4*20 1x 130 DC Motor Module 1x 130 DC Motor Module 1x RGB Ultrasonic Sensor V1.0 2x Screw M4*20 2x Screw M4*8 4x Nut M4...
Page 17 Assembly Guide - Smart Fan 2x RJ11 Cable - 20cm Wiring Instruction: RGB Ultrasonic Sensor V1.0 - Port A 130 DC Motor Module - Port B 130 DC Motor Module→ RJ11 Cable-20cm→Port B 2x RJ11 Cable - 20cm RGB Ultrasonic Sensor V1.0→ RJ11 Cable-20cm→Port A...
Page 18 How to play 1. Touch the power switch to turn on ELF mini V2.0. 2. Press number button 2 on IR remote control. 3. Use ultrasonic sensor to detect if anyone is in front of the fan; if yes, turn on the fan automatically. Coding - Smart Fan...
Page 19: Assembly Guide - Magical Musician
Assembly Guide - Magical Musician Ultrasonic sensor can detect distance to the object in front of it. Deﬁne diﬀerent distance value to play diﬀerent tone, play piano in the air like a magic.
Page 20 Assembly Guide - Magical Musician 1x RGB Ultrasonic Sensor V1.0 2x Screw M4*8 2x Nut M4 2x Nut M4 1x RGB Ultrasonic Sensor V1.0 2x Screw M4*8 1x RJ11 Cable - 20cm 1x RJ11 Cable - 20cm RGB Ultrasonic Sensor V1.0→ RJ11 Cable-20cm→Port A...
Page 21 How to play 1. Touch the power switch to turn on ELF mini V2.0. 2. Press number button 3 on IR remote control. 3. Deﬁne diﬀerent ultrasonic value to play diﬀerent tone, put your ﬁnger in front of ultrasonic sensor and play piano in the air like a magic.
Page 22: Assembly Guide - Corridor Lamp
Assembly Guide - Corridor Lamp Do you have sound-control lamp in your house? When you passing by, the lamp will turn on automatically. This robot use sound sensor to control the LED module, once it detected sounds, the LED lamp will turn on automatically.
Page 23 Assembly Guide - Corridor Lamp 1x Beam 1030-68 1x Beam 1030-100 1x Beam 1030-68 1x Beam 1030-100 4x Screw M4*6 4x Screw M4*6 2x Nut M4 1x Single LED Module-Red 2x Screw M4*20 2x Nut M4 1x Single LED Module-Red Note: When installing the electronic module, please lock screws properly to ﬁx...
Page 24 Assembly Guide - Corridor Lamp 1x RJ11 Cable - 20cm 1x RJ11 Cable - 20cm Single LED Module-Red→ RJ11 Cable-20cm→Port A...
Page 25 How to play 1. Touch the power switch to turn on ELF mini V 2.0. 2. Press number button 4 on IR remote control. 3. Use sound sensor to control the LED module. Clap your hands, and the LED lamp will turn on automatically. Coding -Corridor Lamp...
Page 26: Assembly Guide - Obedient Gate
Assembly Guide - Obedient Gate Use IR remote control to control the 9g servo motor. Open the gate or close the gate, all in your hand.
Page 27 Assembly Guide - Obedient Gate 1x Beam 1030-100 1x Beam 1030-100 2x Screw M4*6 2x Screw M4*6 1x 9g Servo 2x Nut M2 1x 9g Servo Bracket 1x 9g Servo 2x Screw M2*10 2x Nut M4 2x Screw M2*10 2x Screw M4*8 2x Nut M2 2x Nut M4 1x 9g Servo Bracket...
Page 28 Assembly Guide - Obedient Gate 1x 9g Servo Arm V1 1x 9g Servo Tiller 1x 9g Servo Tiller 1x 9g Servo Arm V1 1x Tapping Screw M2*6 2x Tapping Screw M2*8 1x Tapping Screw M2*6 2x Tapping Screw M2*8 2x Nut M4 1x Linkage 0208-88 2x Screw M4*8 1x Linkage 0208-88...
Page 29 Assembly Guide - Obedient Gate 2x Screw M4*20 1x RJ11 Adapter Module 1x RJ11 Adapter Module 2x Screw M4*20 Note: When installing the electronic module, please lock screws properly to ﬁx electronic module in position, and prevent deforming the electronic bracket. 1x RJ11 Cable - 20cm RJ11 Adapter Module→...
Page 30 How to play 1. Touch the power switch to turn on ELF mini V2.0. 2. Press number button 5 on IR remote control. 3. Use IR remote control to control the 9g servo motor. Press button “↑ “ to open gate, press button “...
Page 31: Assembly Guide - Weather Station
Assembly Guide - Weather Station Use temperature and humidity sensor to detect the value of temperature and humidity, and show on 4 digital LED module as a weather station.
Page 32 Assembly Guide - Weather Station 1x Beam 1030-68 1x Beam 1030-100 1x Beam 1030-68 1x Beam 1030-100 4x Screw M4*6 4x Screw M4*6 1x Temperature Humidity Sensor 1x 4 Digital LED Module 2x Nut M4 1x Temperature Humidity Sensor 4x Screw M4*20 2x Nut M4 1x 4 Digital LED Module Note:...
Page 33 Assembly Guide - Weather Station 2x RJ11 Cable - 20cm 4 Digital LED Module- Port B Temperature and Humidity Sensor- Port C 2x RJ11 Cable - 20cm 4 Digital LED Module→ RJ11 Cable-20cm→Port B Temperature Humidity Sensor→ RJ11 Cable-20cm→Port C...
Page 34 How to play 1. Touch the power switch to turn on ELF mini V2.0. 2. Press number button 6 on IR remote control. 3. Use temperature humidity sensor to detect the value of temperature and humidity, and show on Digital LED Module as aweather station. Coding - Weather Station...
Page 35: Assembly Guide - Parking Lot System

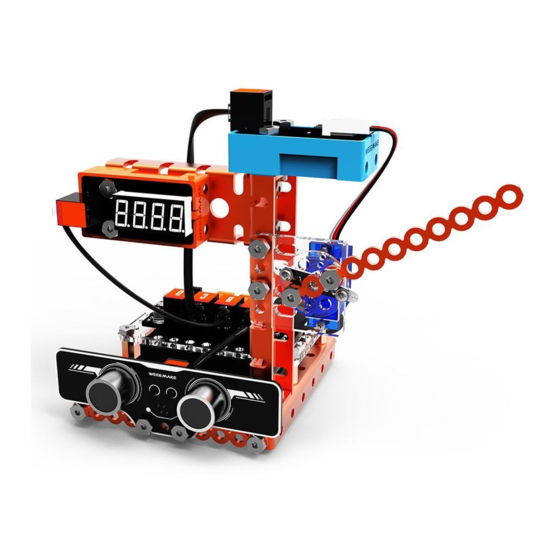

Assembly Guide - Parking Lot System Ultrasonic sensor will detect if any car needs to enter the parking lot; if yes, open the gate that controlled by servo, and count on 4 digital LED module. If a car needs to leave the parking lot, use IR remote control to open the gate, and number on 4 digital LED module will reduce by 1.
Page 36 Assembly Guide - Parking Lot System 1x Beam 1030-68 1x Beam 1030-100 1x Beam 1030-68 1x Beam 1030-100 4x Screw M4*6 4xScrew M4*6 1x 9g Servo 2x Nut M2 1x 9g Servo Bracket 1x 9g Servo 2x Nut M4 2x Screw M2*10 2x Screw M2*10 2x Screw M4*8 2x Nut M2...
Page 37 Assembly Guide -Parking Lot System 1x9g Servo Arm V1 1x9g Servo Tiller 1x9g Servo Tiller 1x9g Servo Arm V1 1 x Tapping Screw M2*6 2 x Tapping Screw M2*8 1 x Tapping Screw M2*6 2 x Tapping Screw M2*8 2xNut M4 1xLinkage 0208-88 1xLinkage 0208-88 2xScrew M4*8...
Page 38 Assembly Guide - Parking Lot System 2x Screw M4*20 1x RJ11 Adapter Module 1x RJ11 Adapter Module 1x 4 Digital LED Module 4x Nut M4 1x RGB Ultrasonic Sensor V1.0 4x Screw M4*20 2x Screw M4*8 4x Nut M4 2x Screw M4*20 Note: 1x4 Digital LED Module When installing the electronic module,...
Page 39 How to play 1. Touch the power switch to turn on ELF mini V2.0. 2. Press number button 7 on IR remote control. 3. Ultrasonic sensor will detect if any car needs to enter the parking lot; if yes, open the gate that controlled by servo, and count 4 Digital LED Module.
Page 40: Software
Software WeeeCode Graphical Programming Software WeeeCode is a graphical programming software that developed by WEEEMAKE on the basis of Scratch 2.0 and Scratch 3.0. It supports graphical programming as well as Arduino IDE code. In Weeecode, you only need to drag and drop the code modules to create lots of programs and showcases.
Page 41: Sensors And Electronic Modules Guide
Sensors and Electronic Modules Guide Sound Sensor RJ11 Port ATmega328P Light Sensor IR Receiver Micro USB Touch Power Switch Buzzer Wireless Communication Port Power Indicator DC 3.7V Power Port Motor Port (3.7V Li-polymer Battery) DC 6V Power Port (4 AA Battery Holder)
Page 42 Sensors and Electronic Modules Guide 1. Take out IR Remote Control, insert CR2025 Button Cell (not included in package); 2. IR remote control guide: Tip: The battery of IR remote control is CR2025 button cell CR2025 Button Cell (not included in package) servo up servo open once servo down...
Page 43 Sensors and Electronic Modules Guide Picture Description Features Speciﬁcation 4 digital LED module adopts a 4-digit Highlight 4 digital LED display, allow users to see the content Highlight 7 segment display, allow users to see common anode digital tube for displaying even in the day.
Page 44 Sensors and Electronic Modules Guide Picture Description Features Speciﬁcation Temperature and Humidity Sensor is a sensor Relative Humidity and temperature measurement. Operating voltage: 5V DC. that contains a calibrated digital signal output. Full range temperature compensation calibrated. Temperature range: 0-50℃ ± 2℃ A unique capacitive sensor element measures Long term stability.
Page 45: Home Inventor Kit-Warranty
Home Inventor Kit-Warranty FCC Home Inventor Kit FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
Page 46 180002 ,181002 Thank you for your interest in the products and services of WeeeMake. This Limited Warranty covers any defects in material or workmanship under normal use during one year since the date of purchase from authorized dealer. During the Warranty Period, WeeeMake will repair or replace, at no charge, products or parts of a product that proves defective because of improper material or workmanship, under normal use and maintenance;...
Page 48 为美致新...
Page 49 2018.06.07...
