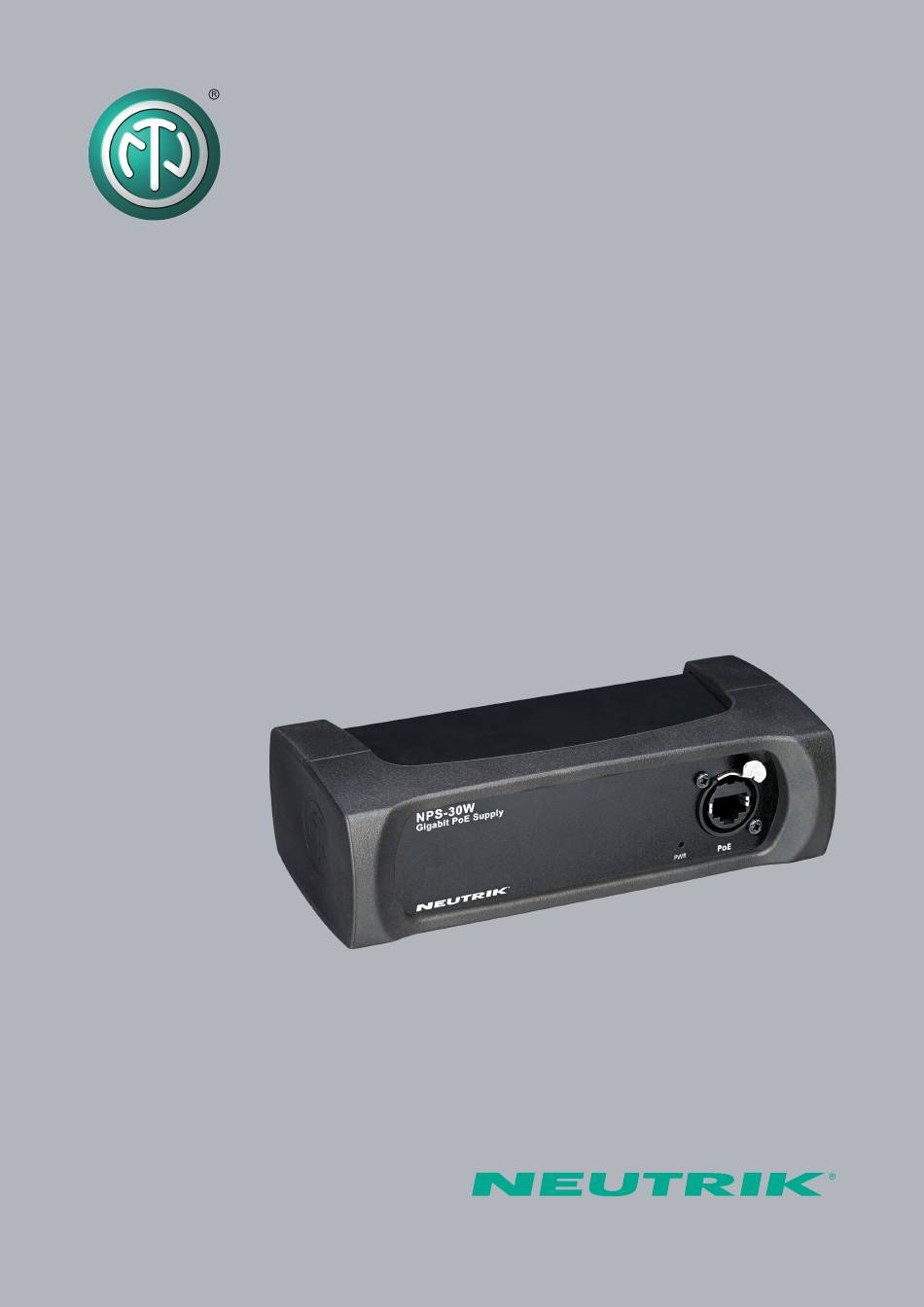

Page 1: User Manual
User Manual NPS-30W Gigabit PoE Supply... - Page 2 This user manual is protected by copyright. The user manual must not be duplicated, reproduced, microfilmed or translated, nor must it be converted to be saved and processed in IT systems, neither in the form of excerpts nor in full, without the express written authorization of Neutrik. Copyright by: © Neutrik® AG...
-
Page 3: Table Of Contents
7 Appendix ..............20 7.1 Technical specifications ........20 7.2 PoE (Power over Ethernet) ........20 7.2.1 Definitions .............20 7.2.2 PoE Standards ..........21 7.2.3 Classes and discovery process ......21 User Manual – Gigabit PoE Supply NPS-30W | BDA 579 2020/01 V1... -
Page 4: About This Document
Pass this user manual on to every user, e.g., by lending it, or to the future owner of the product. If this user manual is lost or damaged, a copy of it can be downloaded from the Neutrik's website (www.neutrik.com). -
Page 5: Explanation Of Symbols
Carry out the action steps in the order they are presented. 1.4 Target group This user manual is intended for sound engineers, musicians and personnel who have comprehen- sive experience in sound and event technology. User Manual – Gigabit PoE Supply NPS-30W | BDA 579 2020/01 V1... -
Page 6: Safety
Consult the dealer or an experienced radio/TV technician for help. w NOTE Changes or modifications made to this equipment not expressly approved by Neutrik may void the FCC authorization to operate this equipment. User Manual – Gigabit PoE Supply NPS-30W | BDA 579 2020/01 V1... -
Page 7: Declaration Of Conformity
The Gigabit PoE Supply is a Gigabit power supply used to supply power and transmit data over Ethernet 2.6 Foreseeable improper use The Gigabit PoE Supply is not suitable for use outdoors and in potentially explosive atmospheres. User Manual – Gigabit PoE Supply NPS-30W | BDA 579 2020/01 V1... -
Page 8: Components And Accessories
(Kit includes 2 brackets, 2 fixing screws, 2 torx screws and 2 spacers) Rack panel NRP1RU-2A Removable rubber protection NA-RC Trussmount kit (Kit includes 4 cross screws, 4 fixing screws, 2 safety NA-TM-KIT frames, 1 yoke mount) User Manual – Gigabit PoE Supply NPS-30W | BDA 579 2020/01 V1... -
Page 9: Description Of The Product
Delivers power over ethernet (PoE) and data in 1 Gbps speed. Power LED Indicates that the unit is powered • LED lights up green: Unit is powered. • LED off: Power off. User Manual – Gigabit PoE Supply NPS-30W | BDA 579 2020/01 V1... -
Page 10: Overview Rear
LED lights up green: Unit is powered. device. • LED off: Power off. Power in connection (PowerCON TRUE1) AC 100-240 V - 50 - 60 Hz, max. 0,75 A power connection. User Manual – Gigabit PoE Supply NPS-30W | BDA 579 2020/01 V1... -
Page 11: Operation
NOTE Risk of device damage! Do not combine NPS-30W Gigabit PoE Supply with other PoE Supplies, as this can cause a damage to the powered device due to different pin assignment. When using 2 NPS-30W PoE Supplies, do not use cables with different connection standards (TIA568A vs TIA568B). -
Page 12: Applications
Operation Front Rear NPS-30W Gigabit PoE Supply Power IN www.neutrik.com 5.3 Applications User Manual – Gigabit PoE Supply NPS-30W | BDA 579 2020/01 V1... -
Page 13: Power And Data Redundancy
Operation w NOTE Risk of device damage! Do not combine NPS-30W Gigabit PoE Supply with other PoE Supplies, as this can cause a damage due to different pin assignment. 5.3.1 Power and Data Redundancy Example using NA2-IO-DPRO For Power and Data Redundancy, 2 NPS-30W PoE Supplies are required. -
Page 14: Accessories Assembly Instructions
5.4 Accessories assembly instructions SECONDARY/FEEDTHROUGH PRIMARY NA2-IO-DPRO NPS-30W FEEDTHROUGH 100 / 240 V DPRO controller PRIMARY PRIMARY Switch NA2-IO-DPRO NA2-IO-DLINE Data only Power only Dante ready Power + Data mixing desk User Manual – Gigabit PoE Supply NPS-30W | BDA 579 2020/01 V1... -
Page 15: Mounting Brackets Na-Mb-Kit
Turn the brackets as required for the mounting situation. Tighten the fixing screw firmly. Mount the fixing screw as shown on the picture. Repeat these steps on the opposite side of the device. User Manual – Gigabit PoE Supply NPS-30W | BDA 579 2020/01 V1... -
Page 16: Rack Panel Nrp1Ru-2A
Remove the 4 screws on the front of the device. Remove the rubber protection. Place the device in the rack panel. Fix the device with the four screws. User Manual – Gigabit PoE Supply NPS-30W | BDA 579 2020/01 V1... -
Page 17: Trussmount For Neutrik Network Devices Na-Tm-Kit
Place the device in the yoke mount. Fix the device with the shown screws. Example: The trussmount kit can be used for up to 2 devices. User Manual – Gigabit PoE Supply NPS-30W | BDA 579 2020/01 V1... -
Page 18: After Operation
The Gigabit PoE Supply does not contain any parts that can be maintained or repaired by the user. Only have the Gigabit PoE Supply repaired by a specialist dealer authorized by Neutrik. Check the Gigabit PoE Supply regularly for visible damage to the housings, controls, connections, cables and plugs. -
Page 19: Disposal
Dispose of packaging and packaging elements in accordance with the applicable local regulations. Take device components made of plastic, metal or other recyclables for reclamation in accordance with the applicable local regulations. User Manual – Gigabit PoE Supply NPS-30W | BDA 579 2020/01 V1... -
Page 20: Appendix
PoE Injector: typically a single port device for powering 1 PD. These exist with classification (active) or without (passive). Neutrik's NPS-30W is a passive PoE injector. The term class refers to a maximal power output (see table below). User Manual – Gigabit PoE Supply NPS-30W | BDA 579 2020/01 V1... -
Page 21: Poe Standards
6.49 – 12.95 W IEEE 802.3at 12.95 – 25.5 W IEEE 802.3bt 25.5 – 40 W 40 – 51 W 51 – 62 W 62 – 73 W User Manual – Gigabit PoE Supply NPS-30W | BDA 579 2020/01 V1... - Page 22 User Manual – Gigabit PoE Supply NPS-30W | BDA 579 2020/01 V1...
