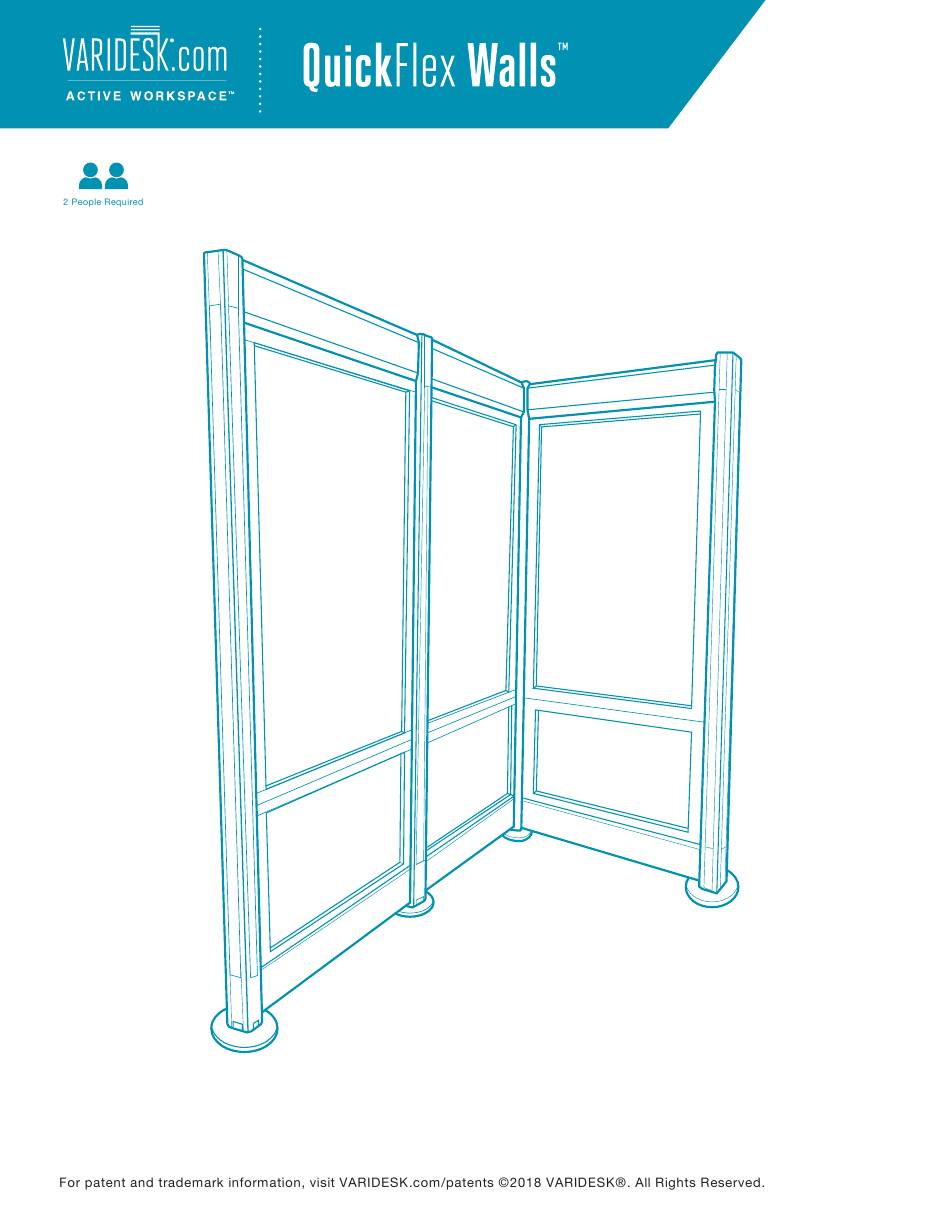

Summary of Contents for VARIDESK.com QuickFlex Walls
-
Page 2: Table Of Contents
1. STANDARD PANEL SET pg 1 2. END PANEL SET (AGAINST EXISTING WALL) pg 6 3. INSTALLING A DOORWAY pg 11 4. ANCHORING TO EXISTING WALL pg 15 5. ANCHORING TO CEILING pg 16 6. DISASSEMBLY pg 17... -
Page 3: Standard Panel Set
STANDARD PANEL SET UPPER STRETCHER LOWER STRETCHER UPPER PANEL STRETCHER COVER LOWER PANEL BASE PLATE POST... - Page 4 Posts come in one box. Make sure the top cap of post is attached, as these can come loose in transit. Secure the post onto the base plate. Use the included Allen key to tighten both sides of the post into the base. If the post will go up against a wall, make sure to use a small base plate.
- Page 5 Once the first 2 posts are assembled, place them where you want to assemble the first wall section. It’s important to start building the walls at the highest floor point. There are upper and lower stretchers that insert into posts. Make sure to insert and secure all upper and lower stretchers before placing in any panels. LOWER STRETCHER For stability, have one person hold the post while another installs the stretchers.
- Page 6 Check level and connection of stretchers, making sure all stretchers are fully seated and secure before installing any panels. Base plates can be adjusted to level if necessary. If you’re creating a corner with your panels, you will need to change the position of the side caps to ensure that you can seat and secure your stretchers.
- Page 7 To install the upper panel, ensure there is one person on each side of the panel. Similar to the lower panel, align the bottom channel on the top panel with the lower panel and push down until the panel clicks into place. Once all panels are installed, install the stretcher covers on both sides of the upper and lower stretchers.
-
Page 8: End Panel Set (Against Existing Wall)
END PANEL SET UPPER STRETCHER LOWER STRETCHER STRETCHER COVER UPPER PANEL POST BRACE BASE PLATE LOWER PANEL SMALL BASE PLATE POST... - Page 9 Posts come in one box. Make sure the top cap of post is attached, as these can come loose in transit. Secure the post onto the small base plate as close to the wall as possible. Use the included Allen key to tighten both sides of the post into the base.
- Page 10 LOWER STRETCHER For stability, have one person hold the post while another installs the stretchers. Install the lower stretcher by inserting one side into one post and then the other side into the next post. Push down until it clicks to lock. UPPER STRETCHER Similar to the lower stretcher, insert the upper stretcher into the anchor points at the top of each post.
- Page 11 Remove side caps at the bottom of the post. Push the post brace in and up to lock on both sides of the post. Adjust foot height to level. The post brace can be used against a wall in conjunction with a wall anchor for additional stability (see page 15 for anchoring instructions).
- Page 12 To install the upper panel, ensure there is one person on each side of the panel. Similar to the lower panel, align the bottom channel on the top panel with the lower panel and push down until the panel clicks into place. Once all panels are installed, install the stretcher covers on both sides of the upper and lower stretchers.
-
Page 13: Installing A Doorway
INSTALLING A DOORWAY SMALL LOWER PANEL SMALL UPPER PANEL DOOR FRAME DOOR POST SMALL UPPER STRETCHER DOOR STRETCHER COVER BASE PLATE DOOR HANDLE SMALL LOWER STRETCHER SMALL STRETCHER COVER... - Page 14 For kits designed to have a doorway with no hanging door, first decide where you want the doorway and install the small panel next to where the doorway will be. Install the upper stretcher between doorway panels. Users with no door are now done with their installation.
- Page 15 Align the door frame with the post. Insert into one post and then the other. Push down on the stretcher and then push up on the draw latches to secure frame in place. Once installed, check level and spacing of the door frame. Adjust the base plates on each side to ensure the frame for the door is level. Align the door withthe top pin, then lower pin.
- Page 16 Once the door is installed, install the door stretcher cover on the door stretcher. Align cover with stretcher and slide down to clip into place.
-
Page 17: Anchoring To Existing Wall
ANCHORING TO EXISTING WALL KIT INCLUDES: ANCHOR CAP WALL ANCHOR WASHER CAP BOLT WALL SCREW Pair the wall anchor with small base plate and post brace piece. Remove existing post cap and replace it with anchor cap. Back screws out of the anchor bracket to be able to lock piece and fully secure into post. Adjust the wall bracket to align with existing wall and use screws to anchor and secure. -
Page 18: Anchoring To Ceiling
ANCHORING TO CEILING KIT INCLUDES: ANCHOR CAP ANCHOR Remove existing post cap and replace it with anchor cap. Back screws partly out of the anchor cap to be able to lock piece and fully secure into post. Once the cap is installed, screw in the eyebolt and anchor to the ceiling. We recommend using a braided cable to anchor. -
Page 19: Disassembly
DISASSEMBLY Pull off stretcher covers. With a person on both sides of upper panel, press spring latch down to remove the upper panel. Remove the lower panel by pulling in the tabs to Undo draw latches and push up on the upper release the lower panel. - Page 20 - - - WARNING: To prevent injuries and product failure, do not use the wall partition for climbing or leaning. Do not use if the product is damaged. WARNING: This product is only intended to be used as described in the instructions. Only use accessories and attachments recommended by the manufacturer.
