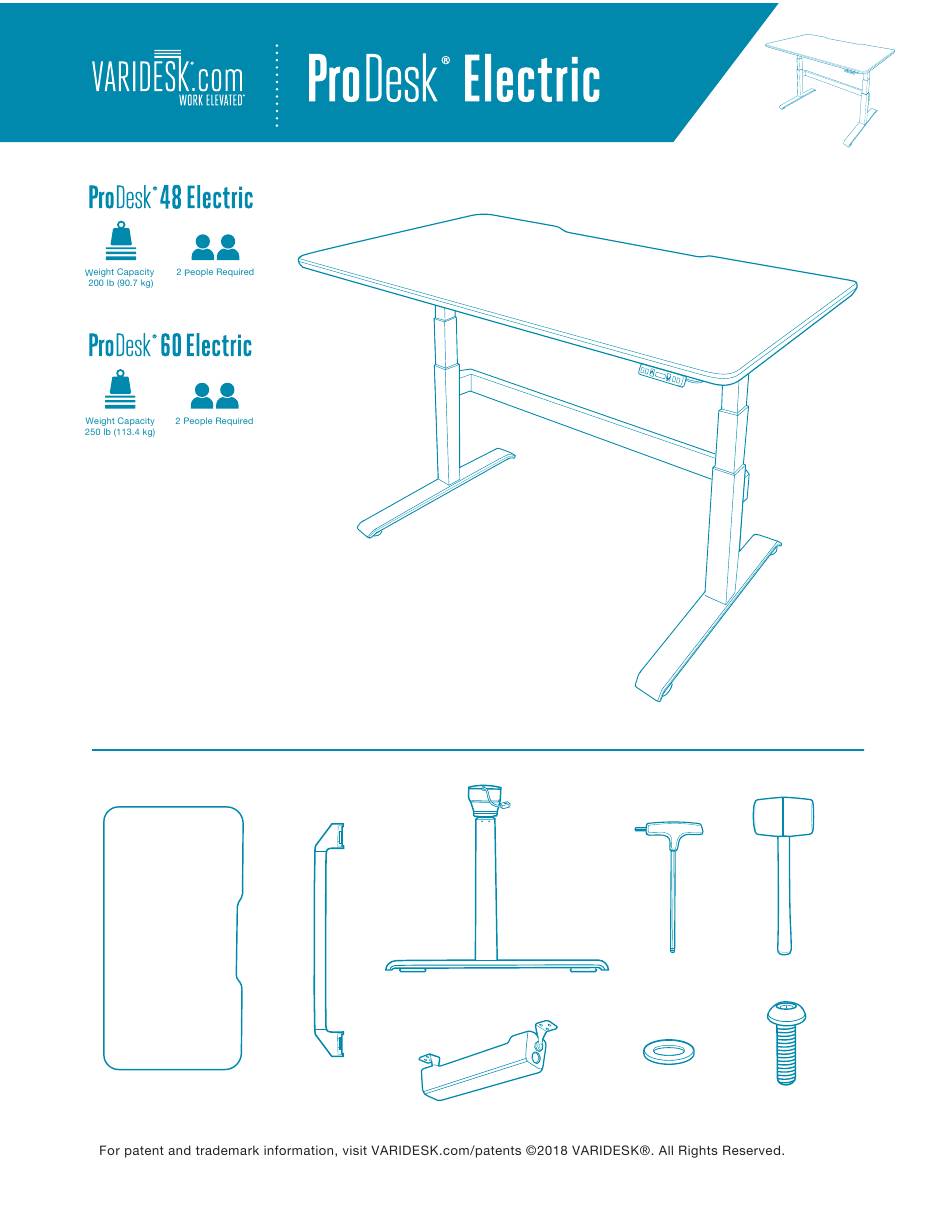

- Page 2 Desktop and desk legs will arrive in separate boxes. We recommend assembling the desk with the desktop face down in the box to prevent any surface scratching. Open the desktop box. Remove the desk legs from their box. Each leg is marked with (L) or (R). Place each leg into the grooved area on the corresponding side of the metal frame, with the longer section of the foot facing towards the front of the desk (the side with the straight edge and control panel).
- Page 3 Slide the cable management tray into the notches above the bracket and push until it clicks into place. Run the power cord through the cable tray. Once legs, tray, and power cords are secure, two people should carefully flip the assembled desk to an upright position.
- Page 4 INITIAL SETUP Before first use, you need to initialize the desk. To do this, press and hold the up and down keys simultaneously until the desk reaches its lowest height, slightly raises, and stops. Release the keys. Your desk is now ready for use. After initializing, raise the desk to its highest setting. Once desk is fully raised, place the crossbar on the brackets on the back of each leg.
- Page 5 50 1/2” (129 cm) 25 1/2” (65 cm) HEIGHT SETTINGS AND PREFERENCES The height settings range from 25.5-50.5 inches (65-129 cm). You can program 3 height preferences by raising or lowering the desk to your desired height, pressing the “S” key then pressing 1, 2, or 3. To adjust the desk to one of your programmed settings, press and hold the corresponding number (1, 2, or 3) until the desk has reached the programmed height.
- Page 6 IN CM INCHES TO CENTIMETERS To toggle from inches to centimeters on the display, press and hold the “S” key and then the down arrow key for 3 seconds or until the display numbers change. RECALIBRATING The desk may need to be recalibrated if the screen is not showing the correct height—for instance, if the display reads 50.5, but it is in the fully lowered position.
- Page 7 TROUBLESHOOTING AND RESET If the legs have no response, your desk may need to be reset. Follow the initial setup instructions and ensure all connections are in the correct location and fully plugged in. If the legs are rising slowly, check the input power connection to make sure it’s secured correctly.
- Page 8 WARNING: WARNING: Do not open any of the components, Risk of finger injury – pinching there is a danger of electric shock. hazard. Use caution when lowering desk. WARNING: CAUTION: : Risk of Electric Shock. Connect Beverages such as water or this desk to a properly grounded outlet only.
