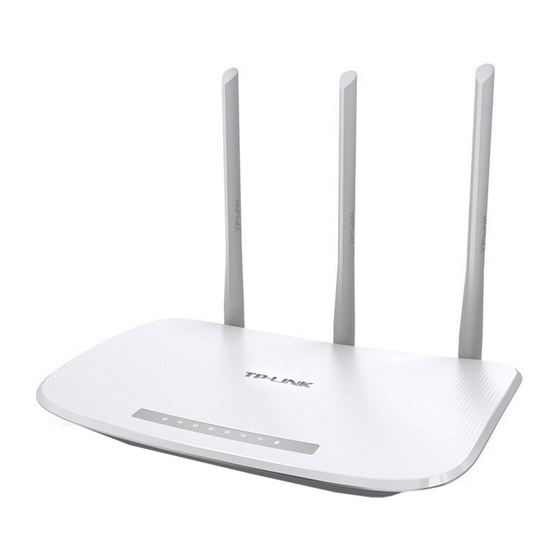

TP-Link TL-WR845N Quick Installation Manual

Quick Installation Guide
Multi-mode Router
Meet all your needs.
If your internet connection is through an Ethernet
cable directly from the wall, instead of through a
modem, connect the Ethernet cable to the router's
INTERNET port, and skip steps 1, 2, and 3.
Configure the router
1. Connect your computer to the router (Wired or Wireless)
Wired
Turn off the Wi-Fi on your computer and connect it to the router
via an Ethernet cable.
Wireless
Connect your device to
the router's Wi-Fi using
the SSID (network name)
and Wireless Password
printed on the label at
the bottom of the router.
Power adapter
Connect the power adapter
to the router.
2. Launch a web browser, and enter http://tplinkwifi.net or
http://192.168.0.1 in the address bar. Use admin for both
username and password to log in.
Note: If the login window does not appear, please refer to FAQ > Q1.
Wireless Password/PIN:XXXXXXXX
SSID:TP-Link_XXXX
Image may differ from your actual product.
Router
Connect the modem to the router's
INTERNET port via an Ethernet cable.
http://tplinkwifi.net
admin
admin
Log In
Turn off the modem, and remove
the backup battery if it has one.
Turn on the modem and then wait
about 2 minutes for it to restart.
Modem
3. Click Next to start the Quick Setup. Select Wireless Router and
follow the step-by-step instructions to set up the internet
connection.
Note: If you are not sure of the WAN Connection Type, please click Auto-Detect.
