TP-Link TL-WR845N Quick Installation Manual

Quick Installation Guide

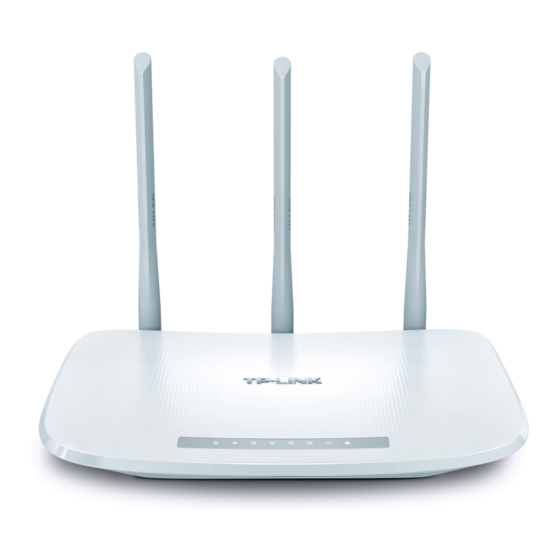

300Mbps Wireless N Router
TL-WR845N
Connect the Hardware
If your Internet connection is through an Ethernet cable from the wall
instead of through a DSL / Cable / Satellite modem, connect the
Ethernet cable directly to the router's Internet port, and follow Step 4
and 5 to complete the hardware connection.
Internet
Power adapter
Modem
Power adapter
4
Connect the power adapter
to the router and turn on
the router.
1
Turn off the modem and
remove the backup battery
if it has one.
2
Connect the modem to the
router's Internet port with an
Ethernet cable.
3
Turn on the modem and
then wait about 2 minutes
for it to restart.
Router
5
Confirm that the following LEDs
are on and solid to verify the
hardware connection is correct.
Power Wi-Fi Internet
On On On
Note: If the Wi-Fi LED is off, please press
the Wi-Fi/WPS Button on the back panel
for more than 2 seconds and the LED
should turn solid on in a few seconds.
