Summary of Contents for iCoolsport iCool Compact Series

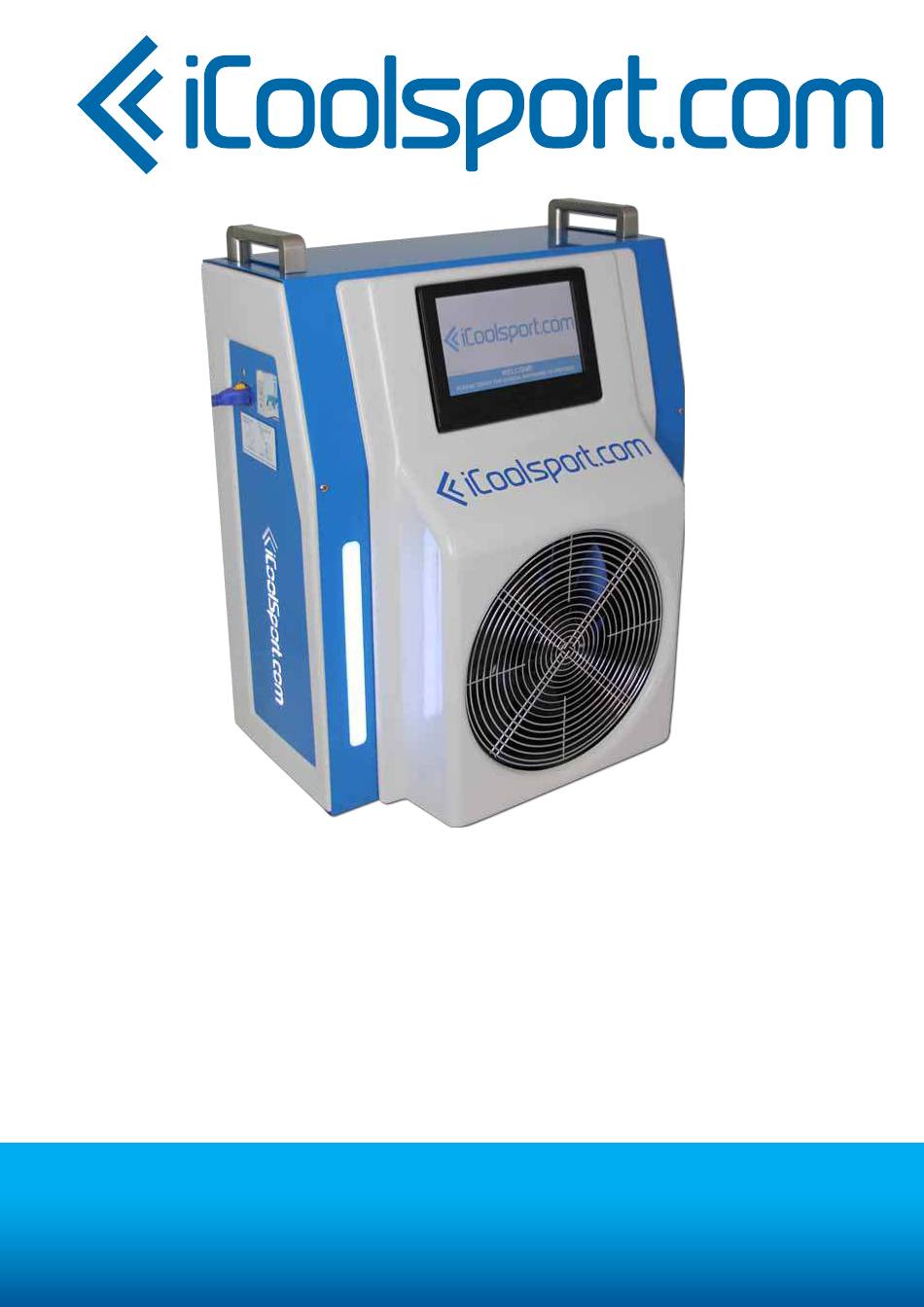

- Page 1 Compact Range Models Compact - Cool Compact - Twin Compact - Dual Temp Compact XP Owner’s Manual for Compact Range...
- Page 2 TheRe aRe FOUR veRsiOns OF The iCOOL COMPaCTs The operation of all 4 models is basically the same except where noted. OMPaCT Cool is a popular lower cost system for fast cooling of a single person pool. it provides 3800 watts of cooling power, fully automatic control and excellent mobility.
- Page 3 2 to 4 capfuls per day is usually enough. iCool also produces a very effective anti bacterial solution especially formulated use with for ice bath pools and equipment. Please see our web site for details. Owner’s Manual Compact Range iCoolsport.com Page 3...
-
Page 4: Quick Start Guide
QUiCK sTaRT GUiDe The following is a quick start guide to get your iCool up and running quickly, however you should read the entire manual to get the most out of your iCool. sTeP 1 Before you fill the pool you must connect the 2 hoses provided. iCool hoses have convenient snap fittings that are very quick and easy to use. - Page 5 The status bars glow BLUe when only the pump is running, GReen when the cooling system is running and when the heating system is running. if the bars glow ReD when you start cooling please refer to page 7 for an explanation. Owner’s Manual Compact Range iCoolsport.com Page 5...
- Page 6 if you ordered a personal logo screen your WeLCOMe screen will look like the samples below. Otherwise the standard iCool welcome screen will appear TOUCh YOUR LOGO OR WeLCOMe sCReen anYWheRe TO COnTinUe The Main OPeRaTinG sCReen WiLL nOW aPPeaR. Main OPeRaTinG sCReen provides many options which are covered elsewhere in this manual, however to quickly start the system you can simply accept the default water temperature setting of 15ºC or, to select a...
- Page 7 40ºF as this would put athletes using the system unattended at risk of hypothermia. however, the iCool is easily powerful enough to freeze the water and if this happens the safety screen above will appear and the system will stop. Owner’s Manual Compact Range iCoolsport.com Page 7...
-
Page 8: Detailed Operation
Detailed Operation sTaRT sTaRT sTOP sTaRT Main OPeRaTiOn sCReen DeTaiLs OF The Main OPeRaTinG sCReen The POOL TeMPeRaTURe window shows the actual water temperature returning from the pool. This will vary slightly to the actual temperature in the pool because for safety reasons the electronic sensor is in the cooling unit not in the pool. - Page 9 Owner’s Manual Compact Range iCoolsport.com Page 9...
- Page 10 TeMPeRaTURe seTTinGs When your iCool starts up, you are offered 3 different ways to choose a water temperature setting. Whichever method choose eventually takes you to the main run screen. if you make no setting, the system will automatically insert 15°C.(around 59ºF) in this case you can proceed directly to start the pump and cooling system.
- Page 11 When this button is pressed the countdown will repeat until the repeat function is cancelled by This button starts the pressing once again. a red dot countdown indicates that it is active Owner’s Manual Compact Range iCoolsport.com Page 11...
- Page 12 sYsTeM...
- Page 13 To unlock the system and returned to normal, repeat the procedure. Touch and hold the iCool icon for more than 10 seconds. The lock will disappear and all functions will return to normal. Owner’s Manual Compact Range iCoolsport.com Page 13...
-
Page 14: Troubleshooting
You will be contacted promptly and we will explain how to work around your problem until we can arrange repairs. -
Page 15: Specifications
24x19.5x9.5 inches MaTeRiaLs Cabinet and chassis. Marine Grade aluminium Coatings heat fused appliance grade enamel heat exchanger Titanium heat Pump Plumbing Commercial Refrigeration grade copper handles stainless steel Plastic covers Co extruded acrylic Owner’s Manual Compact Range iCoolsport.com Page 15... - Page 16 Thank you for choosing iCool the world’s most popular ice bath therapy and recovery systems. Published 2015 by iCool (australia) Pty Ltd iCool hK (China) Ltd. iCool is a Registered Trade Mark worldwide. Contact: info@icoolsport.com...
