StorageWorks

Caution: Parts can be damaged by

electrostatic discharge. Keep parts in their

containers until needed. Ensure you are

properly grounded when touching static-

sensitive components.

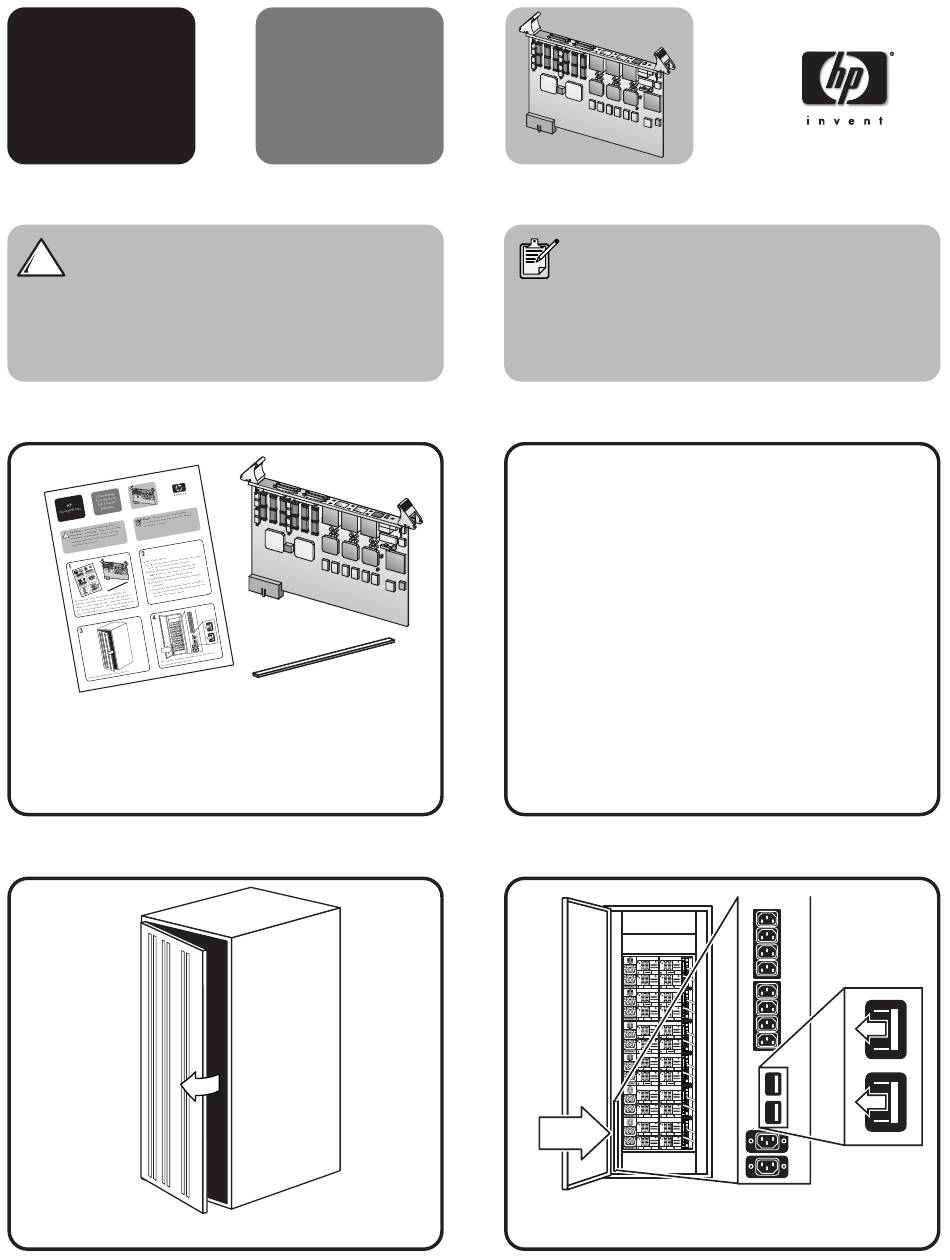

Be sure you have this poster, an e2400-160

robotics controller card, the rubber RFI gasket, a

razor or other scraping tool, isopropyl alcohol, a

#2 Phillips screwdriver, and a slotted screwdriver.

See EN0605W for how to order the gasket.

Open the back door of the library.

Connecting

Two SANs to

ESL E-Series

Robotics

Note: This part is not hot-pluggable.

It is necessary to power down the library

to replace this part.

Power off the library:

Use your backup software to empty the

picker or to verify that the picker is empty.

Press and hold the power button, located

on the front of the library behind the laptop

tray, until the front panel clears.

Flip the two breaker switches off (to the left) at

the power distribution unit.

Page 1 Connecting Two SANs to ESL E-Series StorageWorks Robotics Caution: Parts can be damaged by Note: This part is not hot-pluggable. electrostatic discharge. Keep parts in their It is necessary to power down the library containers until needed. Ensure you are to replace this part.
Page 2 Note: To gain the access needed to continue with this procedure, HP recommends removing drive cluster 0. This poster provides instructions for this method. You can also obtain access by emptying and removing the card cage, but that is usually more difficult. Instructions for removing the card cage are not presented here.
Page 3 Remove the tie wrap that secures the cables to the drive handle on the lower right drive (drive C) Remove the FC cables from the clips on the drives. in the cluster. Remove all drives from cluster 0. For each drive, use a slotted screwdriver to loosen the captive screw at the upper left corner of Label and disconnect the cables connected to...
Page 4 Remove the e1200-160 robotics controller card Use a #2 Phillips screwdriver to loosen the captive screws in the black ejector handles at both ends of the robotics controller. Push the Label and disconnect the cables attached to the ejector handles toward the outside, then pull on robotics controller card.
