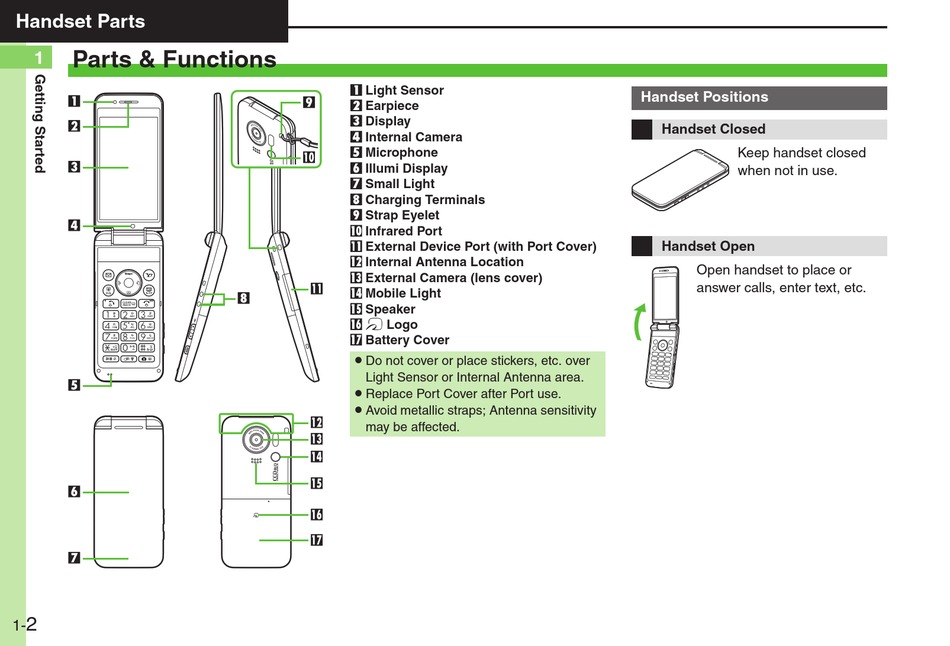

Handset Parts

1 Parts & Functions
1
2
3
4
5
6
7
2
1-
1 Light Sensor
9
2 Earpiece

3 Display

4 Internal Camera
5 Microphone
a
6 Illumi Display
7 Small Light
8 Charging Terminals
9 Strap Eyelet
a Infrared Port
b External Device Port (with Port Cover)
c Internal Antenna Location
d External Camera (lens cover)
b
e Mobile Light
8
f Speaker
g m Logo
h Battery Cover
. Do not cover or place stickers, etc. over
Light Sensor or Internal Antenna area.
. Replace Port Cover after Port use.
. Avoid metallic straps; Antenna sensitivity
c
may be affected.
d
e
f
g
h
Handset Positions
Handset Closed
Keep handset closed
when not in use.
Handset Open
Open handset to place or
answer calls, enter text, etc.
