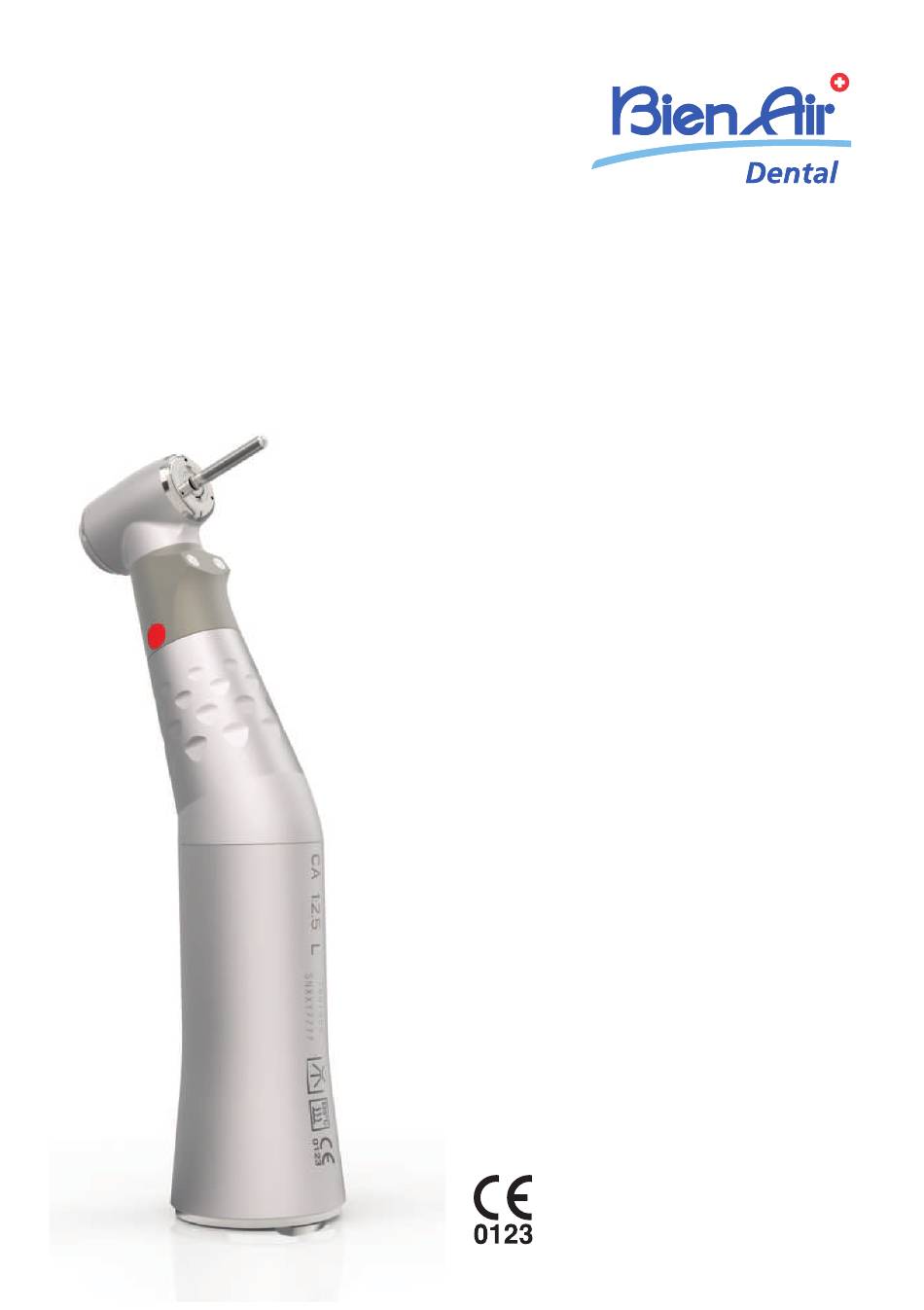

- Page 1 CA 1: 2.5L MS ENG INSTRUCTIONS FOR USE Other languages available on www.bienair.com/ifu REF 2100337-0001/2019.11...
- Page 2 Set supplied (REF) CA 1 :2.5L MS 1601055-001 Optional accessories (REF) 1600617-006 1600036-006 1600064-006 1000001-010 REF 2100337-0001/2019.11 CA 1 :2.5L MS • © Bien-Air Dental SA...
-
Page 3: Table Of Contents
Table of contents 7.2 Disposal 1 Symbols 1.1 Description of symbols used 8 General information 2 Identification & Intended Use 5 8.1 Terms of guarantee 8.2 References 2.1 Identification 8.2.1 Set supplied (see cover) 2.2 Classification 8.2.2 Optional accessories (see cover) 15 2.3 Intended use 3 Precautions for use 4 Description... -
Page 4: Symbols
ENG INSTRUCTIONS FOR USE 1 Symbols 1.1 Description of symbols used Description Description Manufacturer. Reference number. CE Marking with number of the no- Serial number. tified body. Separate collection of electric and electronic equip- CAUTION! ment. Refer to the accompanying Recyclable materials. -
Page 5: Identification & Intended Use
2 Identification & Intended Use 2.1 Identification 2.3 Intended use Medical device manufactured Product intended for professional use only. Use in general dentistry and in Switzerland by Bien-Air Dental SA. dental surgery. Type Contra-angle handpiece (CA) speed mul- CAUTION tiplier ratio with light and external The contra-angle must not receive irrigation. -
Page 6: Precautions For Use
3 Precautions for use This medical device accessory must be CAUTION used by a competent person, in par- It is essential to use dry, purified com- ticular in compliance with the legal pressed air in order to ensure the long provisions in force regarding oc- working life of the device. -
Page 7: Description
135°C 135°C FIG. 1 (CA 1 :2.5L MS ) 4 Description 4.1 Overview Electric power supply VDC or VAC: 3.4 ±0.3 V. The power sup- FIG. 1 ply systems must be in compliance with (1) Centering for the micromotor IEC 60601-1 and IEC 60601-1-2 stand- (2) Light output ards. -
Page 8: Operation
Type 3 / ISO 1797-1 Code 4-5 / ISO 6360-1 min. 11 mm ø 1,60 mm max. 21 mm FIG. 2 FIG. 3 Bur chuck CAUTION The use of a coolant while the in- FIG. 2 strument is in operation is mandatory, Tip diameter 1.60 mm, type 3 as per failure comply with... -
Page 9: Cleaning And Servicing
6 Cleaning and 6.1.2 Suitable maintenance products servicing Automatic cleaning-disinfection: Low alkaline or enzymatic detergent re- 6.1 Maintenance commended for cleaning in a washer- Clean, lubricate and sterilise the device disinfector for dental or surgical in- separately between patients. struments (pH 6 - 9.5). Manual cleaning-disinfection: CAUTION Spraynet. -
Page 10: Cleaning
FIG. 4 FIG. 5 6.2 Cleaning Internal cleaning with aquacare 1. Shake the Aquacare before use. Preparation 2. Use the Aquacare attachment (see 1. Disconnect the device from the coup- FIG. 5 step 1). ling and remove the bur (FIG. 3 step 3. Keep the tip of the instrument point- ing down and protect with an absorbent cloth;... - Page 11 FIG. 6 FIG. 7 Internal and external cleaning with spraynet 1. Shake the Spraynet before use. 2. Use the Spraynet attachment (see FIG. 6 step 1). 3. Keep the tip of the instrument point- ing down and protect with an absorbent cloth; press the Spraynet button down for 1 second (see FIG. 6 step 2).
-
Page 12: Cleaning-Disinfection
FIG. 8 6.3 Cleaning-disinfection 6.3.2 Automatic cleaning-disinfection 6.3.1 Manual cleaning/disinfection CAUTION FIG. 8 Only for device engraved with 1. Dip the device in a tank containing ap- propriate detergent and, using a soft Washer-disinfector brush, clean and disinfect the device, Carry out automatic cleaning- dis- clean the exterior of the device in ac- infection using an approved washer- cordance with the instructions of the... -
Page 13: Lubrication
FIG. 9 FIG. 10 6.4 Lubrication FIG. 10 After cleaning, disinfecting and ster- ilising the device, and before using it, 6.4.1 Verifying cleanliness start it up at moderate speed with a Visually inspect the device to ensure it is bur in the locking mechanism for 10 to clean. -
Page 14: Packing & Disposal
7 Packing & 8 General disposal information 7.1 Transport and storage 8.1 Terms of guarantee conditions Bien-Air Dental SA grants the user a warranty covering any operating fault, There are no particular transport and or material or manufacturing defect. storage conditions required. The warranty period for this medical Packing device is 12 months from the date of in-... -
Page 15: References
8.2.2 Optional accessories CAUTION (see cover) The warranty becomes null and void if damage and its consequences result from incorrect servicing or modification Legend by third parties not authorised Aquacare, cleaning spray by Bien-Air Dental SA. 1600617-006 physiological liquid 500m, box of Warranty requests will only be taken 6 cans into consideration if the product is ac-... - Page 17 NOTES...
- Page 18 NOTES...
- Page 19 NOTES...
- Page 20 Bien-Air Dental SA Länggasse 60 Case postale 2500 Bienne 6 Switzerland Tel. +41 (0)32 344 64 64 Fax +41 (0)32 344 64 91 dental@bienair.com Other adresses available at www.bienair.com REF 2100337-0001/2019.11 CA 1 :2.5L MS • © Bien-Air Dental SA...
