DMP Electronics 1154 Installation Manual

1154 WIRELESS FOUR-ZONE
INPUT MODULE
Installation Guide

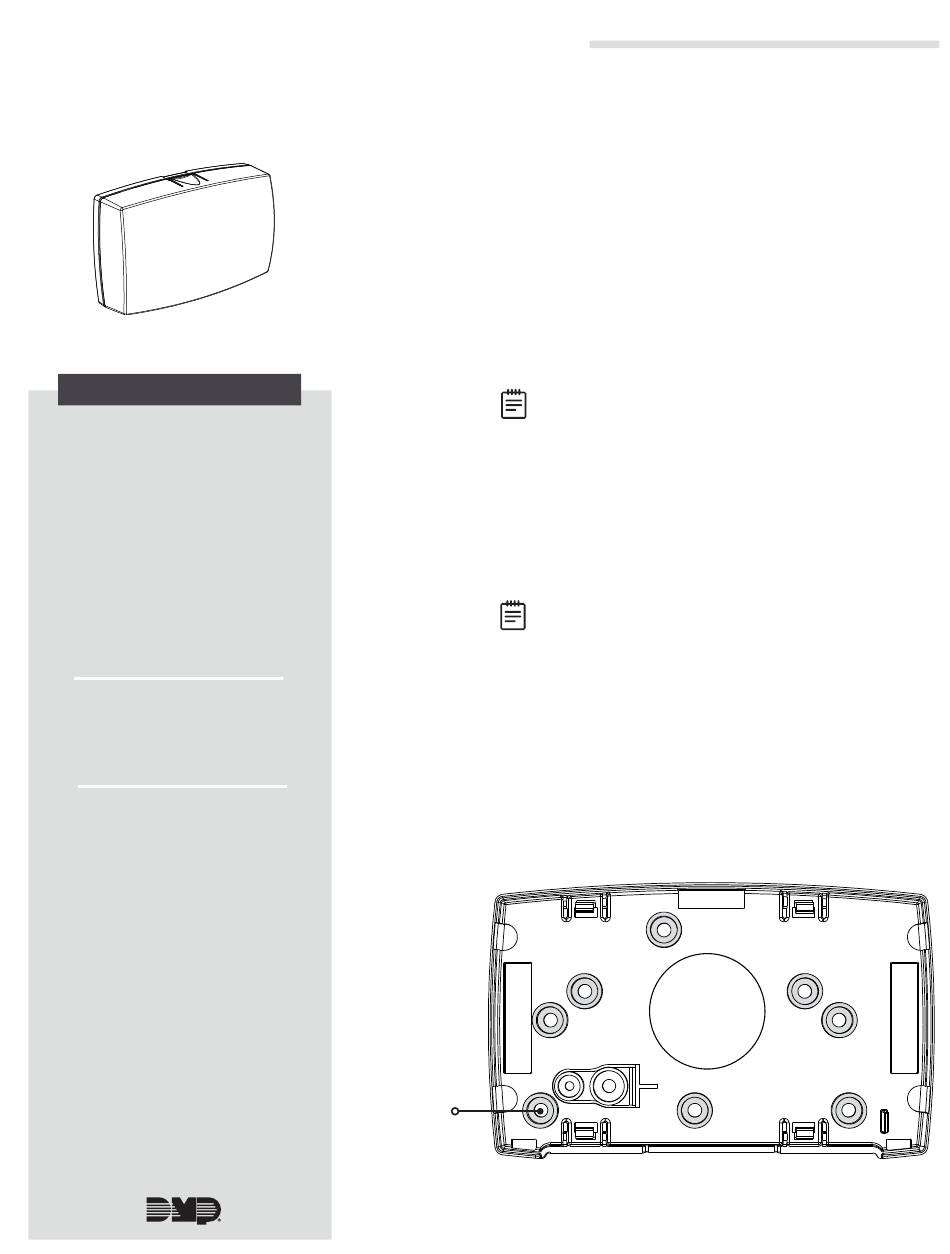

Figure 1: 1154 Wireless Four-Zone
Input Module

DESCRIPTION

The 1154 Wireless Four-Zone Input
Module is designed to convert up to
four existing normally closed, hardwired
zones (such as motion sensors, door
& window contacts, etc.) into wireless
zones.
When a DMP panel is installed in a
location with an existing non-DMP panel,
then the 1154 can be connected to the
existing panel's 12 V auxillary power.
Once connected, the 1154 Wireless Input
Module converts up to four existing
hardwired zones into wireless zones.
This allows the new DMP panel to
communicate with the existing zones.
Compatibility
All DMP 1100 Series Wireless Receivers
and burglary panels. See the last page
for compatibility details.
What is Included?
• 1154 Wireless Four-Zone Input
Module
• 3 V Lithium CR123A battery
• Hardware pack
1

PROGRAM THE PANEL

The 1154 can be programmed with up to four zones.
When programming the 1154 in the panel, refer to the
panel programming guide as needed.
1. In ZONE INFORMATION, enter the zone
number. Press CMD.
2. Enter the ZONE NAME and press CMD.
3. Once ZONE TYPE appears, select the
appropriate zone type. Press CMD.
4. At the NEXT ZONE prompt, select NO. If you
see the WIRELESS ZONE prompt, select YES.
Note: This option only displays if the zone
number can be programmed as wireless. This
option does not appear for hardwire zones.
5. Enter the eight-digit SERIAL NUMBER. Press
CMD.
6. Enter the CONTACT number being used.
Enter the SUPERVSN TIME and press CMD.
7.
8. At the NEXT ZONE prompt, select YES and
continue to program up to three more zones.
Note: Zones must be entered sequentially. For
example, If you begin by programming zone 71,
program zone 72 as the next contact.
2

MOUNT THE 1154

The 1154 should be placed close to the existing
non-DMP panel.
Mount the device on a flat surface such as a wall or
single-gang box. When using the optional Model 376L
plug-in power supply, mount the device near a wall
outlet. See Figure 2 for mounting hole locations on
the housing base.
Mounting Hole
Figure 2: Mounting Hole Locations
