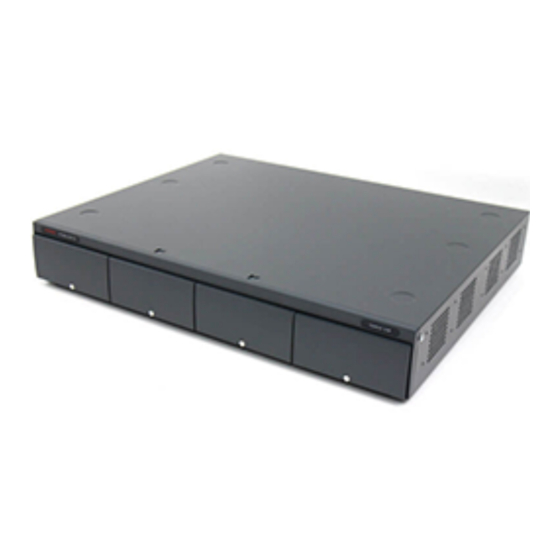

Application Notes for Polycom® SoundStation® IP 7000 and
Avaya IP Office 500 V2 – Issue 1.1
These Application Notes describe the procedures for configuring Polycom® SoundStation® IP
7000 which was compliance tested with Avaya IP Office 500 V2.
The overall objective of the interoperability compliance testing was to verify Polycom®
SoundStation® IP 7000 features and functionality in an environment comprised of Avaya IP
Office 500 V2, and various Avaya H.323 IP and DCP Telephones.
Information in these Application Notes has been obtained through DevConnect compliance
testing and additional technical discussions. Testing was conducted via the DevConnect
Program at the Avaya Solution and Interoperability Test Lab.
CRK; Reviewed:
SPOC 9/23/2011
Abstract
Solution & Interoperability Test Lab Application Notes
©2011 Avaya Inc. All Rights Reserved.
1 of 16
IP7000-IPO
