Page 1: Operation Manual

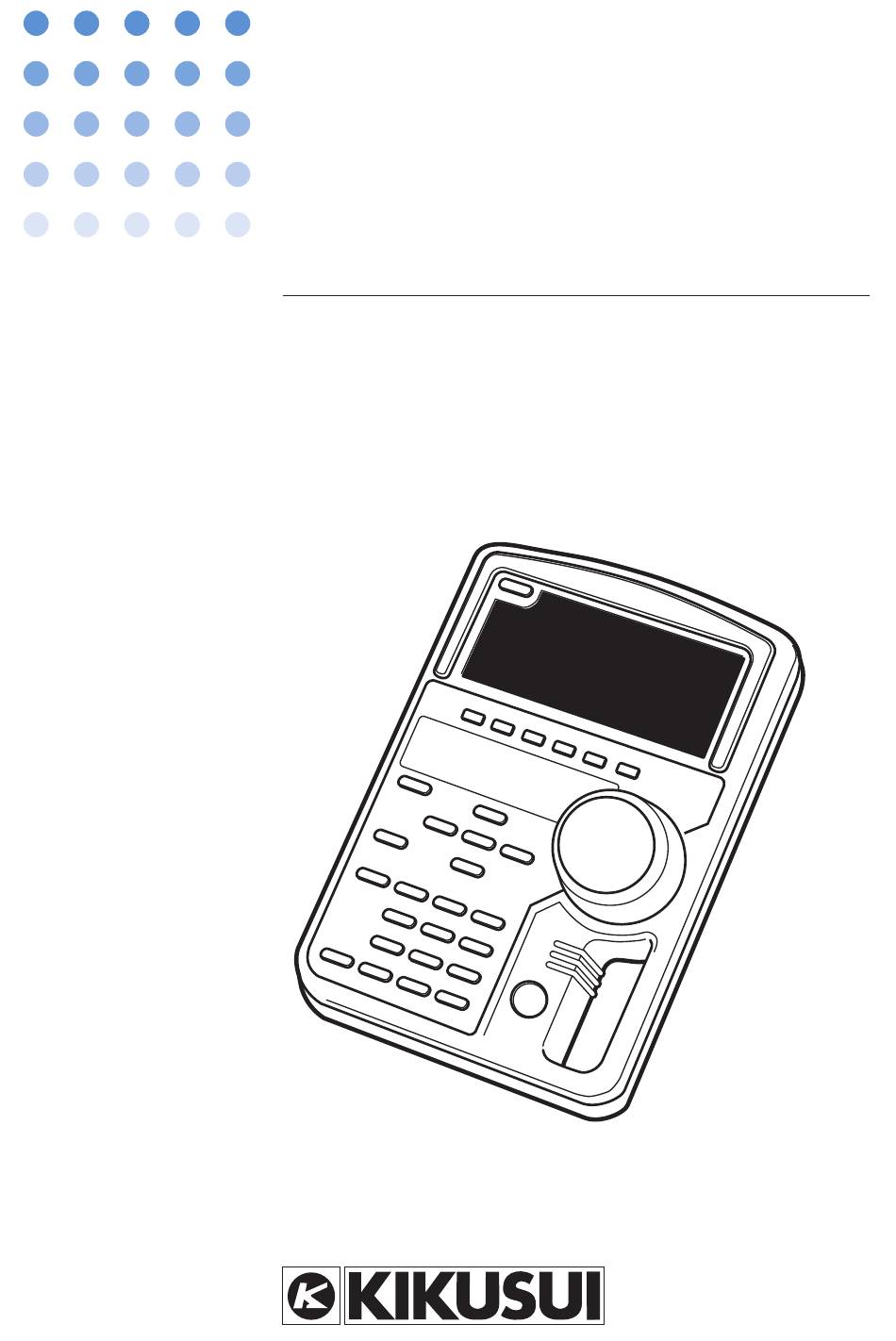

Part No. Z1-002-752, IB003981 Jul. 2003 OPERATION MANUAL REMOTE CONTROLLER PCR-LA Series RC03-PCR-LA... - Page 2 If the manual it gets lost or soiled, a ne w cop y can be pro vided for a fee. In either case, please contact Kikusui distrib utor/agent, and pro vide the “Kikusui P art No. ” gi v en on co v er .
-
Page 3: Safety Symbols
Saf ety Symbols F or the safe use and safe maintenance of this product, the following symbols are used throughout this manual and on the product. Understand the meanings of the symbols and observe the instructions they indicate (the choice of sym- bols used depends on the products). -
Page 4: Arrangement Of This Manual
Arrang ement of this man ual This Operation Manual is made up of the follo wing sections. Chapter 1 General Outlines and describes the features of the RC03-PCR-LA Remote Controller . Chapter 2 Precautions and Preparation for Use Pro vides the precautions and preparation information that must be understood for use of the Remote Controller . -
Page 5: Table Of Contents
Contents Safety Symbols - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - I Arrangement of this manual - - - - - - - - - - - - - - - - - - - - - - - - - - - - II Chapter 1 General 1.1 Outline - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-1 1.2 Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1-1... - Page 6 Appendix A.1 Hierarchy of Remote Controller Key Operating Menus - - - - - A-1 A.2 Power Line Abnormality Simulation Operation Setting Sheet - A-4 Index - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - I-1 IV Contents RC03-PCR-LA...
-
Page 7: Chapter 1 General
For the procedure for checking the ROM version of the Remote Con- troller, see “3.2 Operation Check”. For the procedure for checking the ROM version of the PCR-LA Series AC power supply, see the PCR- LA Series AC Power Supply Operation Manual. - Page 8 1-2 General RC03-PCR-LA...
-
Page 9: Chapter 2 Precautions And Preparation For Use
Also, check that all items listed below have been provided. If the device appears to be damaged or if any accessory missing, notify Kikusui distributor/agent. Remote controller (1) Remote controller cable (1 pc.) -
Page 10: Handling Precautions
floppy disks and credit cards. Combination with Other Options PCR-LA Series AC power supplies are provided with a variety of options in addition to the RC03-PCR-LA Remote Controller. Note that this Remote Controller cannot be used simultaneously with another option. -
Page 11: Connecting The Remote Controller Cable
Connecting the Remote Controller Cable • Before connecting the controller cable, always turn CAUTION OFF the PCR-LA AC power supply POWER switch. When removing the cable, first turn the POWER switch of the PCR-LA power supply OFF. NOTE • When turning ON the PCR-LA AC power supply POWER switch, the PCR-LA AC power supply identifies the Remote Controller that is connected. -
Page 12: Installation Of The Split Cores
Installation of the Split Cores 1. Unlock the core and open it. 2. Close the core so that the cable is not caught in it. 3. As shown in Fig. 2-3, tie up the cable with the accompany- ing stopper band. Keep the distance between the plug and the core below 100 mm. -
Page 13: Moving Precautions
Removal 1. As shown in Fig. 2-5, unlock the connector cover with twee- zers. 2. Slowly pulled down the connector cover. Fig.2-5 Connector Cover Removal Moving Precautions ■ Before moving the PCR-LA AC power supply, always dis- connect the controller cable. Moving a PCR-LA AC power supply with this device connected may place unreasonable stress on the remote controller cable or cause the remote controller to fall. -
Page 14: How To Use The Magnet Sheet
How to Use the Magnet Sheet The Remote Controller has a magnet sheet that can be attached to the back of the remote controller. This allows the remote controller to be placed on the side panel of the PCR-LA AC power supply or other steel surface. -
Page 15: Chapter 3 Operation Check
Chapter 3 Operation Check Describes the operation check that must be conducted prior to opera- tion of the Remote Controller. After connecting the Remote Controller by the steps described in Chapter 2, check the Initial Setup Status and make an operation check. - Page 16 • Home Position DESCRIPTION The status in effect immediately after the POWER switch is turned ON is called the Home Position (regardless of OUT- PUT ON/OFF). To return to the Home Position from another mode, press the ESC key. • ENTER Wait This is the condition in which the ENTER key has not yet been pressed to initiate the operations performed thus far.
-
Page 17: Operation Check
Operation Check • Remote Controller operation must be checked after CAUTION the operation check of the PCR-LA AC power supply has been completed. Operation Check Procedure The following describes how to make an operation check from the Initial Setup Status. 1. - Page 18 3-4 Operation Check RC03-PCR-LA...
-
Page 19: Chapter 4 Operation Method
Chapter 4 Operation Method Describes the operations of the Remote Controller and the extended functions of the PCR-LA AC power supply. Basic Operation of the Remote Controller Remote controller operation is designed to be as much as possible the same as that of the PCR-LA AC power supply control panel. How- ever, part of the operation and operation of new functions provided by the Remote Controller differ from that of the PCR-LA power supply control panel. - Page 20 Switching the Voltage Display Mode To switch the voltage display mode on the Remote Controller, press the Vrms/Vset (SHIFT, V) key in the Home Position. Change to the Current Display Mode To enter the current measurement mode, press the I key in the Home Position.
-
Page 21: Functions Extended By Using The Remote Controller
Functions Extended by Using the Remote Controller Some functions are added to the PCR-LA AC power supply by using the Remote Controller. This section describes how to use such func- tions. Power Line Abnormality Simulation This function allows the PCR-LA power supply to simulate a inter- ruption, fast voltage swell (pops), or fast voltage dip (dips) to conduct a power line abnormality simulation in the AC mode. - Page 22 Table 4-2 Descriptions of Parameters of the Setting Display Voltage change start time Time before starting the change. Time from the point that the waveform crosses the zero level to the starting point of abnormal change, such as voltage increase or decrease.
- Page 23 • N may lead or lag by one cycle depending on the setting of T1 to The start of N is at the next zero cross after T3 or T4 has ended. • Using the RUN and STOP keys, set the start and end of a power line abnormality simulation.
- Page 24 NOTE • A setting item can be changed in either the OUTPUT ON or OUTPUT OFF condition. However, the timing of RUN (sim- ulation start) is as described below. When T2 = T4 = 0: Before performing RUN, always set OUTPUT OFF.
-
Page 25: Chapter 5 Parts Names And Functions
Chapter 5 Parts Names and Functions Denotes the names of the switches, indications, and other parts of the RC03-PCR-LA, and describes their functions. Fig.5-1 RC03-PCR-LA (front view) RC03-PCR-LA Parts Names and Functions 5-1... - Page 26 [1] OUTPUT key Selects output ON/OFF. (Whenever this switch is pressed, output ON/OFF is switched alternately.) When output is ON, the LED at the right of the key lights up. Immediately after the POWER switch is turned ON, output is OFF. [2] ESC key Used to end or cancel each operation.
- Page 27 RANGE (SHIFT, 7) key Selects output voltage range. The “100V” indication in the RANGE area lights up when equip- ment is in the 100V range, “200V” lights up when it is in the 200V range. When the RANGE key is pressed, the range indication to be selected blinks.
- Page 28 [9] SIM key Selects the power line abnormality simulation mode. In the power line abnormality simulation mode, select the desired item using the T1, T2, T3, T4, N, and V (T3) keys to perform data setting. [10]RUN key Starts a power line abnormality simulation. During the simulation, the LED above the RUN key lights up.
- Page 29 [18]T1 to T4, N, and V (T3) keys, ms LED Used to select data to be set for a power line abnormality simulation. When time data is set, the “ms” LED lights up. [19]KEYLOCK indication Lights up in the key-lock mode. [20]ALARM indication In the event of alarm, this indication blinks, and an intermittent buzzer tone sounds.
- Page 30 5-6 Parts Names and Functions RC03-PCR-LA...
-
Page 31: Chapter 6 Maintenance
Chapter 6 Maintenance Describes the maintenance procedures for the RC03-PCR-LA. Cleaning If the panel surface becomes soiled, wet a piece of soft cloth with a water-diluted neutral detergent, and wipe the panel gently. • Be sure to turn the POWER switch of the PCR-LA CAUTION power supply OFF before performing maintenance. -
Page 32: Before Requesting A Repair
Table 6-1. Also, disconnect the Remote Controller from the PCR-LA AC power supply and check if the power supply alone operates normally. If it is not possible to recover a normal status, contact Kikusui distributor/agent to request repairs. Table 6-1 Troubleshooting Check Sheet... -
Page 33: Chapter 7 Specifications
Chapter 7 Specifications Contains a list of the specifications. Specifications The table below shows only the functions to be extended to the PCR- LA AC power supplies. Item Setting range Resolution Setting accuracy Setting functions Power line abnormality simulation x 1 ms 0 ms–... -
Page 34: Dimensions
Dimensions MAX 65 Unit: mm Fig.7-1 Dimension of RC03-PCR-LA 7-2 Specifications RC03-PCR-LA... -
Page 35: Hierarchy Of Remote Controller Key Operating Menus - - - - -
Appendix Contains the Hierarchy of Remote Controller Key Operating Menus, and the Power Line Abnormality Simulation Operation Setting Sheet. Hierarchy of Remote Controller Key Operating Menus [Home Position] Valid only for [OUTPUT OFF] AC/DC (SHIFT, 8) [Output voltage mode selection] [Enter] [Cancel] RANGE (SHIFT, 7) - Page 36 OUTPUT [Output ON/OFF] V MODE (SHIFT, V) [Voltage display mode selection] (Vset, Vrms) [Current display mode] (Arms) [Memory operation] 0–9 [Memory address selection] [Enter] [Cancel] Encoder [Memory address selection] [Enter] [Cancel] OUTPUT [Output ON/OFF] [Exits memory operation mode] KEYLOCK (SHIFT, 4) [Key-lock mode] OUTPUT [Output ON/OFF]...
- Page 37 V (T3) [V (T3) setting mode] [T2 setting mode] Numeric keys Numeric keys [V (T3) setting] [T2 setting] Encoder Encoder [V (T3) setting] [T2 setting] [T1 setting mode] [T1 setting mode] [T2 setting mode] [T3 setting mode] [T3 setting mode] [T4 setting mode] V (T3) [T4 setting mode]...
-
Page 38: Power Line Abnormality Simulation Operation Setting Sheet -
Power Line Abnormality Simulation Operation Setting Sheet PCR-LA Series TITLE DATE V(T3) MEMO MEMO A-4 Appendix RC03-PCR-LA... - Page 39 Index Change to the current display mode 4- Zero Cross - - - - - - - - - - - - - - - 4-6 ENTER wait - - - - - - - - - - - - - - 3-2 Frequency setting function - - - - 4-1 Hierarchy of remote controller key op- erating menus - - - - - - - - - - - A-1...
