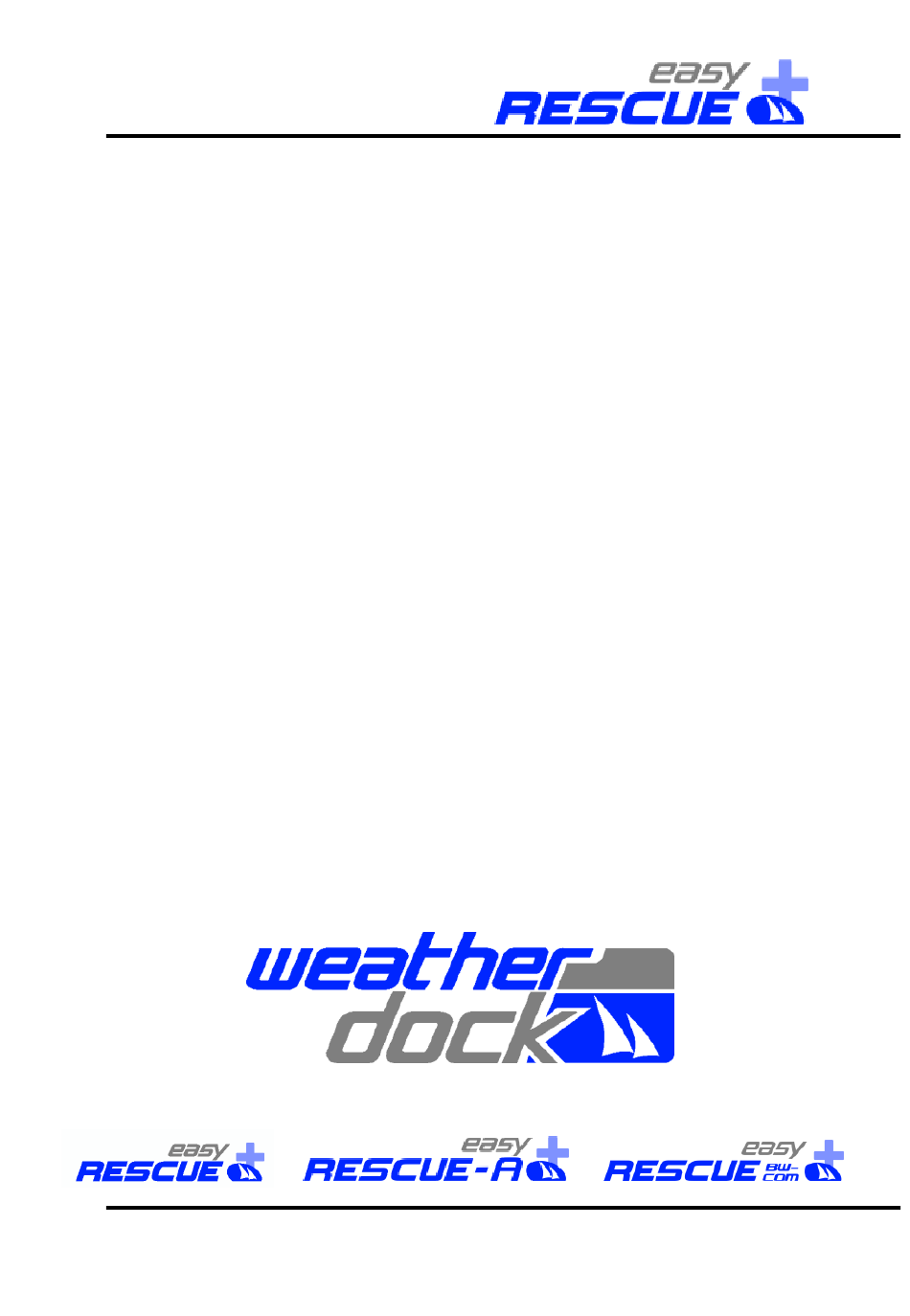

Page 1
„easyRESCUE" Manual
English
easyRESCUE
AIS-SART
Product No.: A040 / A049 / A040-BW-
COM
Rev. 2.1
Weatherdock AG
D-90431 Nürnberg
Tel. :+49 911 37 66 38 30
Fax: +49 911 37 66 38 40
www.weatherdock.com
Email: support@weatherdock.de
Weatherdock AG
Sigmundstraße 180
D-90431 Nürnberg
Tel.: +49 911 376638 30
www.weatherdock.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the easyRESCUE and is the answer not in the manual?

Questions and answers

Related Manuals for Weatherdock easyRESCUE

Summary of Contents for Weatherdock easyRESCUE

  • Page 1 Page 1 „easyRESCUE” Manual English easyRESCUE AIS-SART Product No.: A040 / A049 / A040-BW- Rev. 2.1 Weatherdock AG Sigmundstraße 180 D-90431 Nürnberg Tel. :+49 911 37 66 38 30 Fax: +49 911 37 66 38 40 www.weatherdock.com Email: support@weatherdock.de Weatherdock AG Sigmundstraße 180...

  • Page 2: Safety Precautions

    Use this device only together with certified equipment. Other equipment could damage the easyRESCUE. Clean this device with a clean, dry and soft blanket. Do not use aggressive or acid liquids and chemicals for cleaning. Do not open the device on your own.
  • Page 3 In accordance with a policy of continual development product improvement easyRESCUE hardware and software may be upgraded from time to time and future versions of the easyRESCUE may therefore not correspond exactly with this manual. When necessary, upgrades to the product will be accompanied by updates or addenda to this manual.
  • Page 4 ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Opening the device by a non-authorised person leads to loss of warranty! Please contact your dealer. Weatherdock AG Sigmundstraße 180 D-90431 Nürnberg Tel.:+49 911 37 66 38 30 www.weatherdock.de...
  • Page 5 UTOMATICALLY MUST BE INITIALISED BY THE USER IN CASE OF EMERGENCY LL TRADEMARKS MENTIONED IN THIS DOCUMENT ARE THE PROPERTY OF THEIR RESPECTIVE OWNERS COPYRIGHT © 2010, WEATHERDOCK AG. OPYING OF THIS OCUMENT AND GIVING IT TO OTHERS AND THE USE OR COMMUNICATION OF THE CONTENTS THEREOF...

  • Page 6: Table Of Contents

    IFE RAFT TECHNICAL DATA ............... 24 FAULT REMOVAL ............... 26 INFORMATION AND TIPS ............27 MAINTENANCE ................27 SUPPORT ..................30 EASYRESCUE – DATABASE AND LOGIN ........31 LICENSE AGREEMENT ..............32 WARRANTY ................. 32 Weatherdock AG Sigmundstraße 180 D-90431 Nürnberg Tel.:+49 911 37 66 38 30...
  • Page 7 Rev. 1.7 Author: Schuster, 15. March 2012 Rev. 2.0 Author: Knipp, 11. May 2012 Rev. 2.1 Author: Knipp, 17. Oct 2012 The easyRESCUE has been approved by the following authorities and institutions: BSH (German Federal Maritime and Hydrographic Agency) BSH / 4615 / 4361565 / 10...

  • Page 8: Short Description

    1 m above sea level (e.g. mounted at a life raft). If the easyRESCUE is directly above the sea level, the range is approx. 5-10 nautical miles assumed that the Weatherdock AG Sigmundstraße 180...
  • Page 9 It withstands drops from a height of 20 m into water. The storage time of an easyRESCUE with new batteries is 5 years. The battery pack can be replaced only by an authorized distributor.

  • Page 10: Activators And Indicators

    Page 10 of 36 ACTIVATORS AND INDICATORS Automatic activation (magnetic switch with ripcord) Flash-LED Button „TEST“ TEST-LED Button „ON“ ON-LED GPS-LED Weatherdock AG Sigmundstraße 180 D-90431 Nürnberg Tel.:+49 911 37 66 38 30 www.weatherdock.de...

  • Page 11: Activating Elements

    2.1.2. Button "TEST" Pressing the button „TEST“, the easyRESCUE enters the test mode. The device shuts down the test mode automatically after the test. If this button is pressed again for 3 seconds, the test mode will be terminated manually and the device is turned off.

  • Page 12: Indicators Gps Led

    The yellow LED with the marking "TEST" is blinking, when the easyRESCUE is in test mode. 2.2.4. Flash-LED The white LED is flashing, when the easyRESCUE is in “ON” or “TEST” state. It is used to support the search in darkness. Weatherdock AG Sigmundstraße 180...

  • Page 13: Operation Instruction

    By doing so the release protection breaks. Caution: The antenna extends with force. So do not hold the device close to your head. Press the button „ON“. Weatherdock AG Sigmundstraße 180 D-90431 Nürnberg Tel.:+49 911 37 66 38 30...
  • Page 14 Check that the GPS-LED should start flashing after 30-60 seconds after activation. If this LED does not start flashing, double check if the easyRESCUE is not covered by metal parts. It should have line of sight to the sky. If after 5 minutes it still gets no position fix the easyRESCUE starts sending empty position reports.

  • Page 15: Automatic Activation Via Water Contact

    2, antenna axis To deactivate the easyRESCUE push the slider to the top, so that the release protection breaks and you have access to both buttons (ON and TEST). Now press both buttons for more than 3 seconds and the LEDs stop flashing.

  • Page 16: Activation Via Magnetic Switch

    3.1.3. Activation via magnetic switch only for version A040-BW-COM The easyRESCUE-BW-COM is suitable for the use with automatic life vests or in life rafts. The magnetic switch is built into the upper edge of the device. The magnet sensor is internally arranged and on the outside a small magnet retaining plate with a ripcord.
  • Page 17 Spring hook Magnet Retaining plate To deactivate the easyRESCUE push the slider to the top, so that the release protection breaks and you have access to both buttons (ON and TEST). Now press both buttons for more than 3 seconds and the white Flash-LED and the ON LED stop blinking.

  • Page 18: Testing"Test" The Easyrescue

    3.2. Testing"TEST" the easyRESCUE You should test the easyRESCUE regularly. It is sufficient to test it every year or every half year. More frequent tests reduce battery capacity. The battery is able to be fully operational for 5 years with in total 30 test procedures.

  • Page 19: Sigmundstraße

    Push the slider to the bottom until the test button is free. Press the button “TEST” and take care that the easyRESCUE has got line of sight to the sky. This ensures best GPS reception conditions. The TEST-LED starts flashing every 2 seconds. As soon as a GPS position is available the GPS-LED starts flashing too.
  • Page 20 With an AIS receiver (e. g. easyAIS) connected to a chart plotter or laptop with navigational software you can check the transmission of the easyRESCUE. Normally the chart plotter or navigational software shows a ship symbol or a circle on the display.
  • Page 21 30 tests were conducted. (The LED is also blinking, if the easyRESCUE was activated by pressing the ON-button before) Green GPS-LED is continuously The easyRESCUE has got a on for 5 sec position fix. The easyRESCUE could not get Green GPS-LED is blinking a position fix within 5 minutes.

  • Page 22: Installation Tips

    Page 22 of 36 INSTALLATION TIPS 4.1. Bracket With the bracket you can easily fix the easyRESCUE. A lanyard prevents the device from drifting away, when dismounted from the holder. This is the reference point of the antenna, from where you calculate the height over sea level.

  • Page 23: Life Raft

    4.2. Life raft With the lanyard, which is included in the bracket, you can fix the easyRESCUE as high as possible at the life raft. Please ensure that the antenna height is more than 1 m above sea level. It is also possible to mount the easyRESCUE on the top of a pole with a fixture or the lanyard.

  • Page 24: Technical Data

    5 years (as of bat. manuf. date) Operation temperature range -20°C to +55°C Storage temperature range -30°C to +70°C Display 3 LEDs and a „Flash"-LED Activators 2 buttons, magnetic switch Weatherdock AG Sigmundstraße 180 D-90431 Nürnberg Tel.:+49 911 37 66 38 30 www.weatherdock.de...
  • Page 25 Unit-ID: (same as in Msg. 1), Text : "SART ACTIVE" in distress ("ON"-state) or "SART TEST" in test mode IEC 61097-14, IEC 60945, ITU-R Standards M.1371-3, IMO Res. MSC.246(83), IEC 61108-1 Weatherdock AG Sigmundstraße 180 D-90431 Nürnberg Tel.:+49 911 37 66 38 30 www.weatherdock.de...

  • Page 26: Fault Removal

    (max. 30) Please check the date of expiry on the label. If expired, send the easyRESCUE to your distributor for battery exchange. Only distributors are allowed to that! Weatherdock AG Sigmundstraße 180 D-90431 Nürnberg Tel.:+49 911 37 66 38 30...

  • Page 27: Information And Tips

    96 h in case of distress. Please make sure that the easyRESCUE has line of sight to the sky to ensure proper GPS-reception. This is why the tests should be conducted aloft.
  • Page 28 This is due to the reason that the batteries are not available to the public and other elements have to be changed, too (e.g. seals!). Weatherdock AG Sigmundstraße 180 D-90431 Nürnberg Tel.:+49 911 37 66 38 30...
  • Page 29 As a general rule the batteries must NOT be given to the home garbage. As a consumer you are obliged to give used batteries to proper disposal. Weatherdock AG Sigmundstraße 180 D-90431 Nürnberg Tel.:+49 911 37 66 38 30...

  • Page 30: Support

    Page 30 of 36 9. SUPPORT Although WEATHERDOCK strives for accurcy in all its publications, this material may contain errors or omissions, and is subject to change without prior notice. WEATHERDOCK shall not be made liable for any specific, indirect, incidental or consequential damages as a result of its use.

  • Page 31: Easyrescue - Database And Login

    On a voluntary basis, you can store information concerning your boat, which are relevant from you as an owner of an easyRESCUE. With your data you create an information platform which helps the emergency organization to do the right things - for example, in cases of diabetes or pharmaceutical intolerance.

  • Page 32: License Agreement

    LIEU OF ALL OTHER WARRANTIES EXPRESS OR IMPLIED OR STATUTORY INCLUDING LIABILITY ARISING UNDER WARRANTY MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE STATUTORY OR OTHERWISE IN NO EVENT SHALL WEATHERDOCK BE LIABLE FOR ANY Weatherdock AG Sigmundstraße 180 D-90431 Nürnberg Tel.:+49 911 37 66 38 30 www.weatherdock.de...
  • Page 33 RESPONSIBILITY OF THE OPERATOR OF THE BOAT TO OPERATE THE BOAT IN A SAFE MANNER MAINTAIN FULL SURVEILLANCE OF ALL BOATING CONDITIONS AT TRX2 ALL TIMES AND NEVER BECOME DISTRACTED BY THE TO THE EXCLUSION OF SAFE OPERATING PRACTICES Weatherdock AG Sigmundstraße 180 D-90431 Nürnberg Tel.:+49 911 37 66 38 30 www.weatherdock.de...
  • Page 34 · 14, 16, 18 Deactivation · 12 Dimension · 25 magnetic switch · 17 MAINTENance · 28 Manual activation · 13 easyRESCUE – database · 32 MMSI · 3 fault removal · 27 ON LED · 12 Flash-LED · 12 Operation · 13 Weatherdock AG Sigmundstraße 180...
  • Page 35 Warranty · 33 Supported AIS messages · 26 water contact · 15 Technical Data · 25 Yellow „TEST-LED · 22 TEST · 11, 19, 20 TEST LED · 12 Weatherdock AG Sigmundstraße 180 D-90431 Nürnberg Tel.:+49 911 37 66 38 30 www.weatherdock.de...
  • Page 36 Page 36 of 36 Weatherdock AG Sigmundstraße 180 D-90431 Nürnberg Tel.:+49 911 37 66 38 30 www.weatherdock.de...
