USER GUIDE
KeyMander 2 Keyboard/Mouse Adapter plus Controller Crossover
GE1337P2
Package Contents
1 x KeyMander 2
1 x Micro USB Cable
1 x Quick Start Guide
1 x Warranty Card
Note: an optional micro USB power supply may be required with certain RGB keyboards that have a larger than normal current draw.
System Requirements:
PS4™: Sony Playstation brand PS4 wireless controller connected via included micro USB cable
•
PS3™: Sony Playstation brand PS3 wireless controller connected via a mini USB cable (Sony DualShock 3
•
SIXAXIS controller is recommended)
Xbox One®: Microsoft brand Xbox One wireless controller connected via included micro USB cable
•
Xbox 360®:Microsoft brand Xbox 360 wired controller
•
Nintendo Switch™: Nintendo Switch connected to Switch dock (not included)
•
Android 6.0+ device or iOS 10+ device supporting Bluetooth 4.1+
•
USB Keyboard and USB Mouse*
•
*Required branded game controllers not included
Hardware Review

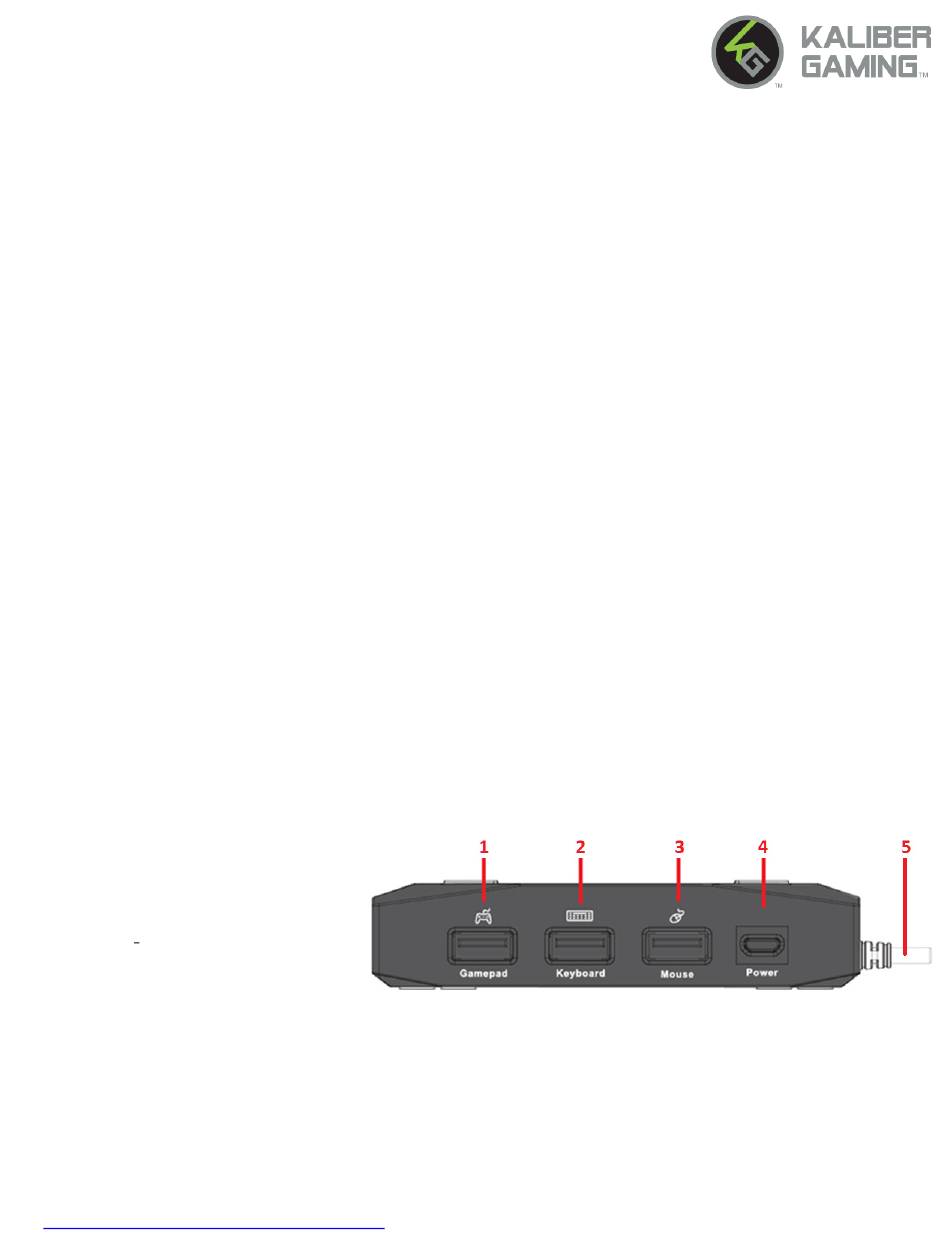

Front View
1. Gamepad USB Port
2. Keyboard USB Port
3. Mouse USB Port
4. Power Port (optional)
Note: GE1337P2 KeyMander 2 will
function without additional power,
however some RGB keyboards such as those with built-in USB hubs, etc. may require more power than
KeyMander 2 can provide. If the KeyMander 2 LED indicator is flashing red or a low voltage warning
appears on the K2 app, connect a micro USB cable between the KeyMander 2's Power port and a USB
power supply (minimum 1A output) such as a charger for a tablet or smartphone.
5. Game Console USB connector
*Some gaming keyboards may have accessories that require more power than the KeyMander 2 is able to supply. Please
visit
http://www.IOGEAR.com/product/GE1337P2
for more information.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Kaliber Gaming KeyMander 2 GE1337P2
Summary of Contents for Kaliber Gaming KeyMander 2 GE1337P2
-
Page 1: User Guide
USER GUIDE KeyMander 2 Keyboard/Mouse Adapter plus Controller Crossover GE1337P2 Package Contents 1 x KeyMander 2 1 x Micro USB Cable 1 x Quick Start Guide 1 x Warranty Card Note: an optional micro USB power supply may be required with certain RGB keyboards that have a larger than normal current draw. System Requirements: PS4™: Sony Playstation brand PS4 wireless controller connected via included micro USB cable •... - Page 2 Top View Button 1: Bluetooth Pairing Button LED Indicator Button 2: Mode Button K2 App The K2 App is required to use the KeyMander 2, and is designed to download and manage your game profiles and help make configuration changes as needed. A game profile consists all of your mouse settings and keyboard mappings, and formats the profile for your console type (Nintendo Switch, PS4 or Xbox One.
- Page 3 Note: Xbox One users MUST connect to a USB on the back of the console. 5. To activate the KeyMander 2, power on the console. K2 App Installation and Setup Image 1 Image 2 Image 3 1. Download and install the K2 App from the App Store or Google Play store. Type in KeyMander 2 into the search bar and it should find the K2 app for you to download.
- Page 4 PS4 Console Setup For PS4 Pro or PS4 Slim consoles using the DualShock 4 Slim controller, you will need to change the controller’s communication method from Bluetooth to USB in the PS4 settings menu. Go to Settings > Devices > Controllers > Communication Method and select Use USB Cable.
- Page 5 Basic Operation – Movement & Aim/Look Layout (PS4) Basic Operation – Default Keyboard Functions Layout (PS4)
- Page 6 Basic Operation – Movement & Aim/Look Layout (Xbox One) Basic Operation – Default Keyboard Functions Layout (Xbox One)
- Page 7 In-Game & K2 App Settings Before you begin, there are four important settings that must be set properly for best mouse performance with KeyMander 2. Open the K2 App and select the default Gamepad profile for your game system, or download a preconfigured game profile for your game from the Game Center tab of the K2 App, then follow the instructions below.
- Page 8 Note: A properly set deadzone is normally the step where the aim/look view begins moving on its own in any axis. That means for example, if setting the X axis to 16 causes the aim/look view to begin slowly moving to the right, the correct X axis deadzone setting is 16.
- Page 9 Customizing Profiles The preloaded profile is for PlayStation 4 only. If you are a Nintendo Switch or Xbox One user, please select a profile that corresponds to your game system. These profiles are console specific but not game-specific, so once the proper default profile for your console is loaded the settings can be adjusted for the specific game you are playing.
- Page 10 Turn Speed The Turn Speed slider adjusts the amount of acceleration that KeyMander 2 adds when moving your mouse. A setting of 0 on the slider is equal to zero acceleration added by KeyMander 2. Settings of 1-50 add progressively greater amounts of aim acceleration to compensate for games with a slow aim/look mechanic.
- Page 11 Microphone Mode KeyMander 2’s Microphone setting allows you turn on or off the microphone function while you play, and is very useful for headsets without a microphone mute function. The default setting uses the F9 key to toggle the microphone on/off, but can also be programmed for push-to-talk functionality using the “Hold”...
- Page 12 Macro Mode The Macro Mode (F11 key) allows a single key stroke or mouse click to perform multiple actions. For example you can set: “UP, DOWN, LEFT, RIGHT, X, O” to execute just by pressing the Y key. To create a macro select the Macro tab and then press the “+ Create Macros”...
- Page 13 To Restore your game profiles: 1. Press the Library tab at the bottom of the K2 App screen. 2. Press your account icon in the upper left hand corner of the app screen. 3. Press the Restore My Last Update icon. Note: the Restore function adds any profiles missing from your device since your last Backup, and overwrites any current profiles on your device with the version from your last Backup.
- Page 14 The device list will show the GE1337P2 if connected to the PC. Click next. • 6. After upgrade is complete click Finish and unplug the KeyMander 2 from the PC. 7. Reconnect the KeyMander 2’s USB to the PC, then press and hold BTN 1 and BTN 2 together for approximately 8 seconds to perform a factory reset to complete the firmware update.
- Page 15 headshots) at the cost of having to move your hand a foot or more to turn a 360° rotation. In the older days of first-person-shooters, gamers playing titles like Counter Strike on standard definition monitors might have mouse resolutions set as low as 100 or 200 dpi, so they can snap off a headshot (without a scope) like it’s nothing.
- Page 16 aim/look sensitivity, you probably noticed that by moving slowly you rotated 360 degrees or more with a short swipe, but by moving very fast you rotated only a short distance. That poor movement you just experienced is NOT mouse lag, but rather the game's turn speed limit. The easiest way to understand what is happening is to equate the maximum turning speed to distance turned (rotated) in a period of time.
- Page 17 very tiny mouse movements are suppressed. Having too large a deadzone will cause a floaty or accelerated feeling (pixel skipping), and can also cause a rough, “stair-step-like” movement in some games that reduces accuracy when moving the mouse diagonally. Some games also include a deadzone setting in the Options Menu, so be sure to check it and set accordingly for best performance.
-
Page 18: Troubleshooting
Troubleshooting The following is a list of common issues and how to solve them. Micro USB cable problems In the event your system is not working with the supplied micro USB cable during initial setup, you can use your own micro USB charge and sync cable for testing. If the system works normally after performing this test, replace the micro USB cable. - Page 19 Technical Support: If you experience problems or have questions about setting up and using KeyMander, several support options are available. For immediate live assistance, telephone and on-line chat are available. You can also email us for less urgent assistance. Phone: 866-946-4327 x4862 Toll Free: 866-9-IOGEAR (866-946-4327) Live Chat: www.iogear.com/keymanderchat...
