Summary of Contents for Soliom S60

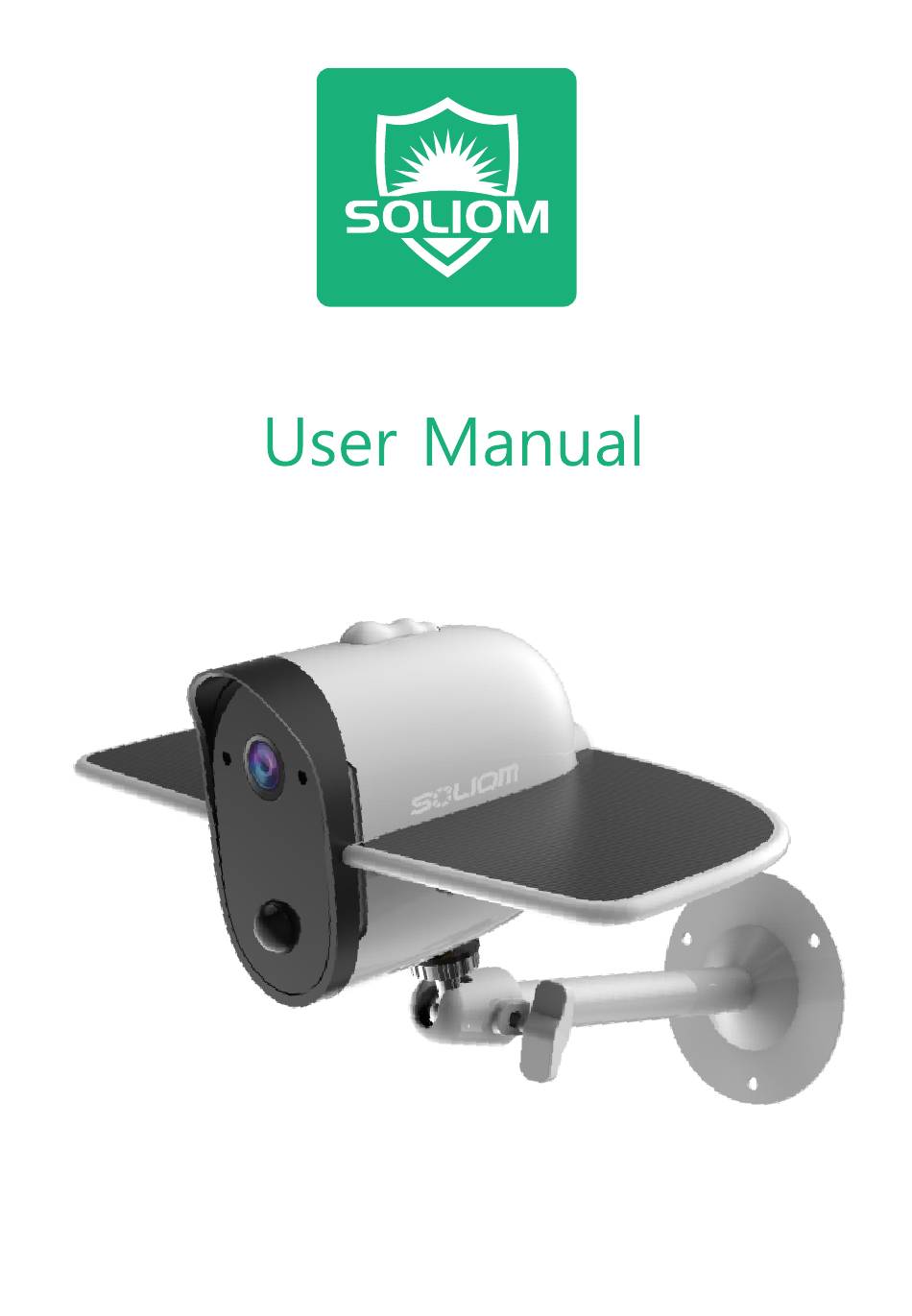

- Page 1 Outdoor Wireless Solar Camera Model: S60...
- Page 2 5-12 13-16 17-25...
- Page 3 Warm tips before you go: 1. Soliom S60 can only be set up with 2.4g Wi-Fi network. (It's ok to use Cell phone 4G data to live viewing it after the camera was set up with 2.4g Wi-Fi network firstly.) 2.
- Page 4 Solar Panel Bracket Silica gel cover Power Button...
- Page 5 Before Installation Charging Please charge the camera about 6-8 hours by plugging it into a power source using the provided USB cable. After connecting the camera with App, the App will indicate the batter y status. (There's no indicator to show charging status from the camera) Inser t SD card Please install the microSD card, then format the SD card to...
- Page 6 3 x Expansion Screws 2 x Extra Machine 1 x Extra Silica 1 x Luminescent Screws Gel Cover Warning Sticker 1 x Screwdriver 1 x Reset Pin 1 x USB Cable Outdoor Wireless Solar Camera Model: S60 1 x User Manual...
- Page 7 Wi-fi signal strength on your phone is good. 1. Download the App (works only with iOS & Android devices) Please locate the“SOLIOM” in your Google Play store or App store to download the soliom App.
- Page 8 In-App Setup 3. Pairing the camera with the App 1) Click "Add a device" and then choose "Setup device", click "Yes". 2) Input the CORRECT WiFi password of your router, if you input a wrong password you will not be able to connect it successfully. Click the eye icon to double confirm the password you entered is correct Your own wifi name...
- Page 9 In-App Setup 3) Enter into the “search device” page, make sure to turn up you phone’s volume to the Maximum, you will hear the following voice : “Pairing Information Received”. What should you do if you can not add the camera to the APP successfully? 1.
- Page 10 In-App Setup 5) Congratulations! Now you can live view the camera on your phone anytime and anywhere. Important: Please turn on Cloud storage to sync time of Soliom app with your phone or tablet device.
- Page 11 In-App Setup If you're unable to pair the camera,Please check below suggestions: 1. Please reset the camera using the pin to reset the camera to default after you fully charged the camera. 2. Please turn up your phone volume to the maximum,since the camera pair through sound wave.
- Page 12 In-App Setup 4. How to Share Your Camera And Password with More Users Share QR code After you finish the connection with the App, click and choose “Share QR code” . Other users need to download the App first, and then scan the below QR code.
- Page 13 In-App Setup Push Mode Silence: You could choose to mute all incoming notification or call in, all motion triggered videos will be saved properly to cloud storage or Micro sd card. Notification: Camera will receive notification and banner on your phone with a “Ding” sound. Call in: Camera will receive call in sound and banners the same time with a “...
- Page 14 In-App Setup Micro sd card Video playback Please find the orange color for the video event and use two fingers to zoom out the timeline and then put the line to the head of the orange color and wait for the playback Camera HD VIDEO Zoom out to playback...
- Page 15 Physical Installation Check your camera signal strength If not satisfied with video smoothness, Check in App and signal strength in App is not strong, we would suggest adding wifi extender between the Router and the camera. Camera WiFi extender Router Recommended height to install the camera We suggest installing the camera about 8ft.
- Page 16 Physical Installation Adjust the bracket on the wall and then mark 3 holes for mounting. Fix the bracket to the wall by expansion screws. Adjustable （Option for indoor use)
-
Page 17: Technical Specifications
Physical Installation Technical Specifications Image Quality Resolution 1080P Specifications Lens angle FOV 160° Lens H.264 Video format Frames per Video 15fps second Specifications SD card 8GB-Max 64GB support Built-in speaker Output Audio Intput Built-in microphone Communications 2.4GHz WiFi Battery capacity 4000mAh Standby time Max 6 months... -
Page 18: Led Status
Physical Installation System Android 2.3 above/ iOS 7.0 above Suppport PIR angle 110° PIR range 13ft-15ft Up to 32ft Range Night Vision Continuously daytime Max 12 hours recording time Working time for Continuously night vision fully charged Max 8 hours recording time Waterproof IP grade... - Page 19 Detailed App Instructions Click the , the camera will enter into to the standby mode and now you can live view your camera. Camera HD VIDEO Impor tant: Please turn on the cloud storage and sync your camera time with your Phone's time.
- Page 20 Wifi signal strength and then re install it to the camera body.Or contact Soliom support team for a replacement Tips: Please make sure your camera at care@soliom.net All friendly customer has a full bar of wifi strength to service staffs are ready to assist you.
- Page 21 Detailed App Instructions Camera Screenshot: Click to screen capture and pictures will be saved to the album. Manual Recording: Click to manually record and the videos will be saved to Album Setting: Click to inter into device settings. ( Check page 19 for more details) Voice: Click to mute the sounds from...
- Page 22 Detailed App Instructions SD Card Setting 1) Please turn on the cloud storage so that you can sync the camera time with your phone. 2) Please format the micro sd card after you installed it.The camera doesn't support plug and play.So please make sure to power off the camera and then install your card.
- Page 23 Detailed App Instructions Environment You can choose to set it as Normal, back light compensation, night IR, High light compensation or Dynamic according to your actual light environment of installation place. Camera HD VIDEO Album Switch Cruise Voice Settings PIR Detection You can set the PIR sensitivity as Disabled,Low,Medium and High.
- Page 24 Detailed App Instructions Camera HD VIDEO Album Switch Cruise Voice Settings Dormancy Time Tips: This is the time you could set for the video length recorded to micro sd card. Camera HD VIDEO Album Switch Cruise Voice Settings...
- Page 25 Detailed App Instructions LED mode When you choose Enable,the Blue LED will light up to indicate when you operate the camera as it should be.When you choose Disabled,the Blue LED will not light up to indicate the operations or trigger motions.It is recommended to set it as the default Camera HD VIDEO Album...
- Page 26 Detailed App Instructions Device Name and Password: You can set a desired name for your camera and reset the password to protect it. Camera HD VIDEO Album Switch Cruise Voice Settings...
- Page 27 Detailed App Instructions F A Q s Q1: Why do I fail to connect the camera to the App by sound wave? A: 1. Please reset the camera by the pin included. 2. Please make sure the camera is powered on and there will be voice prompts that indicates it.
